Boeing 737-600 - Page 1834

INBD
INBD
0.5 INCH (12.7 mm)
(EXAMPLE)
SIDE OF BODY
(OPTIONAL METHOD)
SIDE OF BODY
(EXAMPLE)
SEAM TAPE
WATERSEAL
TAPE
FLOOR
PANEL
SEALANT
CREASE
BEAM
0.5 INCH (12.7 mm)
(EXAMPLE)
WATERSEAL
TAPE
FLOOR
PANEL
2180193 S0000481182_V2

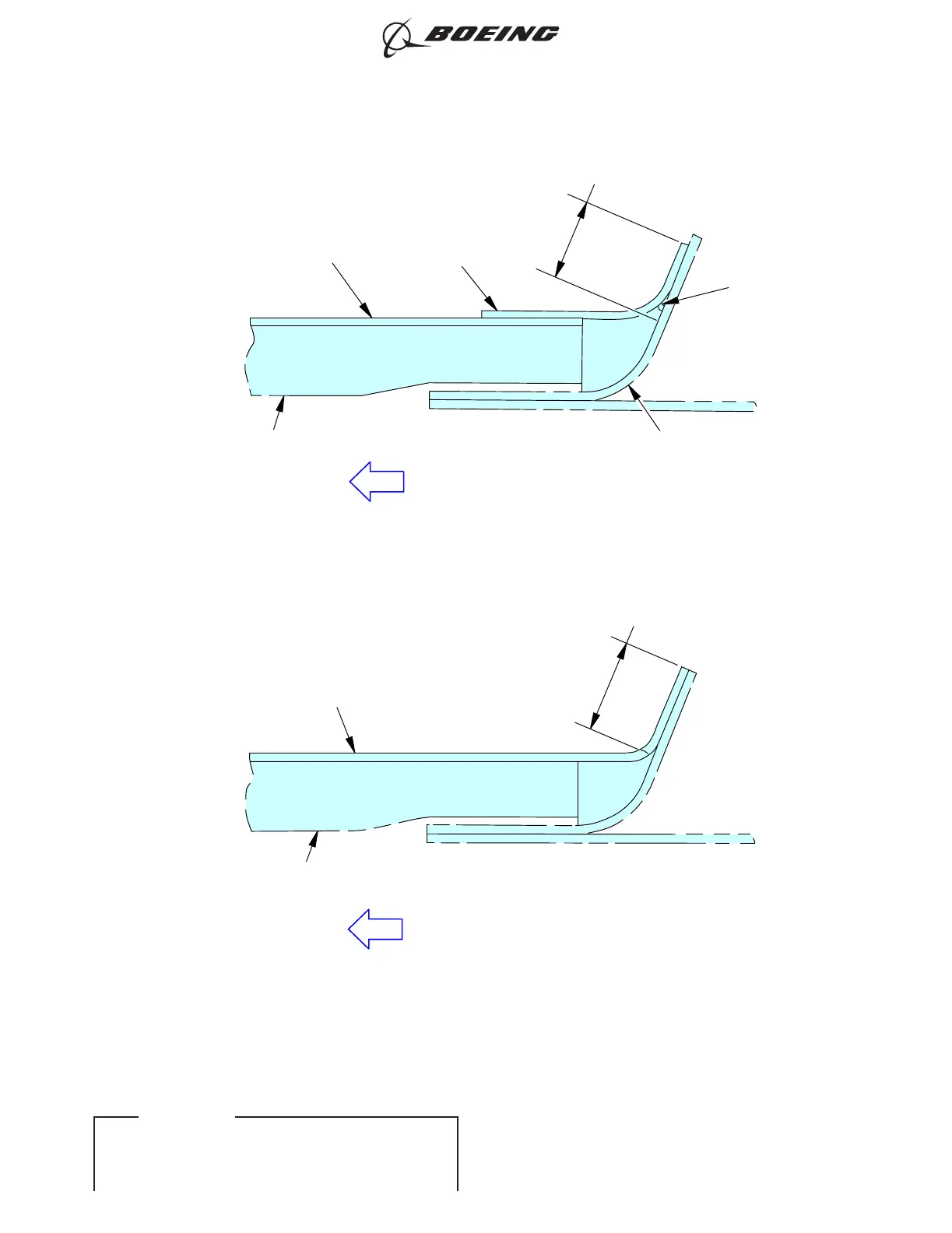

Water Seal Tape Application
Figure 801/53-21-00-990-802 (Sheet 6 of 7)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
53-21-00
Page 813
D633A101-ILF Oct 15/2015
