INTEGRAL GUTTER FLOOR PANEL
(EXAMPLE)
1.5 INCH (38.1 mm)
(EXAMPLE)
DOORWAY GUTTER
(EXAMPLE)
GUTTER
SEALANT
FLOOR
PANEL
WATERSEAL
TAPE
SEAM
TAPE/PATCH
1.5 INCH (38.1 mm)
(EXAMPLE)
SEALANT
FLOOR
PANEL
WATERSEAL
TAPE
SEAM
TAPE/PATCH
2180161 S0000481181_V2

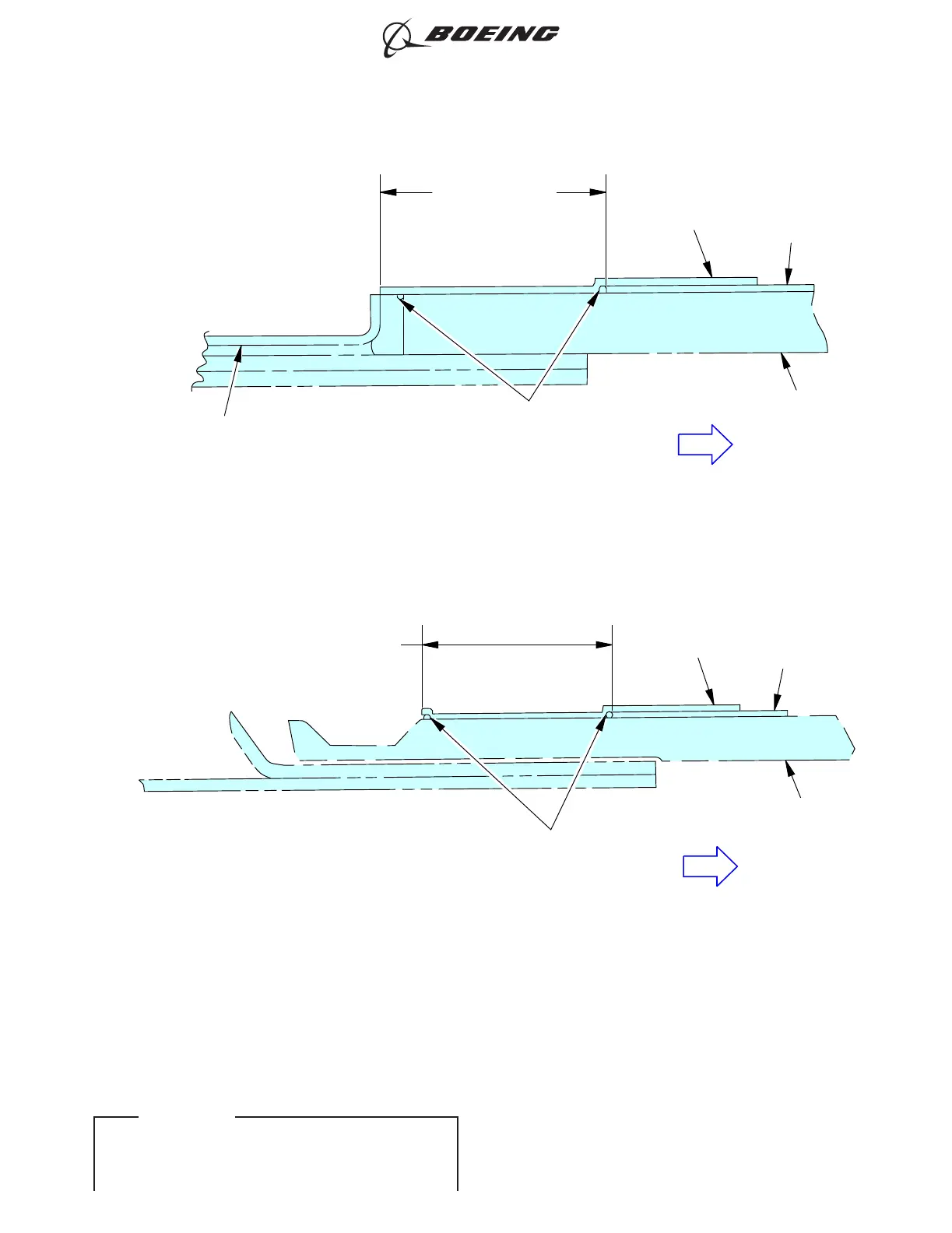

Water Seal Tape Application
Figure 801/53-21-00-990-802 (Sheet 5 of 7)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
53-21-00
Page 812
D633A101-ILF Oct 15/2015
