Boeing 737-600 - Page 1965

FWD
EROSION
AREA
STA
143.6
STA
138.6
NOSE RADOME
LIGHTNING DIVERTER
STRIP (EXAMPLE)
SURFACE
DIVERTER STRIP INSTALLATION
AFTER APPLICATION OF FIRST LAYER
OF BMS 10-21, TYPE II OR TYPE IV
VERTICAL
BAND
BMS 10-72 DECORATIVE COATING (PRIMER AND TOPCOAT) OR AMS3095 EXTERIOR
GLOSS PAINT
BMS 10-21 TYPE II ANTI-STATIC COATING OR BMS 10-21 TYPE IV ANTI-STATIC COATING
LEGEND:
2246034 S0000503251_V4

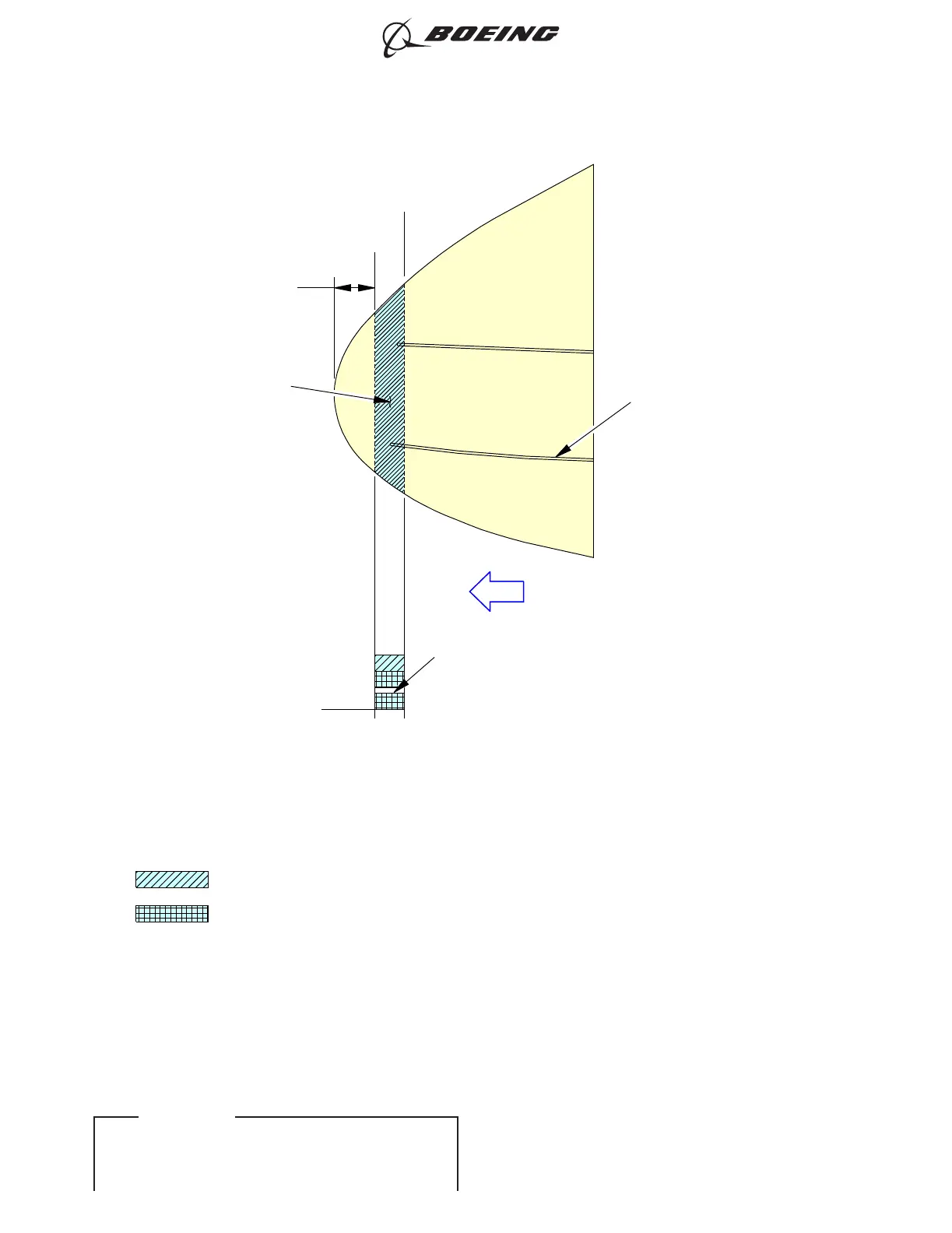

Nose Radome Painting - STA 138.6 to STA 143.6
Figure 703/53-52-00-990-808
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
53-52-00
Page 717
D633A101-ILF Oct 15/2018
