FWD
EROSION AREA
STA
143.6
STA
138.6
NOSE RADOME
LIGHTNING DIVERTER
STRIP (EXAMPLE)
BMS 10-60 TYPE II ENAMEL COATING
BMS 10-103 TYPE I PRIMER
BMS 10-21 TYPE II ANTI-STATIC COATING OR BMS 10-21 TYPE IV ANTI-STATIC
COATING
DIVERTER STRIP
INSTALLATION AFTER
APPLICATION OF BMS
10-21, TYPE II OR TYPE IV
SURFACE
LEGEND:
VERTICAL
BAND
2830089 S0000656457_V1

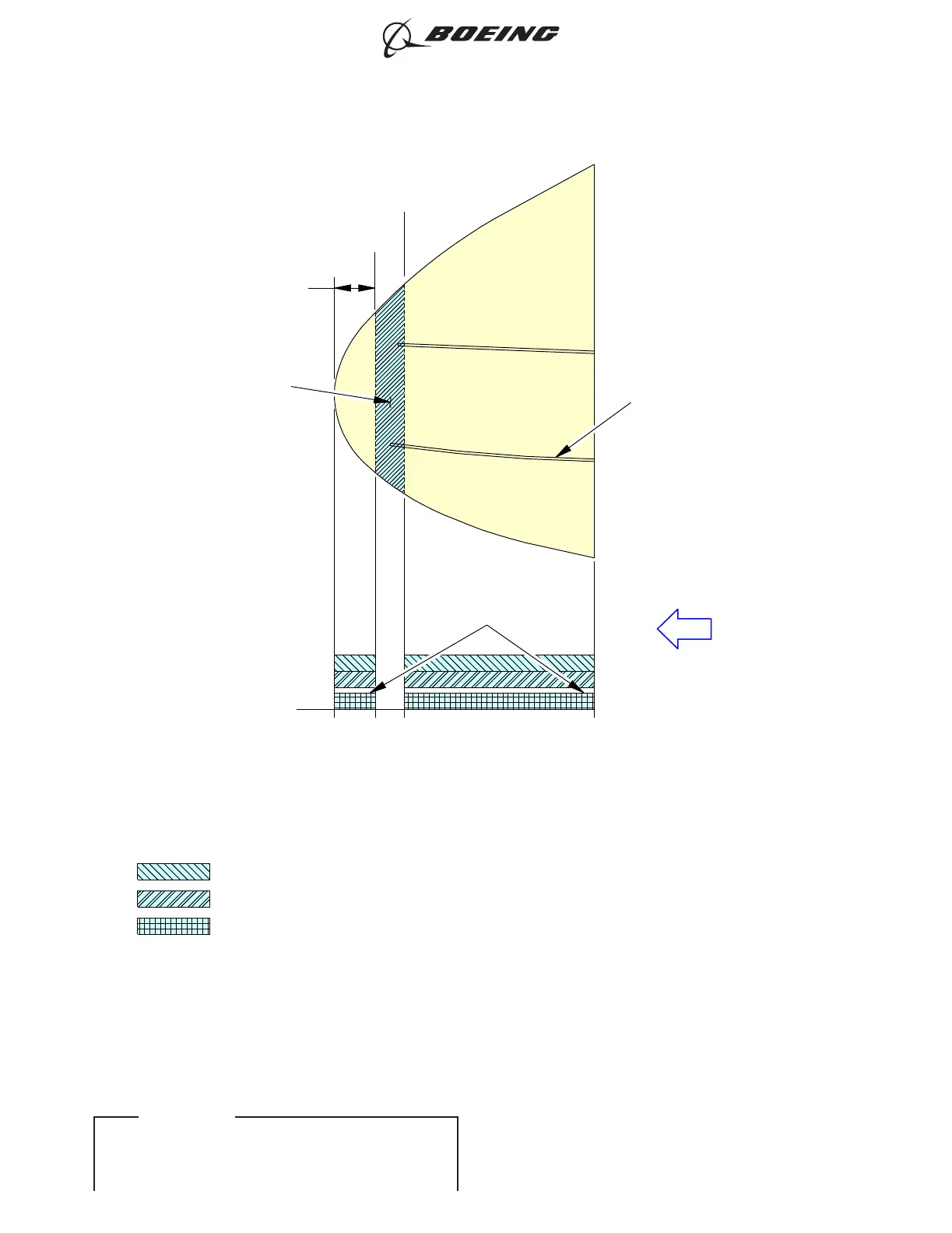

Nose Radome Painting - Nose Tip to STA 138.6 and STA 143.6 to Aft Edge - With Protective Boot
Figure 704/53-52-00-990-814
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
53-52-00
Page 718
D633A101-ILF Oct 15/2018
ECCN 9E991 BOEING PROPRIETARY - Copyright © Unpublished Work - See title page for details
EFFECTIVITY
ILF ALL
