CONTROL STAND
SPEED BRAKE
CONTROL LEVER
CONTROL
STAND
FRAME
CONTROL
STAND
FRAME
NO. 1
THRUST
LEVER
FLAP LEVER
AND CABLE
DRUM
[41] BEARING
WIRE
GUIDE
FLAP
INDICATOR
ASSEMBLY
NO. 2
START
LEVER
NO. 1
START
LEVER
CONTROL
STAND
FRAME
NUT
FLAP
INDICATOR
ASSEMBLY
CONTROL
STAND
FRAME
CUP
WASHER
STABILIZER
TRIM CHAIN
GUARD
[37] LONG
BUSHING
[35] BUSHING
[34] BEARING
[36] CLAMP UP
BUSHING
[31] STABILIZER
TRIM SPLINED
CONTROL
SHAFT
[38] BEARING
[32] LONG SHAFT
[33] CLAMP UP
BUSHING
[42] SHORT SHAFT
[40] STABILIZER
TRIM CHAIN
SPROCKET
[39] CHAIN
NO. 2
THRUST
LEVER
G29595 S0006583063_V2

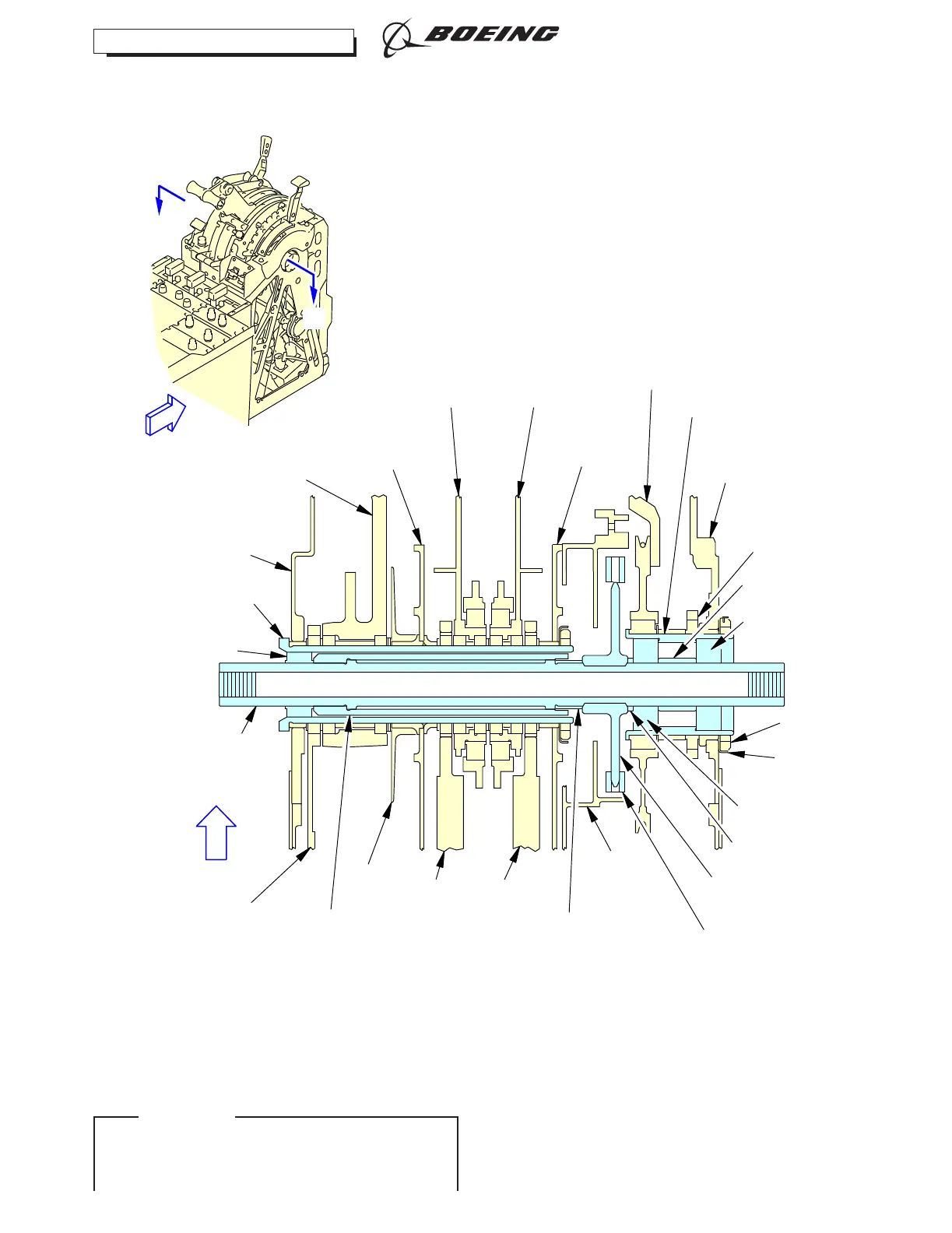

Control Shaft Components Installation
Figure 402/76-11-02-990-802-F00 (Sheet 2 of 2)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
CFM56 ENGINES (CFM56-7)
76-11-02
Page 413
D633A101-ILF Jun 15/2019
