F
(EXAMPLE)
[11] WASHER
(3 LOCATIONS)
[12] SCREW
(3 LOCATIONS)
[10] CURRENT
TRANSFORMER
[9] WASHER
[8] SCREW
[7] TERMINAL STUD
(3 LOCATIONS)
[6] BUSHING
(3 LOCATIONS)
WIRES
(3 LOCATIONS)
ELECTRICAL
CONNECTOR
EXTERNAL POWER CURRENT TRANSFORMER,
T378 HAS ONE WIRE
G11315 S0006566219_V2

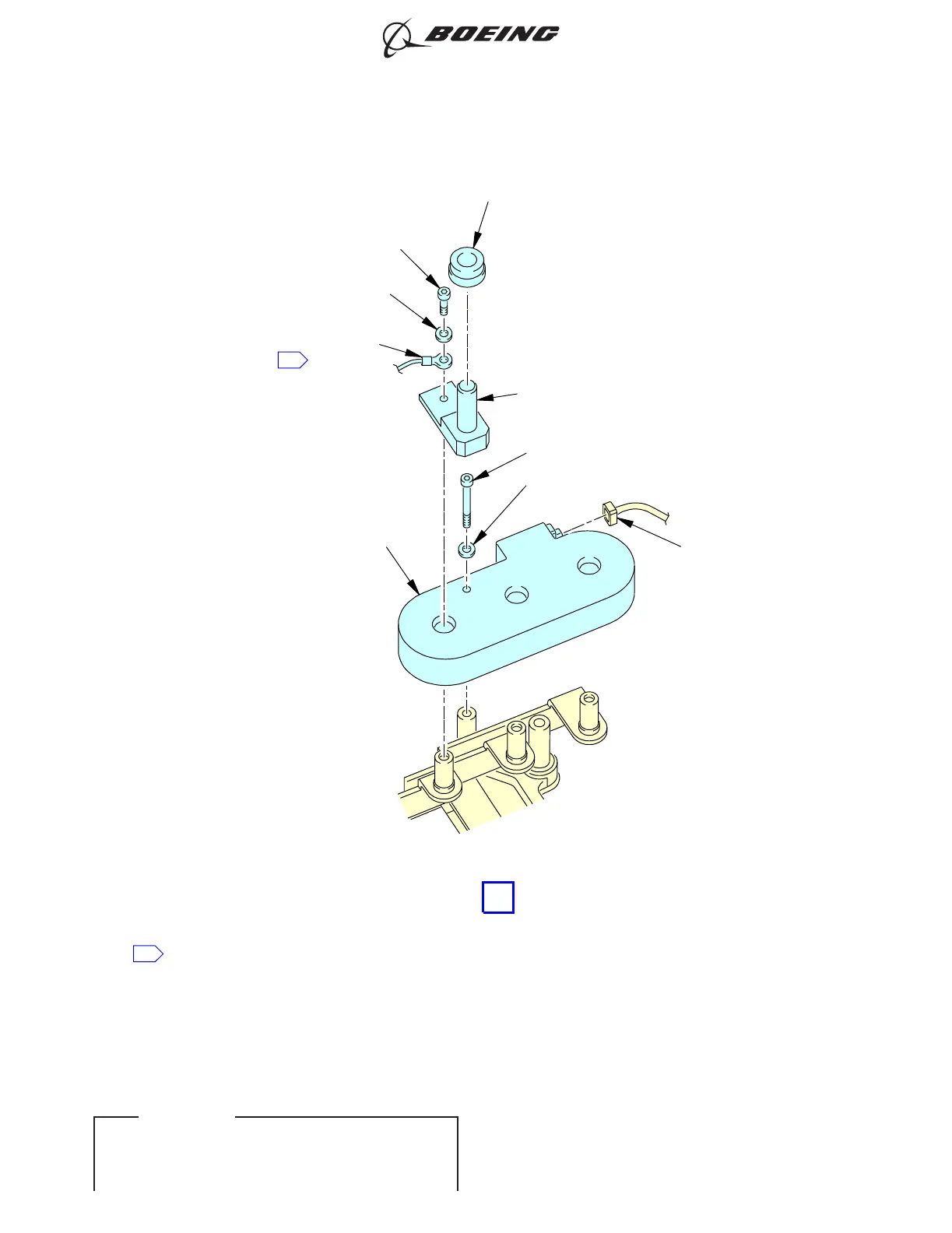

Current Transformer Installation
Figure 401/24-21-71-990-801 (Sheet 5 of 6)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
24-21-71
Page 408
D633A101-ILF Jun 15/2019
