(EXAMPLE)
RETAINER
HOUSING
SEAL
SPACER
[36] UPPER CENTER SEAL
CONTROL STAND
[26] SPACER
[38] SCREW
(4 LOCATIONS)
[34] SEAL RETAINER
[33] LEFT SEAL
[25] SPACER
[37] SEAL
RETAINER
[39] RIGHT SEAL
[27] SPACER
[32] SCREW
(4 LOCATIONS)
[31] SEAL
RETAINER
[35] SCREW
(3 LOCATIONS)
(VIEW IN THE DOWN DIRECTION)
2358416 S0000538951_V1

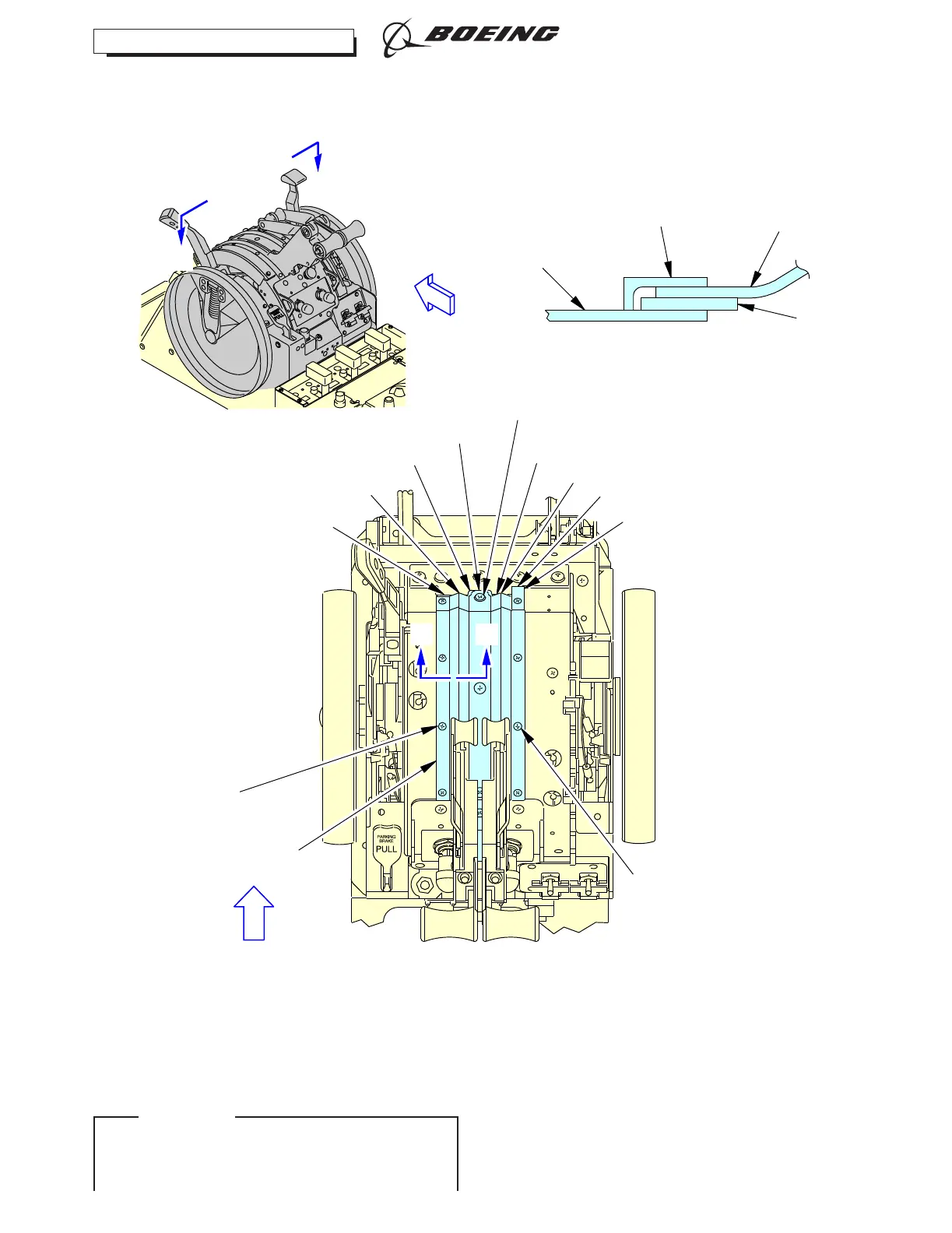

Control Stand Seal, Spacer, and Retainer Installation
Figure 402/76-11-03-990-802-F00 (Sheet 3 of 3)
