Boeing 737-600 - Page 2125

A
A
B
FWD
E
E
B
F
W
D
C
D
BRAKE
SHAFT
TLA RESOLVER
AND BRAKE
ASSEMBLY
(ENGINE 1)
TLA RESOLVER
AND BRAKE
ASSEMBLY
(ENGINE 2)
THRUST LEVER
CONNECTING
ROD
CONTROL ROD
FORWARD
ACCESS DOOR, 112A
FORWARD ACCESS DOOR
G37229 S0006583091_V2

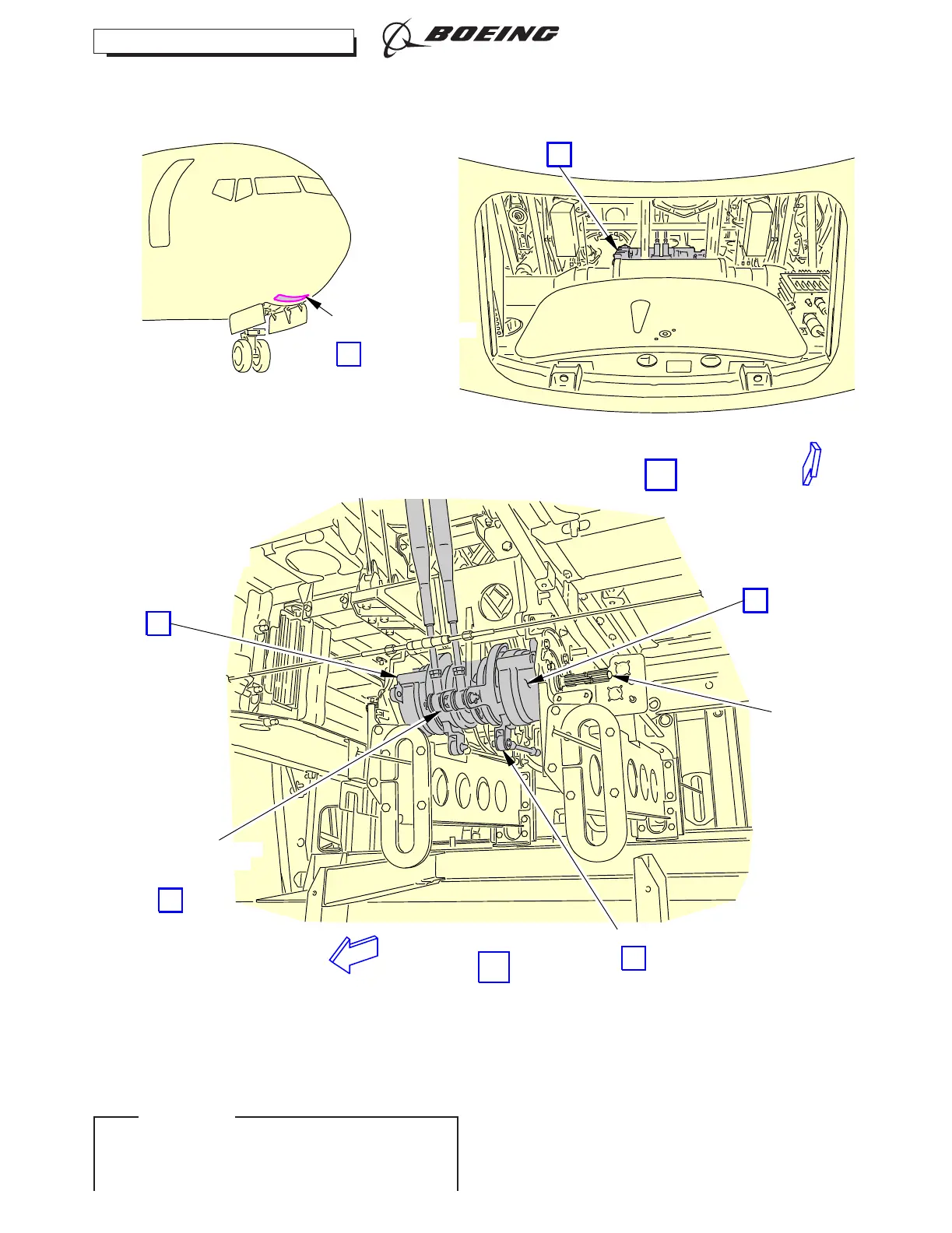

Thrust Lever Angle (TLA) Resolver and Autothrottle Brake Assembly Installation
Figure 402/76-11-05-990-802-F00 (Sheet 1 of 3)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
CFM56 ENGINES (CFM56-7)
76-11-05
Page 407
D633A101-ILF Jun 15/2016
