Boeing 737-600 - Page 2126

C
D
F
W
D
F
W
D
(RIGHT SIDE IS SHOWN,
LEFT SIDE IS EQUIVALENT)
[9] BOLT
[6] CONTROL ROD
[8] WASHER
[7] NUT
[4] BOLT
(2 LOCATIONS)
[5] THRUST LEVER
CONNECTING
ROD END
(2 LOCATIONS)
[1] COTTER PIN
(2 LOCATIONS)
[3] WASHER
(2 LOCATIONS)
[2] NUT
(2 LOCATIONS)
(RIGHT SIDE IS SHOWN,
LEFT SIDE IS EQUIVALENT)
K07665 S0006583092_V2

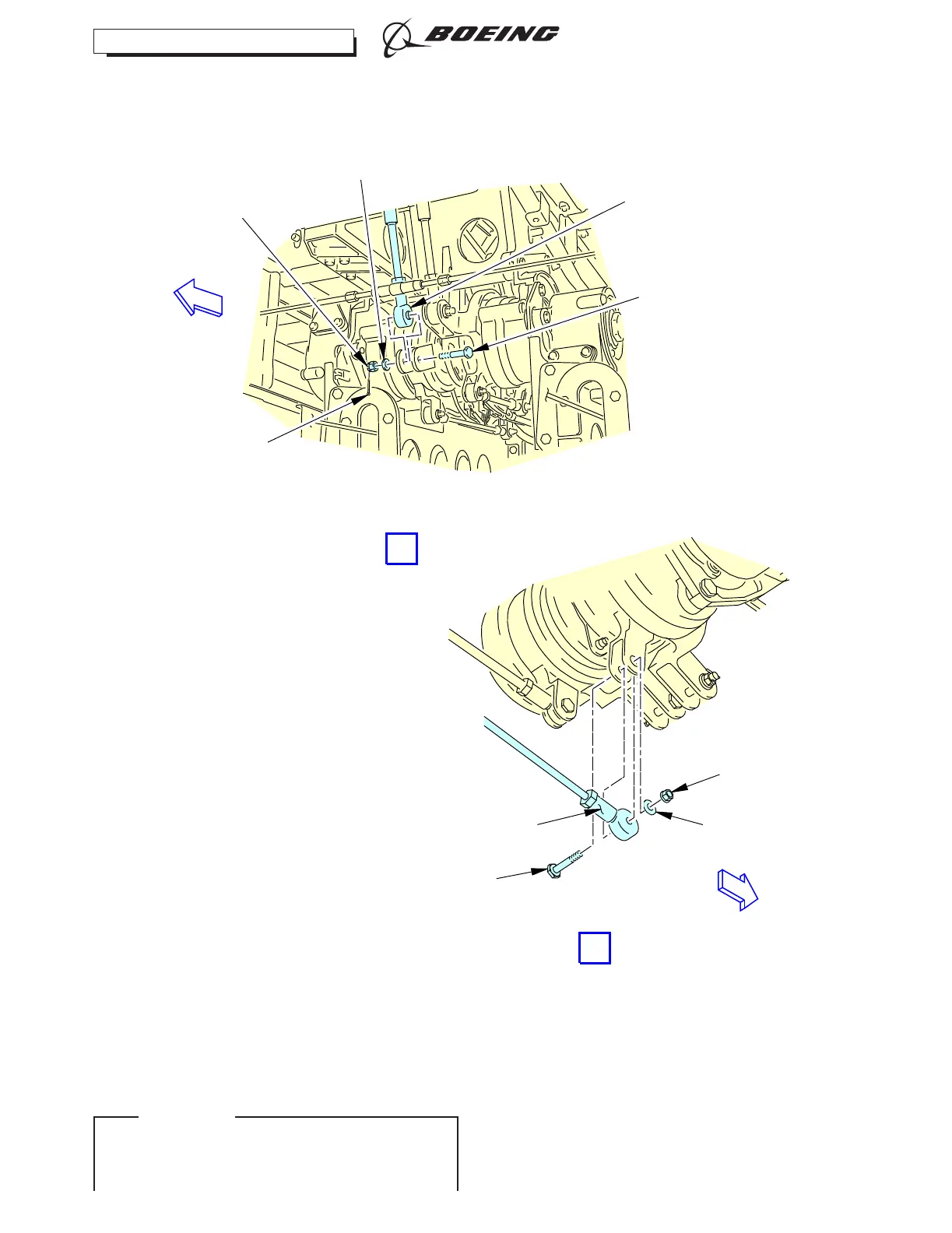

Thrust Lever Angle (TLA) Resolver and Autothrottle Brake Assembly Installation
Figure 402/76-11-05-990-802-F00 (Sheet 2 of 3)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
CFM56 ENGINES (CFM56-7)
76-11-05
Page 408
D633A101-ILF Jun 15/2016
