Boeing 737-600 - Page 2127

F
W
D
E
[31] SUPPORT
BRACKET
TLA RESOLVER AND BRAKE ASSEMBLY
(ENGINE 1 IS SHOWN, ENGINE 2 IS EQUIVALENT)
[51] CABLE GUARD
[10] BRAKE
ASSEMBLY
[29] BOLT
AUTOTHROTTLE
FRAME HOUSING
[32] TLA
RESOLVER
[23] BOLT
[24] WASHER
[25] NUT
[24] WASHER
[22] BOLT
[21] WASHER
ALIGNMENT HOLE
[30] WASHER
[26] BOLT
[27] WASHER
[27] WASHER
[52] CLIP
[50] WASHER
(2 LOCATIONS)
[21] WASHER
[22] BOLT
[26] BOLT
[49] BOLT
(2 LOCATIONS)
G34482 S0006583093_V2

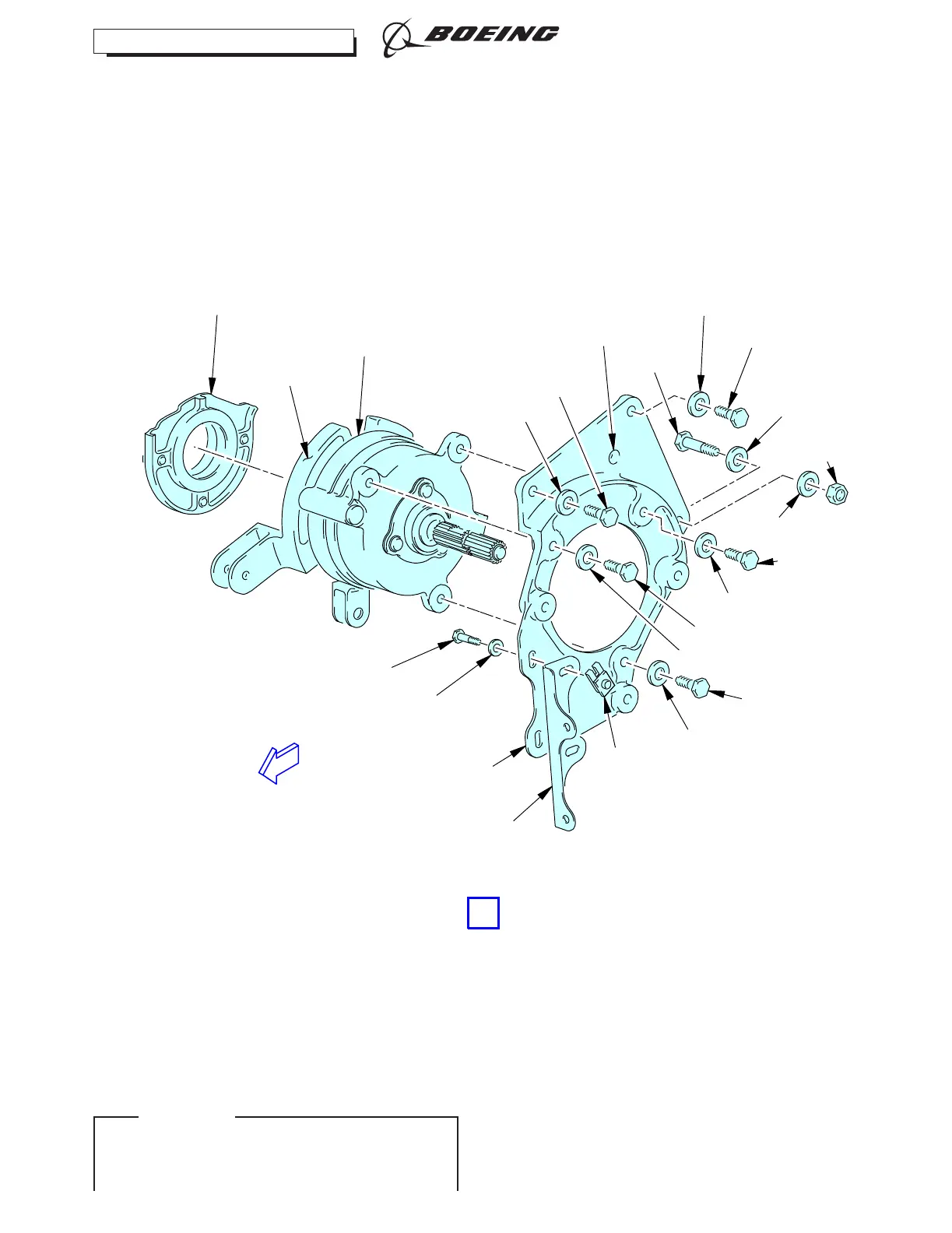

Thrust Lever Angle (TLA) Resolver and Autothrottle Brake Assembly Installation
Figure 402/76-11-05-990-802-F00 (Sheet 3 of 3)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
CFM56 ENGINES (CFM56-7)
76-11-05
Page 409
D633A101-ILF Jun 15/2016
