[53] BEARING
[32] TLA
RESOLVER
[49] AUTOTHROTTLE
SHAFT
[10] BRAKE
ASSEMBLY
TLA RESOLVER
BRAKE
ASSEMBLY
[43] SCREW
(3 LOCATIONS)
[48] WASHER
(3 LOCATIONS)
[44] NUT
[46] PLATE
[45] SPACER
[47] BEARING
[42] SPACER
[54] SEAL NUT
[55] SCRAPER
[56] COTTER
PIN
G34382 S0006583094_V3

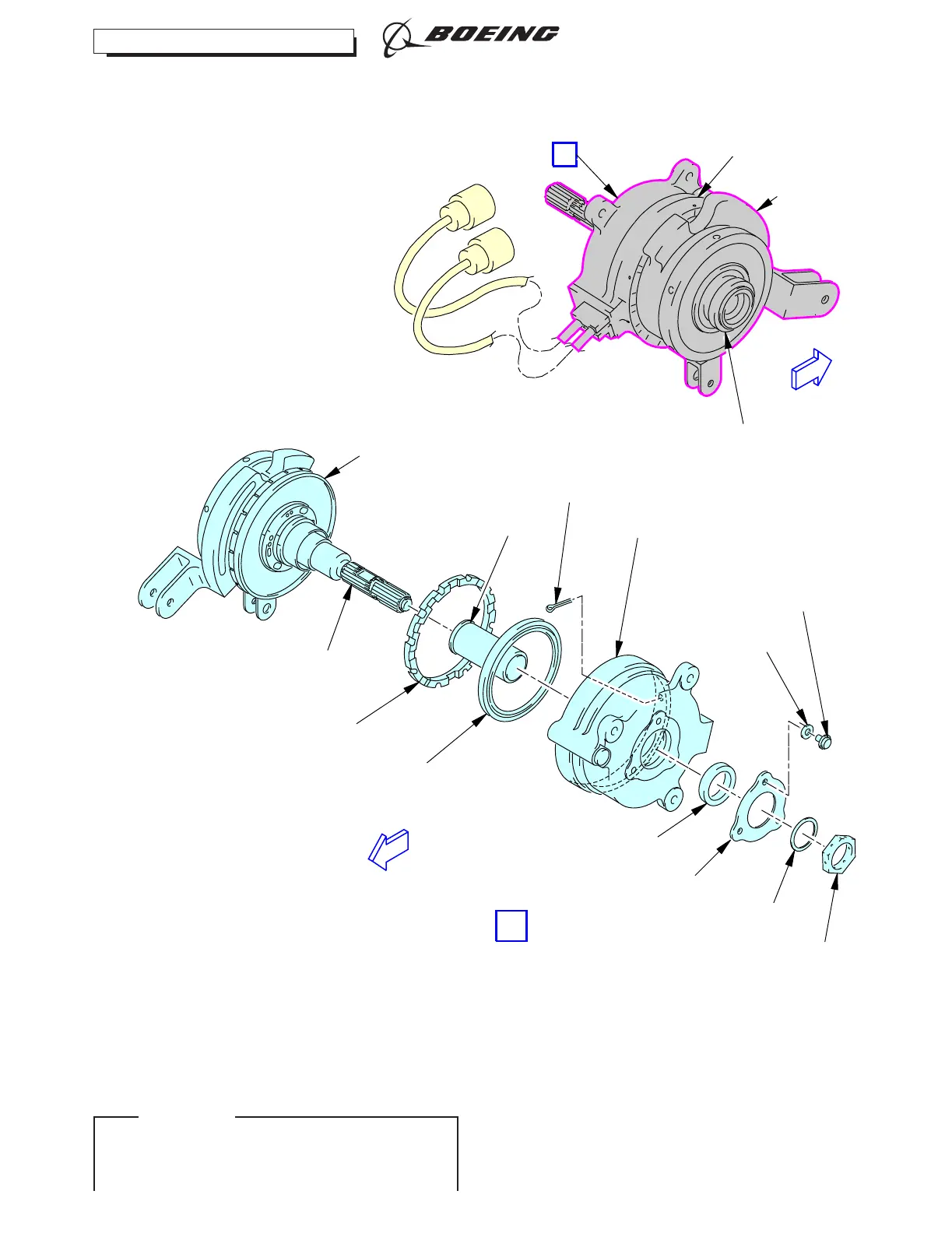

Thrust Lever Angle (TLA) Resolver Assembly Installation
Figure 403/76-11-05-990-803-F00
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
CFM56 ENGINES (CFM56-7)
76-11-05
Page 410
D633A101-ILF Jun 15/2016
