D
FWD
C
D
BATTERY
BATTERY
BATTERY
CONNECTOR
[3] WASHER
(6 LOCATIONS)
SEAL
SKID PLATE
[2] BOLT
(6 LOCATIONS)
[1] BATTERY
ELECTRICAL
CONNECTOR
H35375 S0006566283_V2

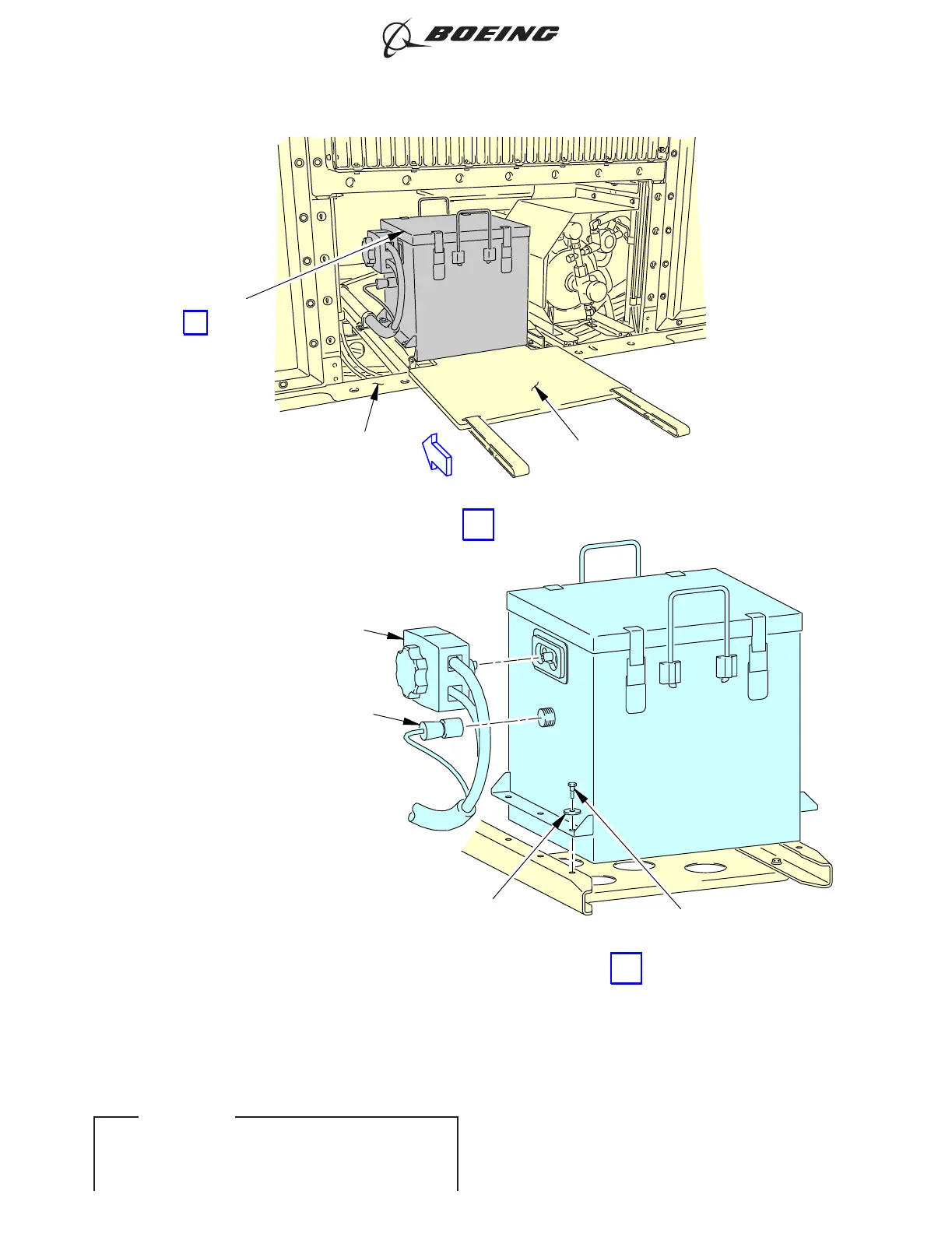

Battery Installation
Figure 401/24-31-11-990-801-001 (Sheet 5 of 5)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
24-31-11
Config 1
Page 407
D633A101-ILF Jun 15/2019
