NOSE LANDING GEAR WHEEL WELL
[10] COVER ASSEMBLY
[11] SCREW
[6] LOCKWASHER
(6 LOCATIONS)
[2] BOLT
(4 LOCATIONS)
EXTERNAL POWER
RECEPTACLE PAN
[1] EXTERNAL POWER
RECEPTACLE
[8] WASHER
(4 LOCATIONS)
[9] NUT
(4 LOCATIONS)
ELECTRICAL
LEADS
[7] NUT
(6 LOCATIONS)
[5] WASHER
(6 LOCATIONS)
[4] NUT
(4 LOCATIONS)
[3] WASHER
(4 LOCATIONS)
F74587 S0006566403_V4

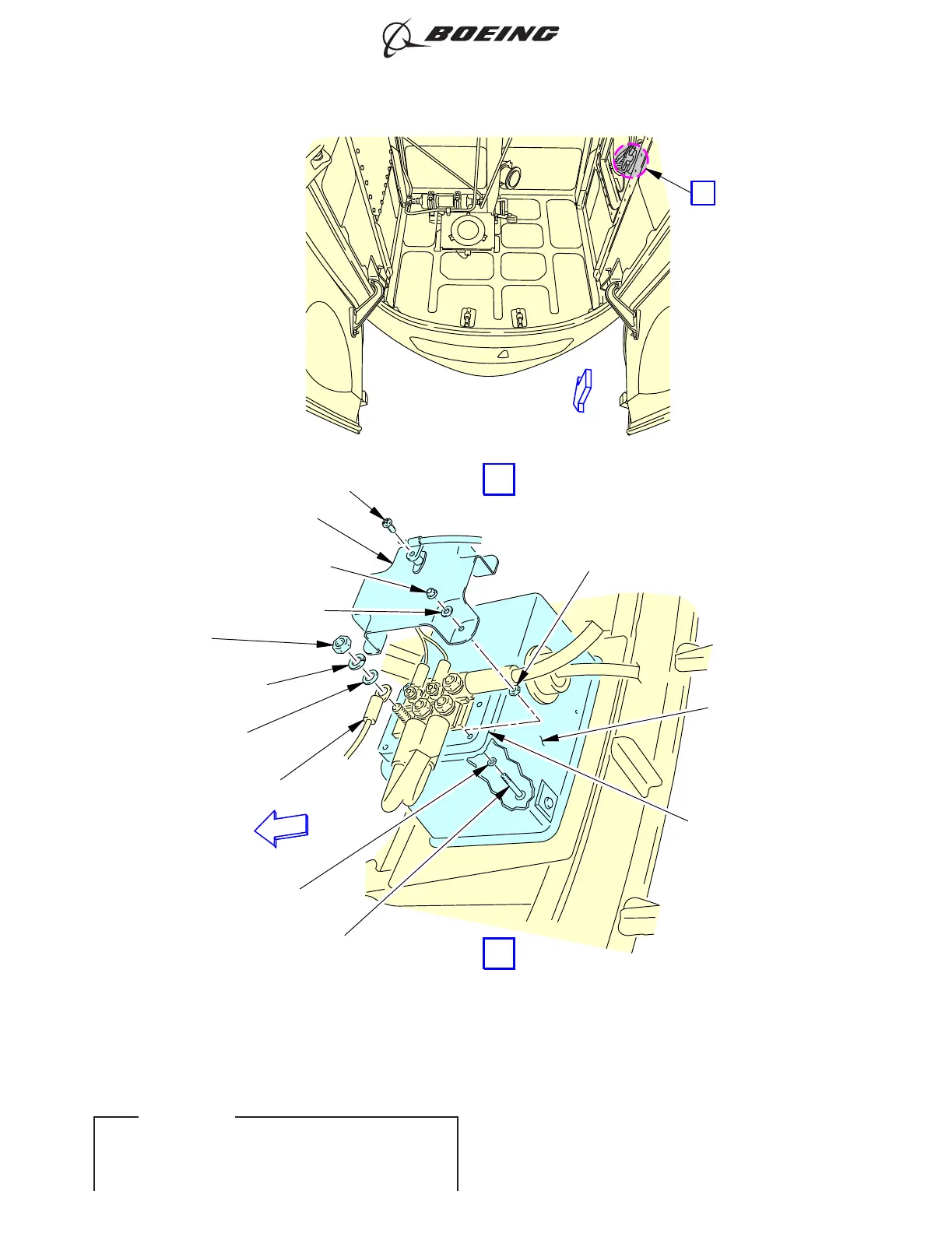

External Power Receptacle Installation
Figure 401/24-41-11-990-801 (Sheet 2 of 3)
