Boeing 737-600 - Page 404

B
FWD
C
F
W
D
C
[10] COVER ASSEMBLY
[11] SCREW
[6] LOCKWASHER
(6 LOCATIONS)
NOSE LANDING GEAR WHEEL WELL
[2] BOLT
(4 LOCATIONS)
EXTERNAL POWER
RECEPTACLE PAN
[1] EXTERNAL POWER
RECEPTACLE
[8] WASHER
(4 LOCATIONS)
[9] NUT
(4 LOCATIONS)
ELECTRICAL
LEADS
[7] NUT
(6 LOCATIONS)
[5] WASHER
(6 LOCATIONS)
[4] NUT
(4 LOCATIONS)
[3] WASHER
(4 LOCATIONS)
[13] NUT
(4 LOCATIONS)
[12] WASHER
(4 LOCATIONS)
[12] WASHER
(4 LOCATIONS)
D86509 S0000167231_V2

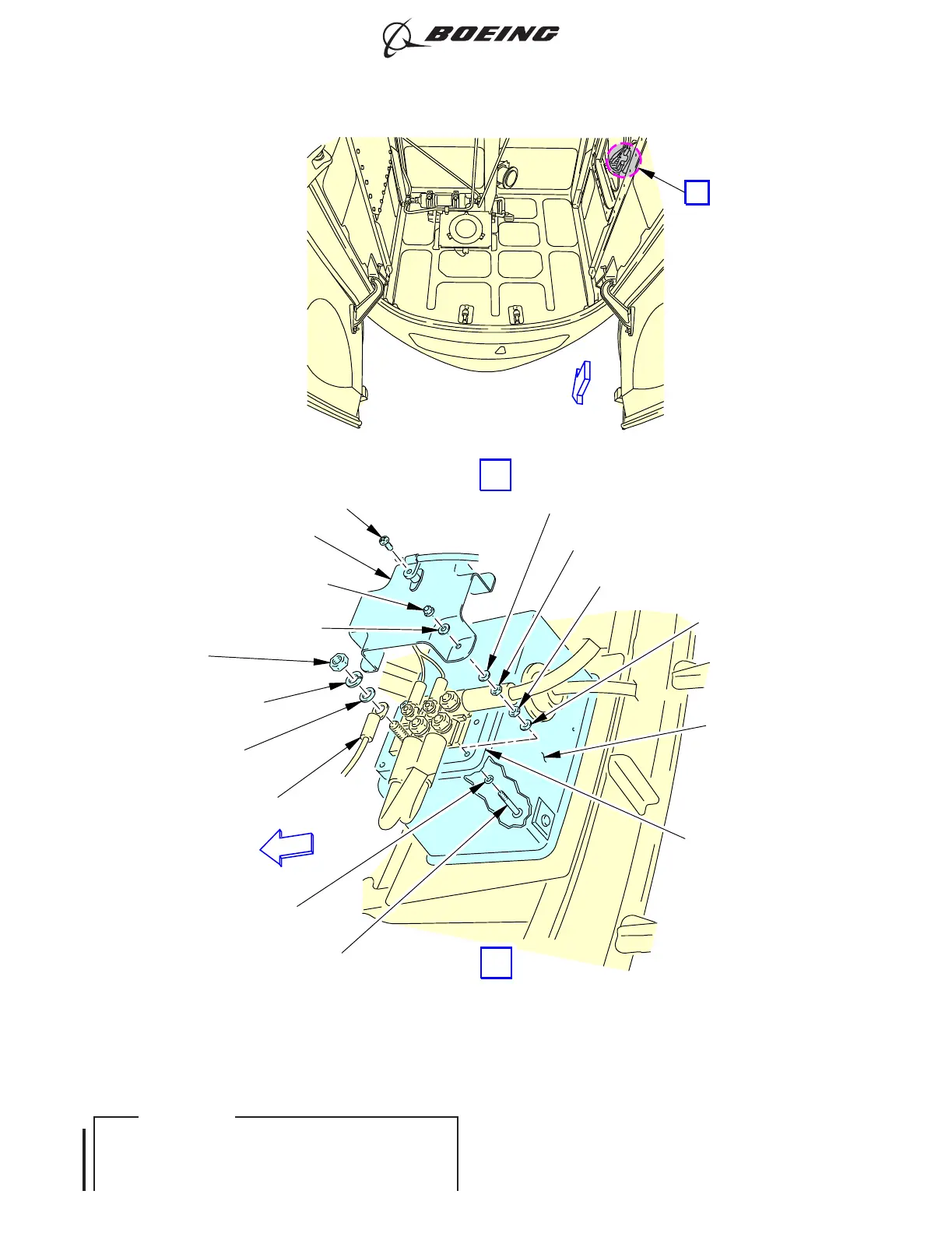

External Power Receptacle Installation
Figure 401/24-41-11-990-801 (Sheet 3 of 3)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
24-41-11
Page 406
D633A101-ILF Oct 15/2019
