B
FWD
C
C
F
W
D
[9] COVER ASSEMBLY
[11] LOCKWASHER
(4 LOCATIONS)
EXTERNAL POWER
RECEPTACLE PAN
[1] EXTERNAL POWER
[7] WASHER
(4 LOCATIONS)
[8] NUT
(4 LOCATIONS)
[13] ELECTRICAL LEADS
(4 LOCATIONS)
[10] BOLT
(4 LOCATIONS)
[12] WASHER
(4 LOCATIONS)
[4] LOCKWASHER
(2 LOCATIONS)
[5] NUT
(2 LOCATIONS)
[3] WASHER
(2 LOCATIONS)
[14] PROTECTIVE
BOOT
NOSE LANDING GEAR WHEEL WELL
[6] DIELECTRIC
SEPARATOR
[2] ELECTRICAL
LEAD
(2 LOCATIONS)
2067904 S0000429995_V3

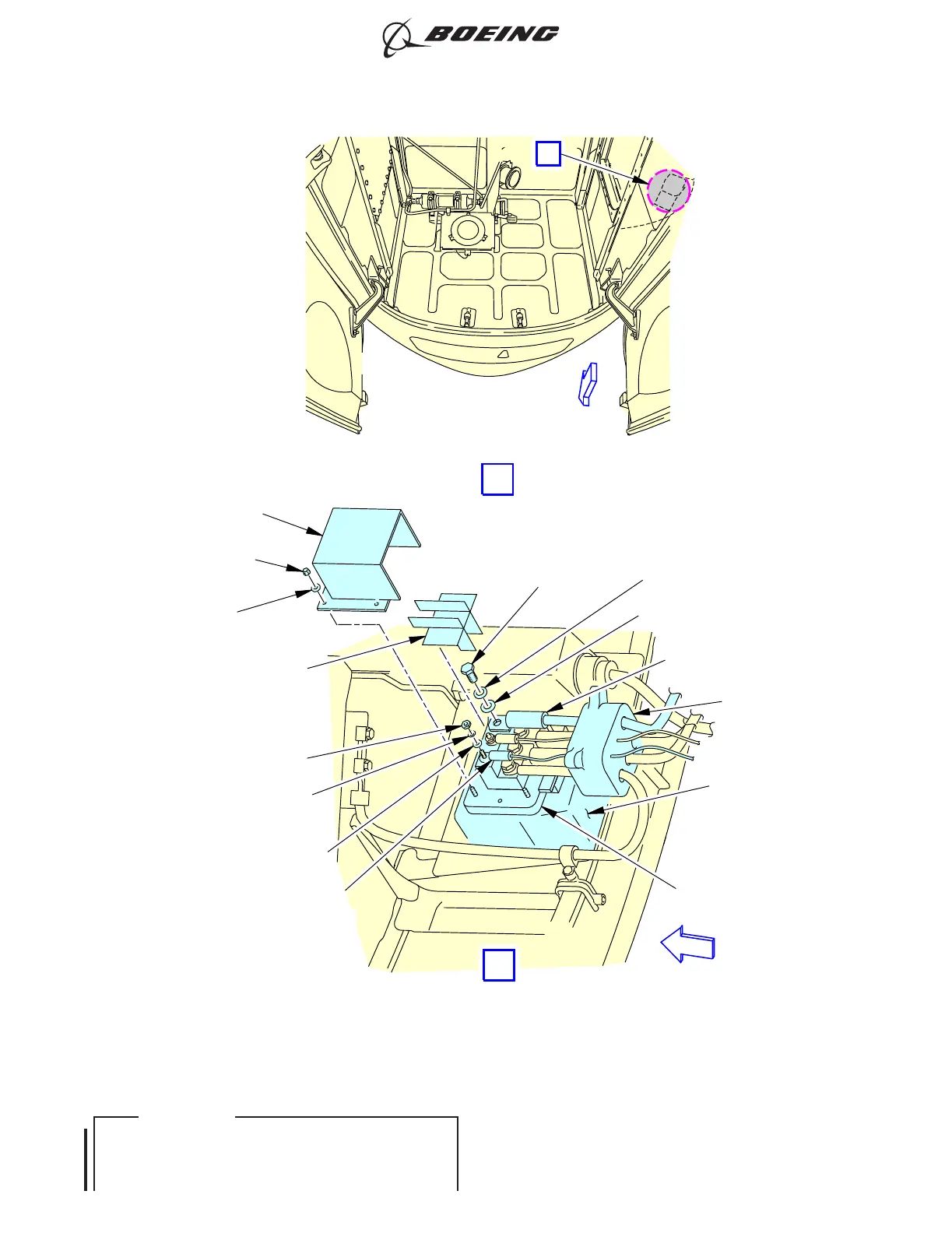

External Power Receptacle Installation
Figure 401/24-41-11-990-804 (Sheet 2 of 4)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
24-41-11
Config 1
Page 405
D633A101-ILF Oct 15/2019
ECCN 9E991 BOEING PROPRIETARY - Copyright © Unpublished Work - See title page for details
EFFECTIVITY
ILF 491-495, 497, 559, 563, 564, 588-590, 592, 972, 980-999; ILF 101, 151,
156-199, 301, 304, 308, 310, 314, 315, 317-319, 323, 331-399, 401, 402, 405, 406,
409, 410, 412, 416, 424, 425, 427-429, 451, 452, 496, 498-504, 507-510, 512-516,
518-520, 523-528, 530-533, 535-537, 541, 542, 552-557, 560-562, 567-569,
571-577, 581, 583, 585, 671, 672, 703, 707-710, 803-813, 821, 822, 831, 832, 836,
837, 841, 842, 851, 852, 854-858, 861-863, 871-874, 947, 948, 968-971, 973 POST
SB 737-24-1198
