Boeing 737-600 - Page 777

A
1
FWD
1
FWD
A
1
2 1
3 4
UNIT
WINDOW
ELECTRICAL
EQUIPMENT NO.
2
1
3
4
R SIDE
L FWD
L SIDE
R FWD
M320
M321
M322
M323
WINDSHIELD SENSOR SWITCHES
ELECTRONIC EQUIPMENT RACKS, E2, E3 AND E4
ELECTRONIC
EQUIPMENT ACCESS
DOOR, 117A
SENSOR
SELECT
SWITCHES
WINDOW
HEAT
CONTROL
UNITS
(E2-1)
WINDOW
HEAT
CONTROL
UNITS
(E4-2)
WINDSHIELD
SENSOR
SWITCHES
G25279 S0006573159_V2

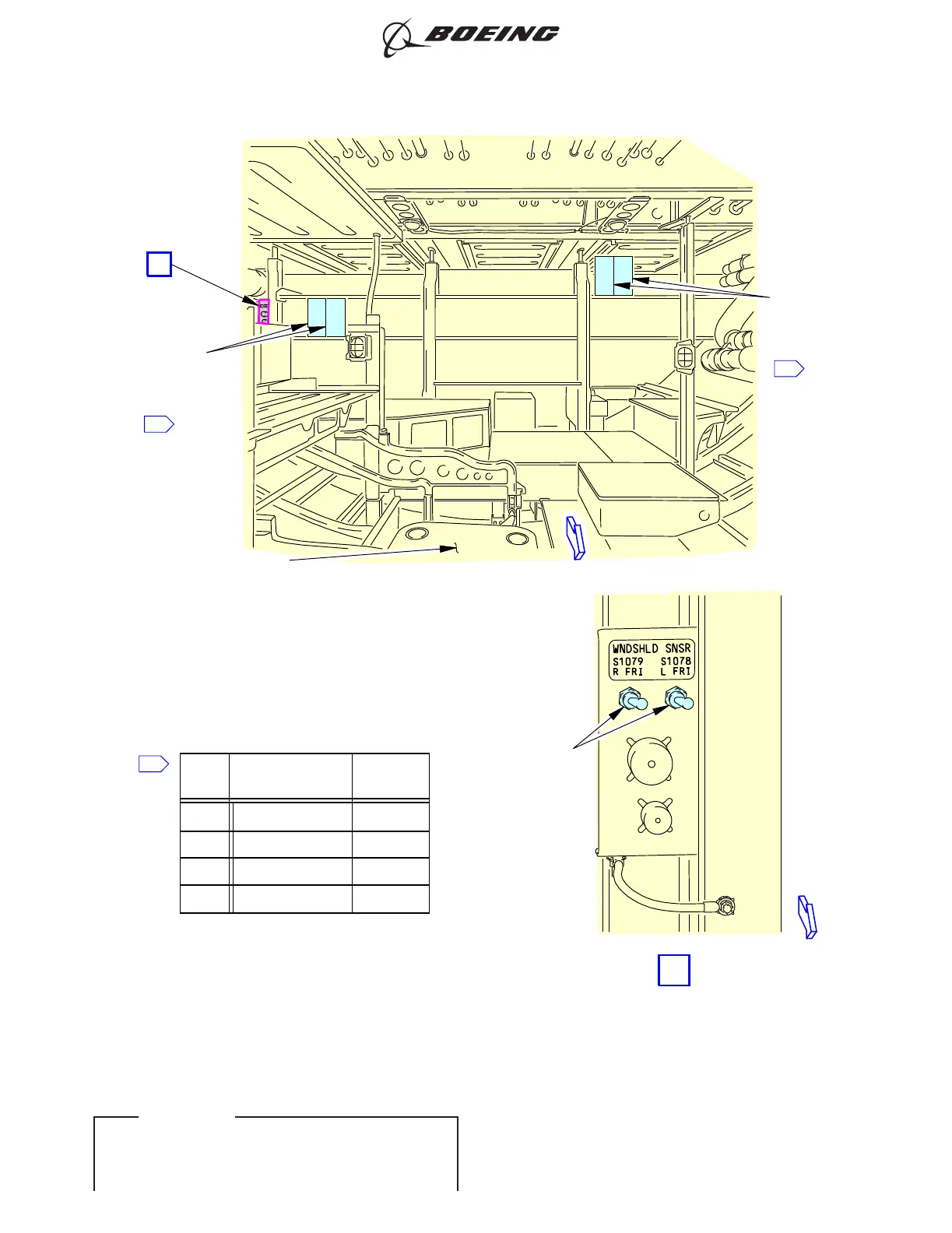

Window Temperature Sensor Test
Figure 502/30-41-21-990-802
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
30-41-21
Page 510
D633A101-ILF Oct 15/2019
