3.7.1 Selecting the Range
After setting the range, Copy and Delete can be performed.

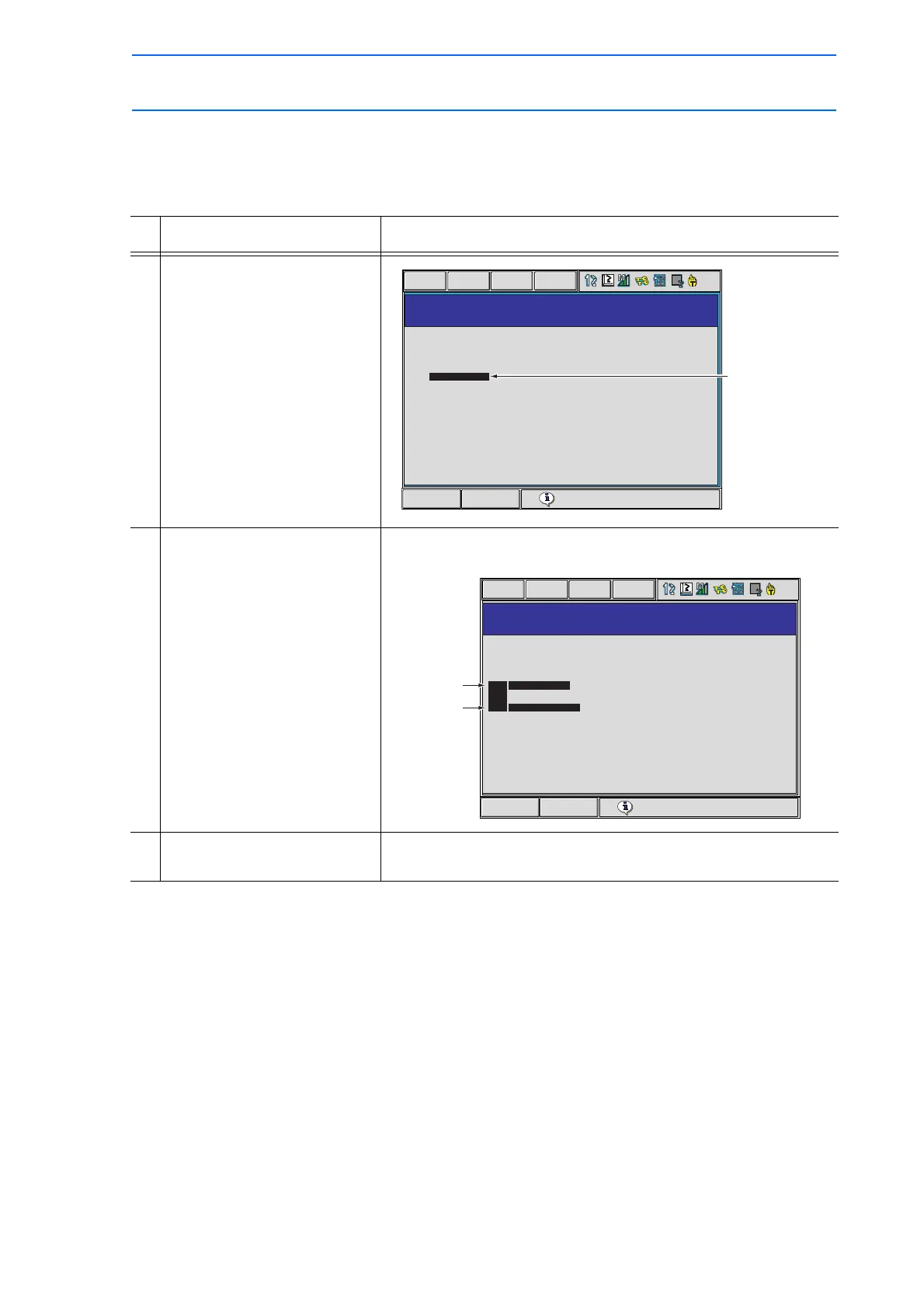

Operation Explanation
1 Move the cursor to the
instruction area in the JOB
CONTENT window.
2 Move the cursor to the start
line and press [SHIFT] +
[SELECT].
The range specification begins, and the address is displayed in
reverse.
3 Move the cursor to the end
line.
Moving the cursor effects to the range. Up to the line specified by
the cursor is the range.
Short CutMain Menu
Turn on servo power
JOB CONTENT
JOB NAME :TEST01
CONTROL GROUP : R1
0000
0001
0002
0003
0004
0005
0006
0007
0008
0009
0010
0011
0012
NOP
SET B000 0
SET B001 1
MOVJ VJ=80.00
MOVJ VJ=80.00
DOUT OGH#(13) B002
DOUT OT#(41) ON
MOVL C00002 V=880.0 CV#(1) CTP=0.662
DOUT OT#(44) ON
TIMER T=3.0
MOVL V=880.0
MOVL V=880.0
MOVL V=880.0
TOOL : 00
STEP NO. : 0003
JOB
EDIT
DISPLAY
UTILITY
Move the cursor to
instruction area.
Short CutMain Menu
Turn on servo power
JOB CONTENT
JOB NAME : TEST01
CONTROL GROUP : R1
0000
0001
0002
0003
0004
0005
0006
0007
0008
0009
0010
0011
0012
NOP
SET B000 0
SET B001 1
MOVJ VJ=80.00
MOVJ VJ=80.00
DOUT OGH#(13) B002
DOUT OT#(41) ON
MOVL C00002 V=880.0 CV#(1) CTP=0.662
DOUT OT#(44) ON
TIMER T=3.0
MOVL V=880.0
MOVL V=880.0
MOVL V=880.0
TOOL : 00
STEP NO. : 0003
JOB EDIT DISPLAY
UTILITY
Start line
End line
