 S4C032 to S4C039: USER OUTPUT GROUP TO BE INITIALIZED
AT SWITCHING MODE
Set the user output group with bit to be initialized at switching mode. Use these parameters when using
user output signals as work instructions for peripheral devices.
 S4C126: USER OUTPUT NO. WHEN MANIPULATOR DROP
ALLOWABLE RANGE ERROR OCCURS
This parameter specifies the user output number to output the manipulator drop allowable range error
alarm occurrence externally. When this function is not used, set “0.”
INITIAL VALUE SPECIFICATION AT BIT-ON (1)
INITIAL VALUE SPECIFICATION AT BIT-ON (1)
INITIAL VALUE SPECIFICATION AT BIT-ON (1)
d15 d0
OG#01
OG#02
OG#03
OG#04
OG#05
OG#06
OG#07
OG#08
OG#09
OG#10
OG#11
OG#12
OG#13
OG#14
OG#15
OG#16

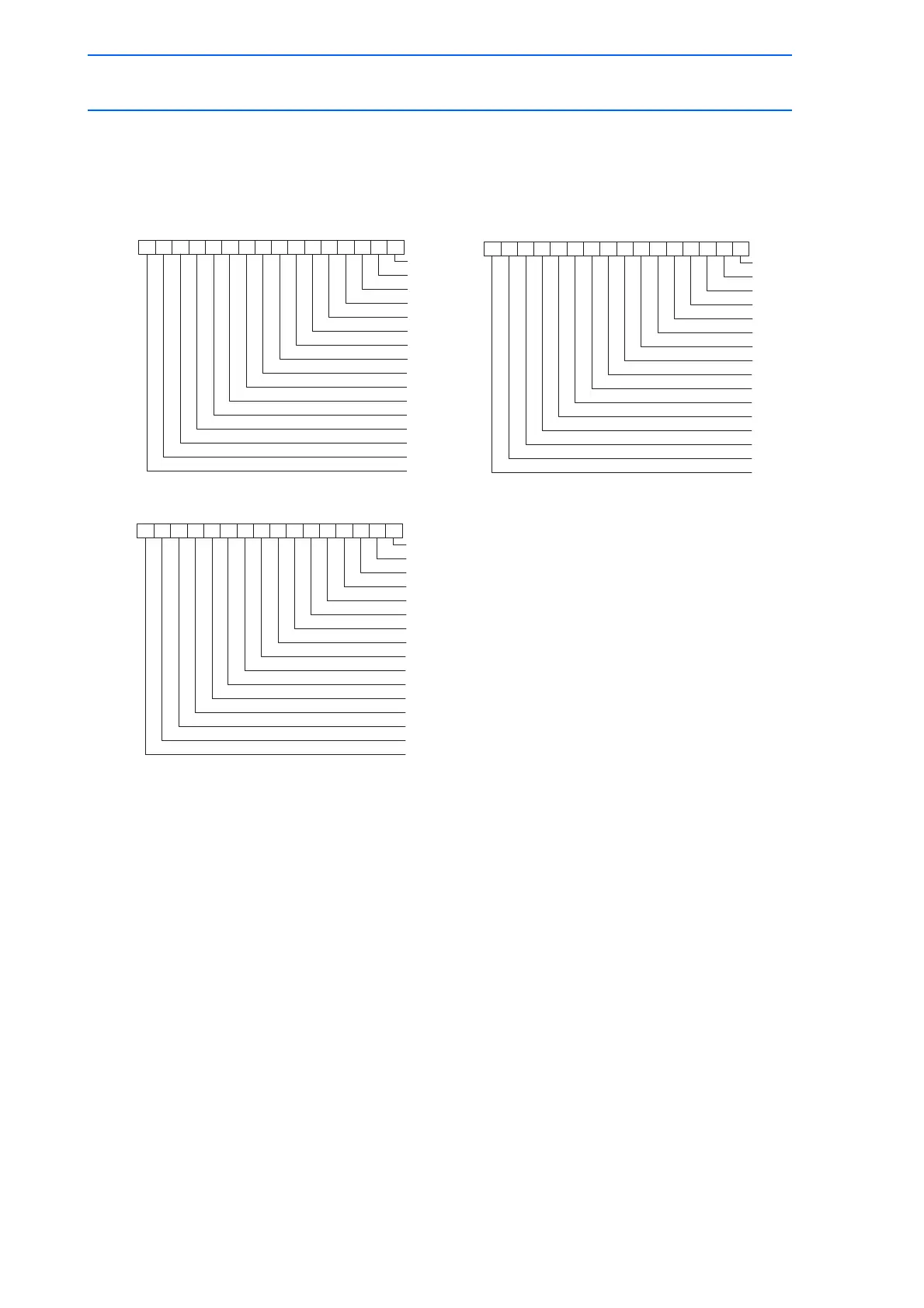

S4C032
d15 d0
OG#17
OG#18
OG#19
OG#20
OG#21
OG#22
OG#23
OG#24
OG#25
OG#26
OG#27
OG#28
OG#29
OG#30
OG#31
OG#32
S4C033
d15 d0
OG#33
OG#34
OG#35
OG#36
OG#37
OG#38
OG#39
OG#40
OG#41
OG#42
OG#43
OG#44
OG#45
OG#46
OG#47
OG#48
S4C034
328 of 493
