YASKAWA NX100 User Manual

3 Teaching
3.5 Modifying Jobs
3-36
149235-1CD
RE-CSO-A031

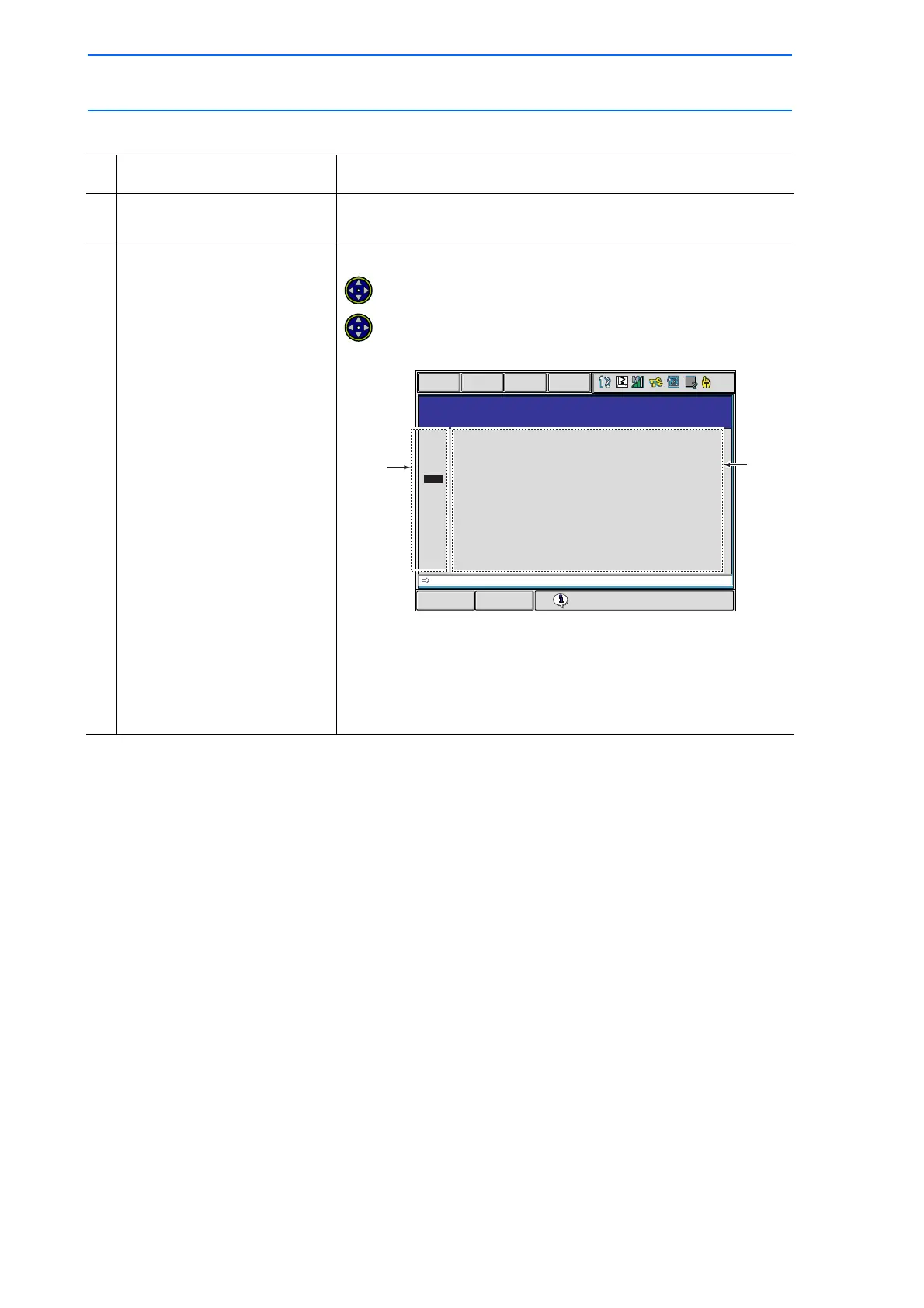

 JOB CONTENT Window
Operation Explanation
1
Select {JOB} under the
main menu.
2
Select {JOB}. The JOB CONTENT window appears.
 (Left) : The cursor is moved to the address area.
 (Right): The cursor is moved to the instruction area.
Address Area
Displays line numbers.
Instruction Area
Displays instructions, additional items, and comments. Line
editing is possible.
Short CutMain Menu
Turn on servo power
JOB CONTENT
JOB NAME :TEST01
CONTROL GROUP :R1
0000
0001
0002
0003
0004
0005
0006
0007
0008
0009
0010
0011
0012
NOP
SET B000 0
SET B001 1
MOVJ VJ=80.00
MOVJ VJ=80.00
DOUT OGH#(13) B002
DOUT OT#(41) ON
MOVL C00002 V=880.0 CV#(1) CTP=0.662
DOUT OT#(44) ON
TIMER T=3.0
MOVL V=880.0
MOVL V=880.0
MOVL V=880.0
TOOL : 00
STEP NO. : 0003
MOVJ VJ=80.00
JOB
EDIT
DISPLAY
UTILITY


100 of 493
