3 Teaching
3.5 Modifying Jobs
3-35
149235-1CD
RE-CSO-A031
3 Select {DISPLAY} under the
menu.
4
Select {JOB HEADER}.
The JOB HEADER window appears. Scroll the window using the
cursor.
JOB NAME
Displays the name of the current job.
COMMENT
Displays the comments attached to the current job. This
can be edited in this window.
DATE
Displays the date and time of the last editing of the job.
CAPACITY
Displays the amount of memory that is being used to reg-
ister this job.
LINES
Displays the total number of instructions registered in this
job.
STEPS
Displays the total number of move instructions registered
in this job.
EDIT LOCK
Displays whether the edit prohibit setting for this job is at
ON or OFF. This can be changed in this window.
TO SAVE TO FD
Displays “DONE” if the contents of the job are saved to a
floppy disk since the date and time of the last editing oper-
ation, and displays “NOT DONE” if they are not saved.
The job is marked as “DONE” only if it is saved as an
independent job or as a related job. If it is saved in a
CMOS batch operation, it is not marked as “DONE.”
CONTROL GROUP
Displays the control group that this job controls. If the master
axis is specified, the master axis is highlighted.
Operation Explanation
Main Menu Short Cut
COMMENT
DATE
CAPACITY
LINES
STEPS
EDIT LOCK
TO SAVE TO FD
CONTROL GROUP
: This is test job
: 2003/05/20 12:00
: 1024 BYTE
: 30 LINE
: 20 STEP
: OFF
: NOT DONE
: R1

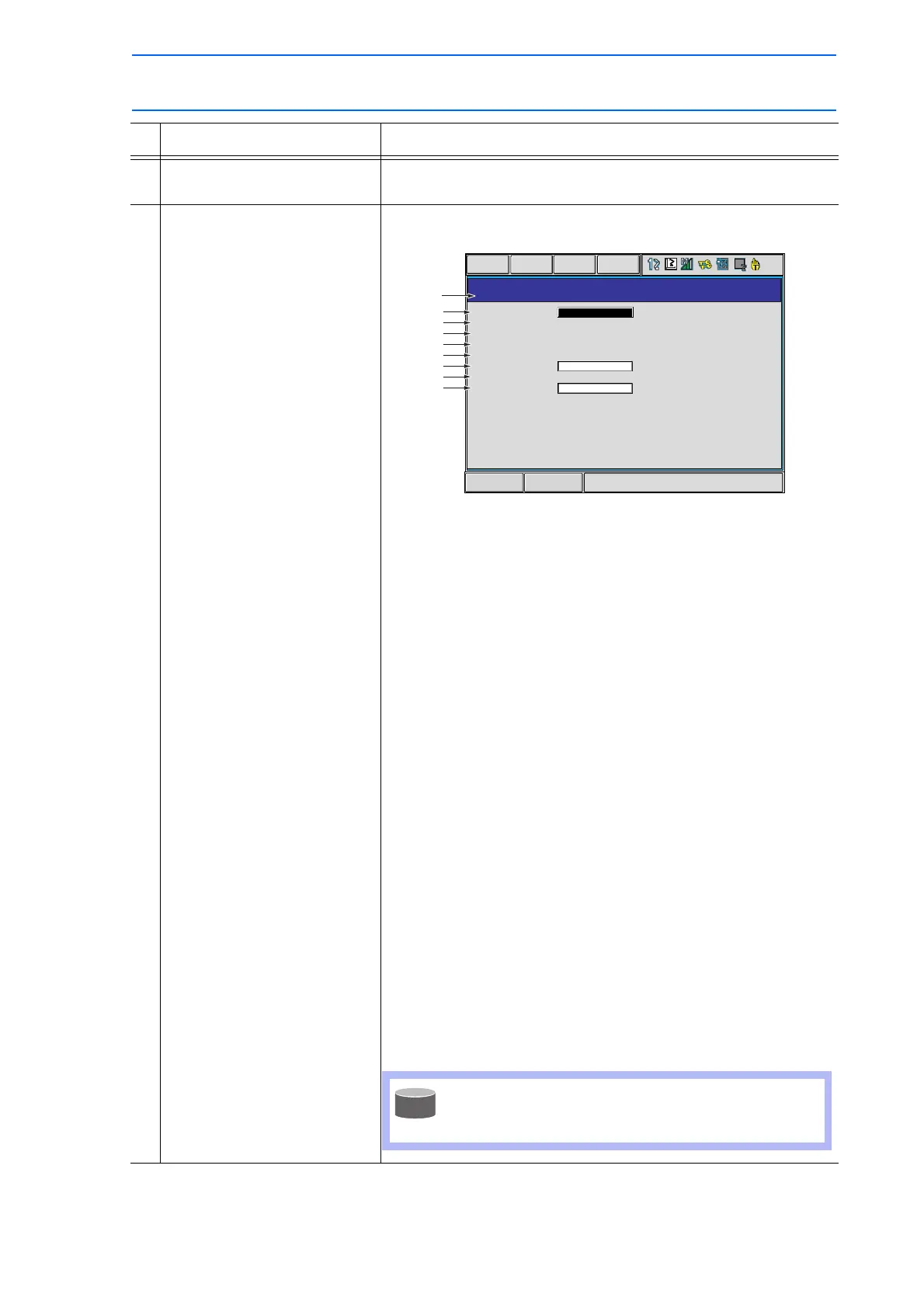

JOB HEADER
JOB NAME :TEST01
JOB EDIT
DISPLAY UTILITY
To return to the JOB CONTENT window from the
JOB HEADER window, select {DISPLAY} from the
menu and then select {JOB CONTENT}.
