YASKAWA NX100 User Manual

3 Teaching
3.9 Other Job-editing Functions
3-85
149235-1CD
RE-CSO-A031
 Label Search

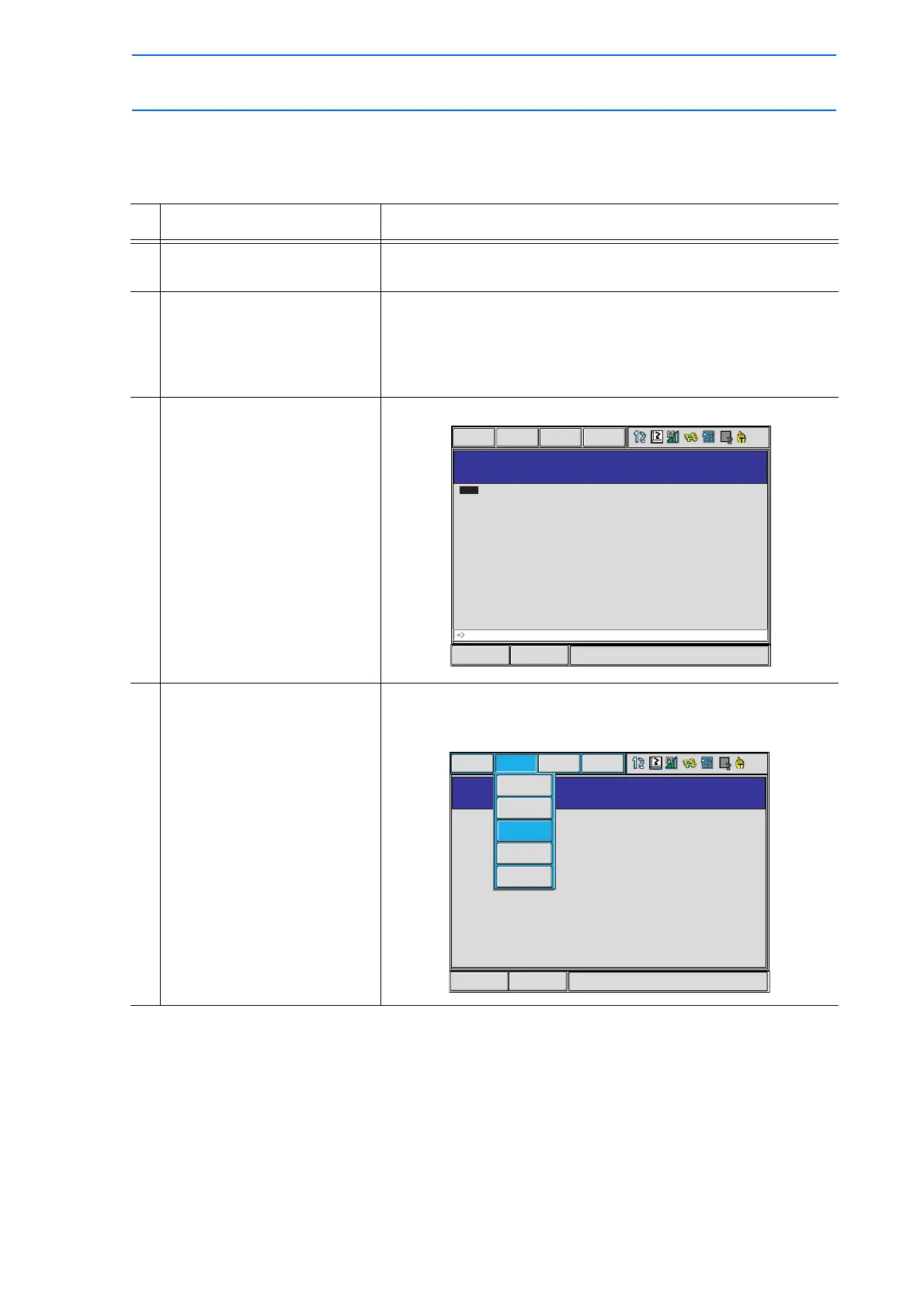

This function searches for the desired label and the instruction using that label.
Operation Explanation
1 Select {EDIT}, {SEARCH} and
“LABEL SEARCH.”
The input buffer line appears.
2 Input desired label name. For information on character input operation, refer to section 1.2.6
"Character Input"
At this time, search can be conducted by entering any one
character of the label. For example, to search for the “START”
label, enter only “S,” and the search can be done.
3 Press [ENTER]. The label is searched out and the cursor is on its line number.
4 Use the cursor to continue
searching.
It is possible to continue searching by pressing the cursor key.
To end searching, select {EDIT}  {END SEARCH} on the menu
and press [SELECT].
Short CutMain Menu
*START
JOB CONTENT
JOB NAME : TEST01
CONTROL GROUP : R1
0099
0100
0101
0102
0103
0104
0105
0106
*START
MOVJ VJ=100.00
TIMER T=1.00
MOVL V=138
MOVL V=138
MOVJ VJ=50.00
MOVJ VJ=100.00
DOUT OT#(1) ON
TOOL : 00
STEP NO. : 0003
JOB EDIT DISPLAY
UTILITY
Short Cut
Main Menu
JOB CONTENT
JOB NAMETEST01
CONTROL GROUPR1
0099
0100
0101
0102
0103
0104
0105
0106
*START
MOVJ VJ=100.00
TIMER T=1.00
MOVL V=138
MOVL V=138
MOVJ VJ=50.00
MOVJ VJ=100.00
DOUT OT#(1) ON
TOOL : 00
STEP NO. : 0003
JOB EDIT
DISPLAY
UTILITY
TOP LINE
END LINE
END SEARCH
ENABLE SPEED TAG
ENABLE POS LVL TAG
149 of 493
