 Calling the Master Job

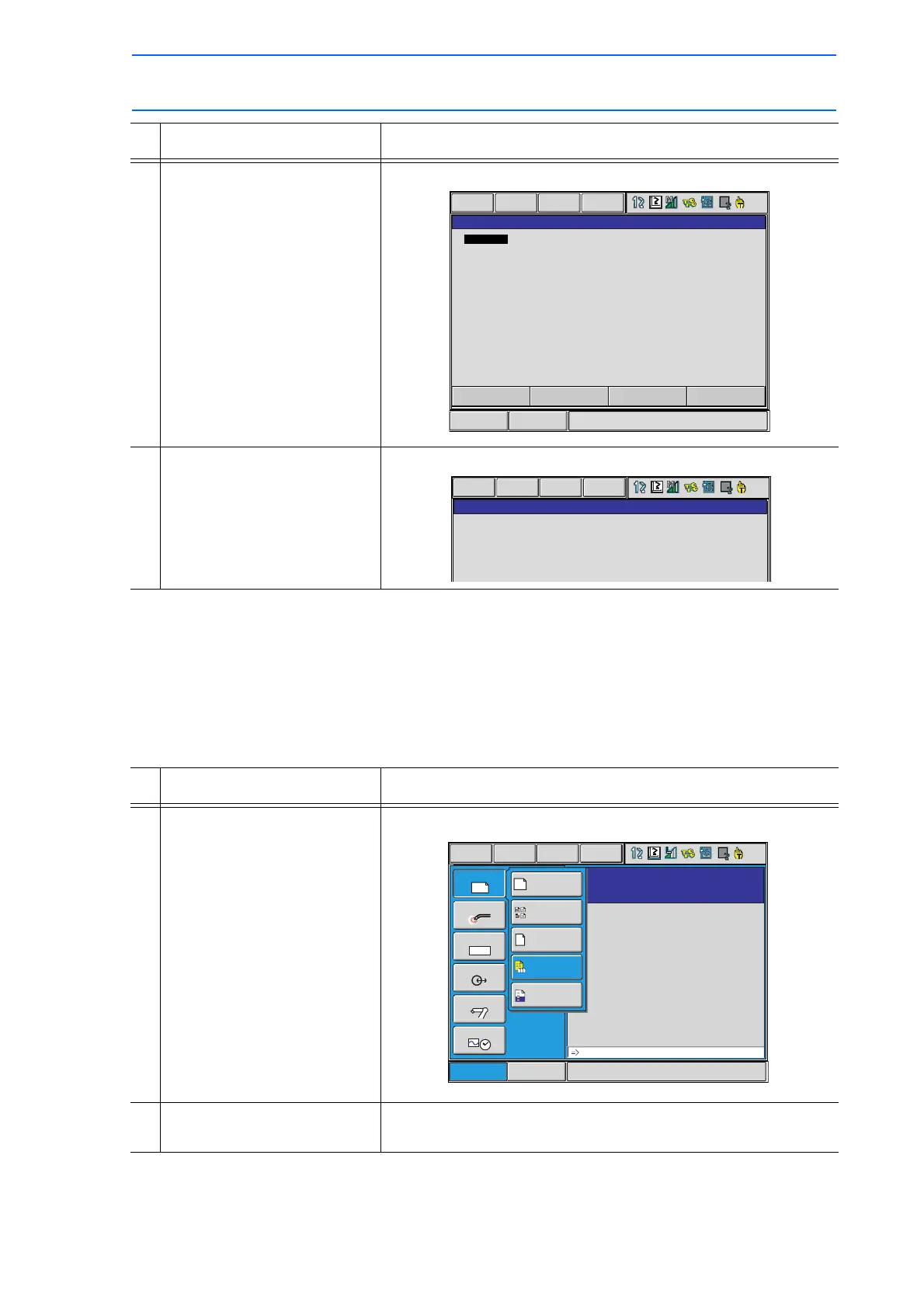

This operation is to call a master job. The job can be called in the JOB CONTENT window, PLAYBACK
window, JOB SELECT window, or the MASTER JOB window.
Calling from the JOB CONTENT, PLAYBACK, JOB SELECT Window
4 Select {CALL MASTER JOB}. The JOB LIST window appears.
5 Select a job to be registered
as a master job.
The selected job is registered as the master job.
Operation Explanation
1 Select {JOB} under the menu. The pull-down menu appears.
2 Select {MASTER JOB}. The master job is called, and the JOB CONTENT window
appears.
Operation Explanation
Main Menu
Short Cut
JOB LIST
TEST03
TEST
TEST3A
TEST01
TEST3A-!
TEST02
JOB EDIT
DISPLAY
UTILITY
MASTER JOB
MASTER JOB : TEST01
JOB
EDIT
DISPLAY
UTILITY
Short Cut
Main Menu
JOB CONTENT
JOB NAME : TEST01
CONTROL GROUP : R1
STEP NO. : 0003
TOOL : 00
0000
0001
0002
0003
0004
0005
0006
NOP
MOVJ VJ=50.00
MOVL V=138
MOVL V=138
MOVL V=138
MOVL V=138
END
JOB
EDIT DISPLAY
UTILITY
MOVJ VJ=0.78
JOB
DOUT
MOVE
END
VARIABLE
B001
IN/OUT
In Out
ROBOT
SYSTEM INFO
CF
ARC WELDING
A
a
SELECT JOB
JOB CONTENT
CREATE NEW JOB
MASTER JOB
JOB CAPACITY
DOUT
MOVE
END
