YASKAWA NX100 User Manual

9 Arc Welding Application
9.5 Welding Condition Files
9-50
149235-1CD
RE-CSO-A031
3. WIRE FAILURE
 Automatic Wire Anti-stick Function Setting
NO. (0 to 9 times)
Maximum repetition count for the wire-sticking release process.
CURRENT (1 to 999A)
The welding current output in the wire-sticking release process.
VOLTAGE (0 to 50.0V, 50 to 150%)
The welding voltage output in the wire-sticking release process.
CLOCK (0 to 2.00 seconds)
Sticking release process duration.
NO RESTART: Arc restart function is not used. The manipulator moves
with the wire shortage alarm.
ALARM AT ARC END : The manipulator continues the welding operation until it
reaches the welding end point, where it stops with an
alarm.
SEMI-AUTO RESTART : The manipulator stops and waits for manual intervention.
The manipulator restarts as the operator presses [START]
again. The restart status is reset when OUT #1022 is
turned ON and OFF.
DATA
EDIT
DISPLAY
UTILITY
Main Menu ShortCut
! Turn on servo power

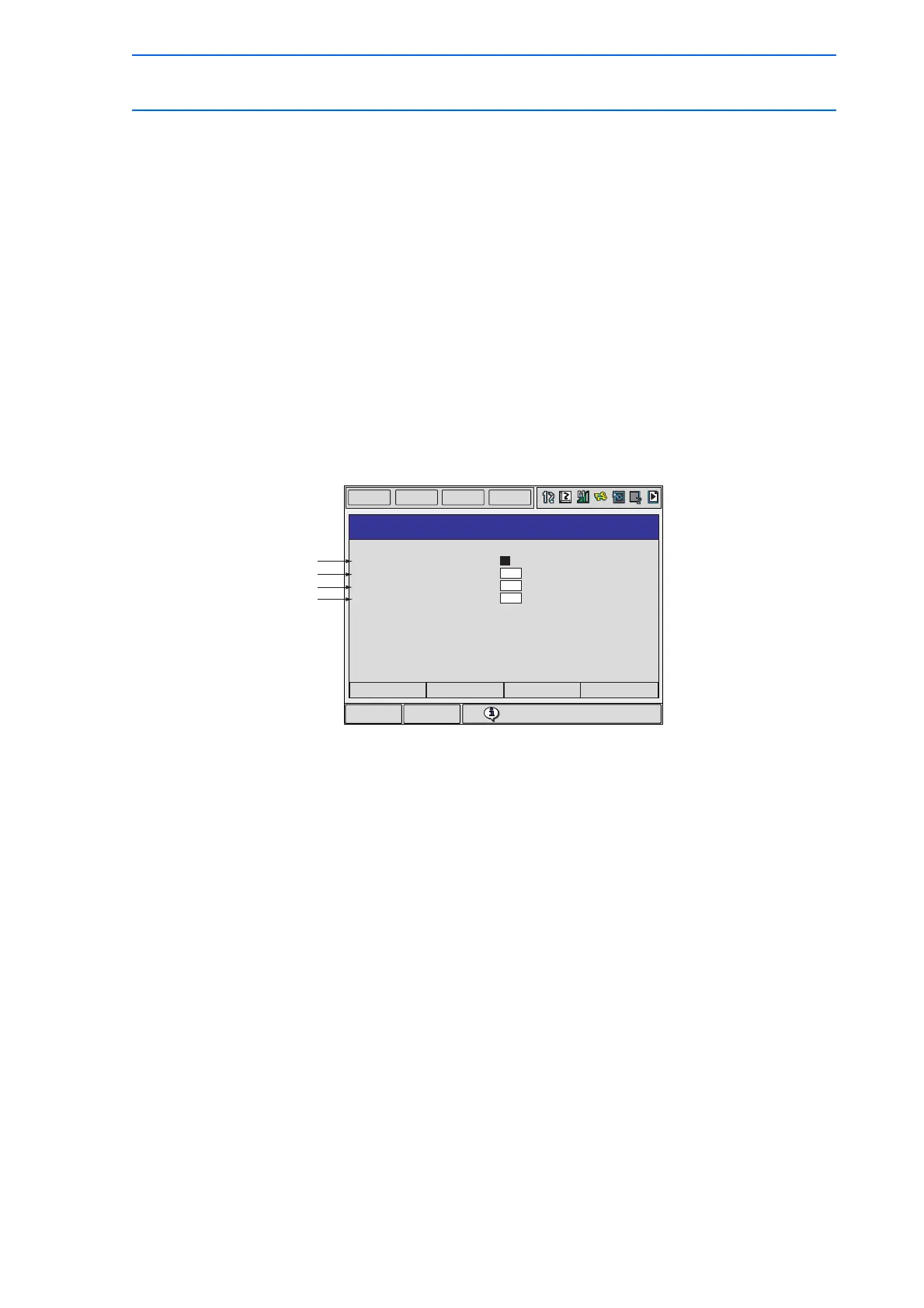

ARC AUXILIARY COND
COND NO.; 1
<WIRE ANTI-STICKING FUNCTION SET>
NO.
CURRENT
VOLTAGE
CLOCK
: 1 times
: 110 A
: 120 %
: 0.30 sec




