YASKAWA NX100 User Manual

9 Arc Welding Application
9.11 Weaving Condition File
9-80
149235-1CD
RE-CSO-A031

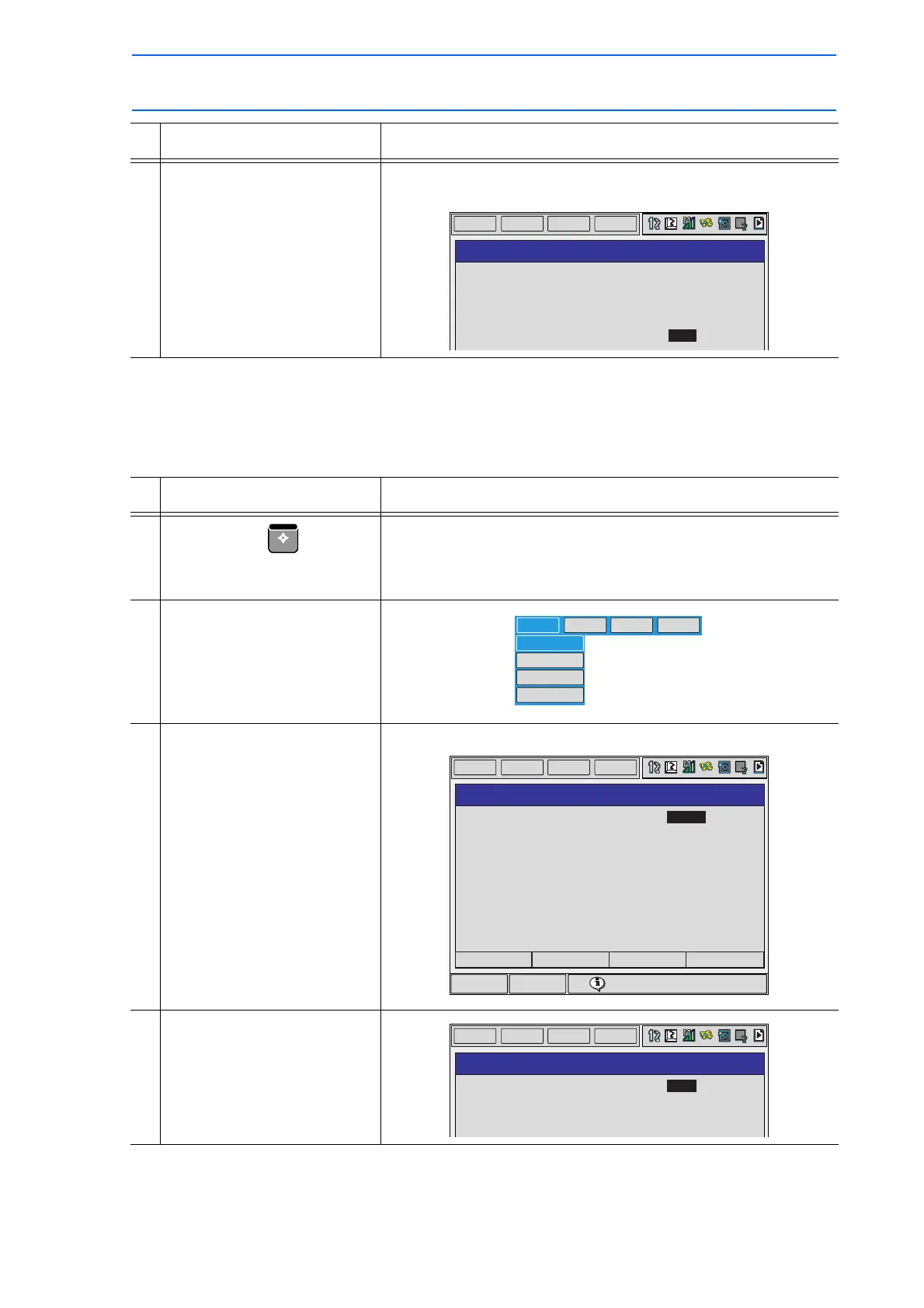

 Method to Prohibit Weaving During the “TEST RUN” or FWD
Operation
4 Select “WEAV PROHIBIT IN
CHK-RUN.”
Each time [SELECT] is pressed, “VALID” and “INVALID”
alternate.
Operation Explanation
1
Press [AREA] on the
JOB CONTENT window in the
TEACH mode.
2 Select {UTILITY}.
3 Select {SETUP SPECIAL
RUN}.
The SPECIAL TEACH window appears.
4 Select “WEAV PROHIBIT IN
TEST RUN/NEXT.”
Operation Explanation
DATA
EDIT
DISPLAY
UTILITY
SPECIAL PLAY
LOW SPEED START
SPEED LIMIT
DRY-RUN SPEED
MACHINE LOCK
CHECK-RUN
WEAV PROHIBIT IN CHK-RUN
: INVALID
: INVALID
: INVALID
: INVALID
: INVALID
: VALID
AREA
UTILITY
EDIT
DISPLAY
UTILITY
PARALLEL SHIFT
JOB
SETUP SPECIAL
RUN
MIRROR SHIFT
PAM
DATA
EDIT
DISPLAY
UTILITY
Main Menu ShortCut
!Turn on servo power
SPECIAL TEACH
WEAV PROHIBIT IN TEST RUN/NEXT
: INVALID
COMPLETE
DATA
EDIT
DISPLAY
UTILITY
SPECIAL TEACH
WEAV PROHIBIT IN TEST RUN/NEXT
: VALID
423 of 493
