YASKAWA NX100 User Manual

9 Arc Welding Application
9.6 Changing Welding Conditions During Playback
9-60
149235-1CD
RE-CSO-A031

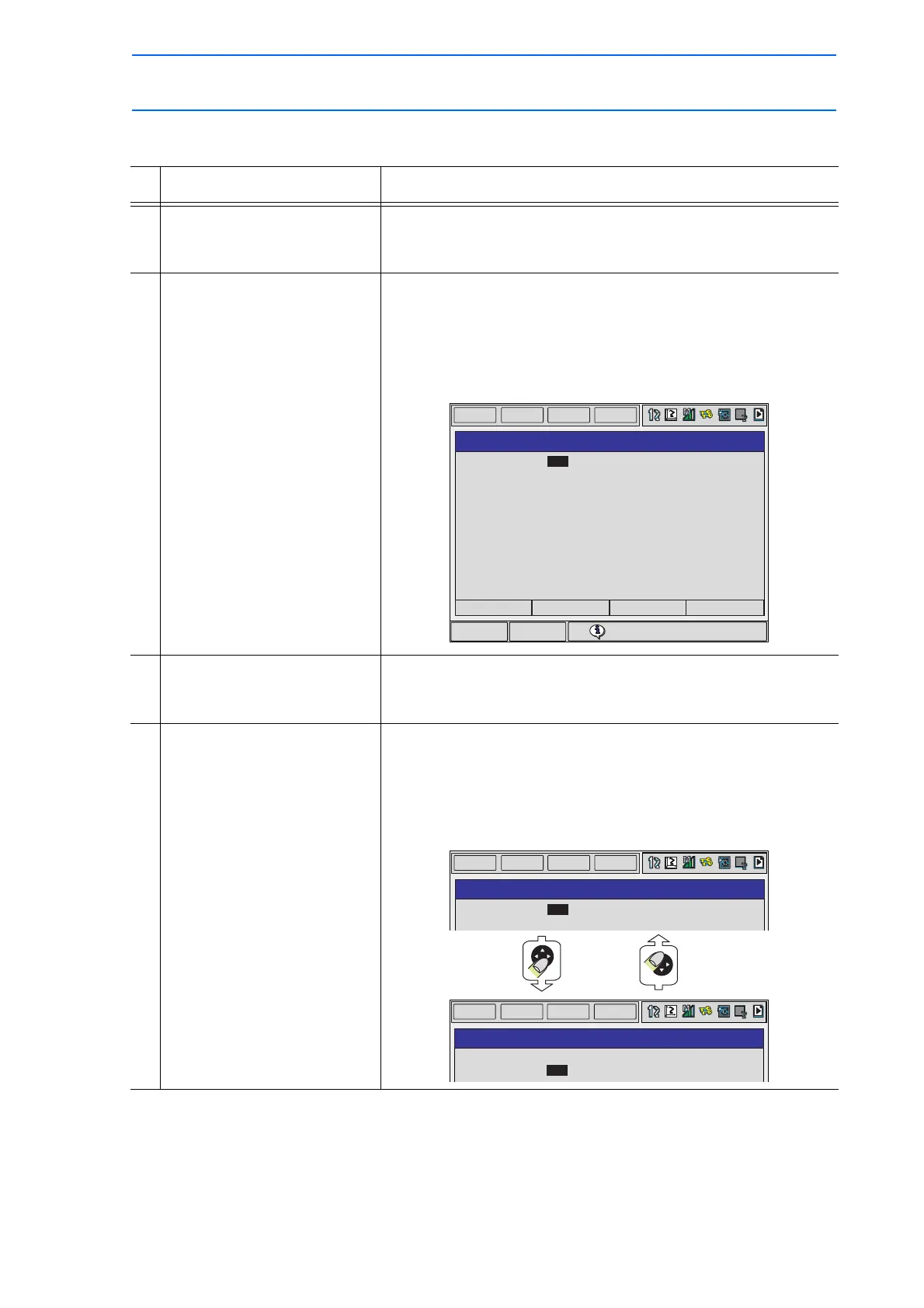

9.6.2 Changing Welding Conditions
Operation Explanation
1 Select {UTILITY} on the JOB
CONTENT window in the play
mode.
2 Select {WELD COND.
ADJUST.}.
The ARC COND ADJUSTMENT window appears.
The last instruction that sets the welding current or voltage is
displayed.
The instruction includes the following:
• ARCON
• ARCSET
3 Line up the cursor with the
current or voltage condition to
be modified.
4 Adjust the value using [CUR/
VOL ] or [CUR/VOL].
• The current and voltage can be independently changed.
• Units of Increase/Decrease: If the key is pressed once, the
current value increases/decreases in units of ± 1A, and the
voltage value increases/decreases in units of ± 0.1V or in
percentages of ± 1%.
DATA
EDIT
DISPLAY
UTILITY
Main Menu ShortCut
! Turn on servo power
ARC COND ADJUSTMENT
CURR(A)
VOLT(%)
DATA
: 200 INST : ARCON
: 100 INST : ARCON
: No change data
DATA
EDIT
DISPLAY
UTILITY
ARC COND ADJUSTMENT
CURR(A)
VOLT(%)
: 200 INST : ARCON
: 100 INST : ARCON
DATA
EDIT
DISPLAY
UTILITY
ARC COND ADJUSTMENT
CURR(A)
VOLT(%)
: 200 INST : ARCON
: 100 INST : ARCON
