YASKAWA NX100 User Manual

9 Arc Welding Application
9.4 Registering Arc Welding Instructions
9-21
149235-1CD
RE-CSO-A031

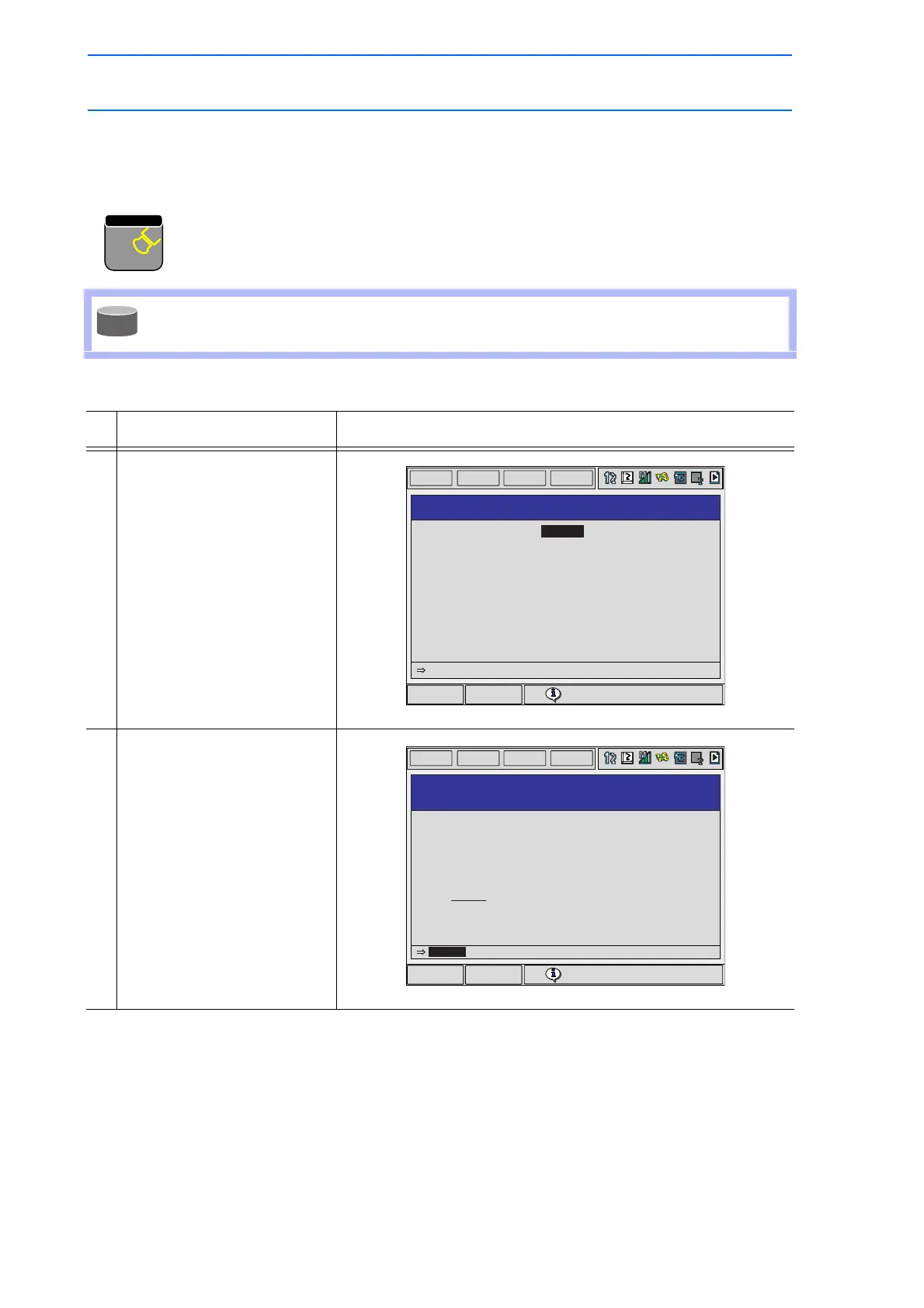

9.4.2 ARCOF
This is the instruction to turn OFF arc start signal to the Power Source to end welding.
The function key [ARCOF] can be used for registration.
Function key to register the arc end instruction (ARCOF)
 Registering the ARCOF Instruction
To register the ARCOF instruction using [INFORM LIST], select “DEVICE” from the
instruction group list.
Operation Explanation
1 Press [ARCOF].
2 Press [ENTER].
5
ARCOFF
GAS
SUPPLE
-MENT
DATA
EDIT
DISPLAY
UTILITY
Main Menu ShortCut
!Turn on servo power
DETAIL EDIT
ARCOF
ARCOF
SET METHOD
: UNUSED
JOB
EDIT
DISPLAY
UTILITY
Main Menu ShortCut
!Turn on servo power
JOB CONTENT
JOB NAME: WORK A
0000 NOP
0001 MOVJ VJ=80.00
0002 MOVL V=800
0003 ARCON
0004 MOVL V=50
0005 MOVL V=50
0006 MOVL V=50
0007 ARCOF
0008 MOVL V=800
0009 MOVJ VJ=80.00
0010 END
ARCOF
TOOL: 00
CONTROL GROUP: R1
STEP NO: 0003
364 of 493
