YASKAWA NX100 User Manual

9 Arc Welding Application
9.4 Registering Arc Welding Instructions
9-40
149235-1CD
RE-CSO-A031

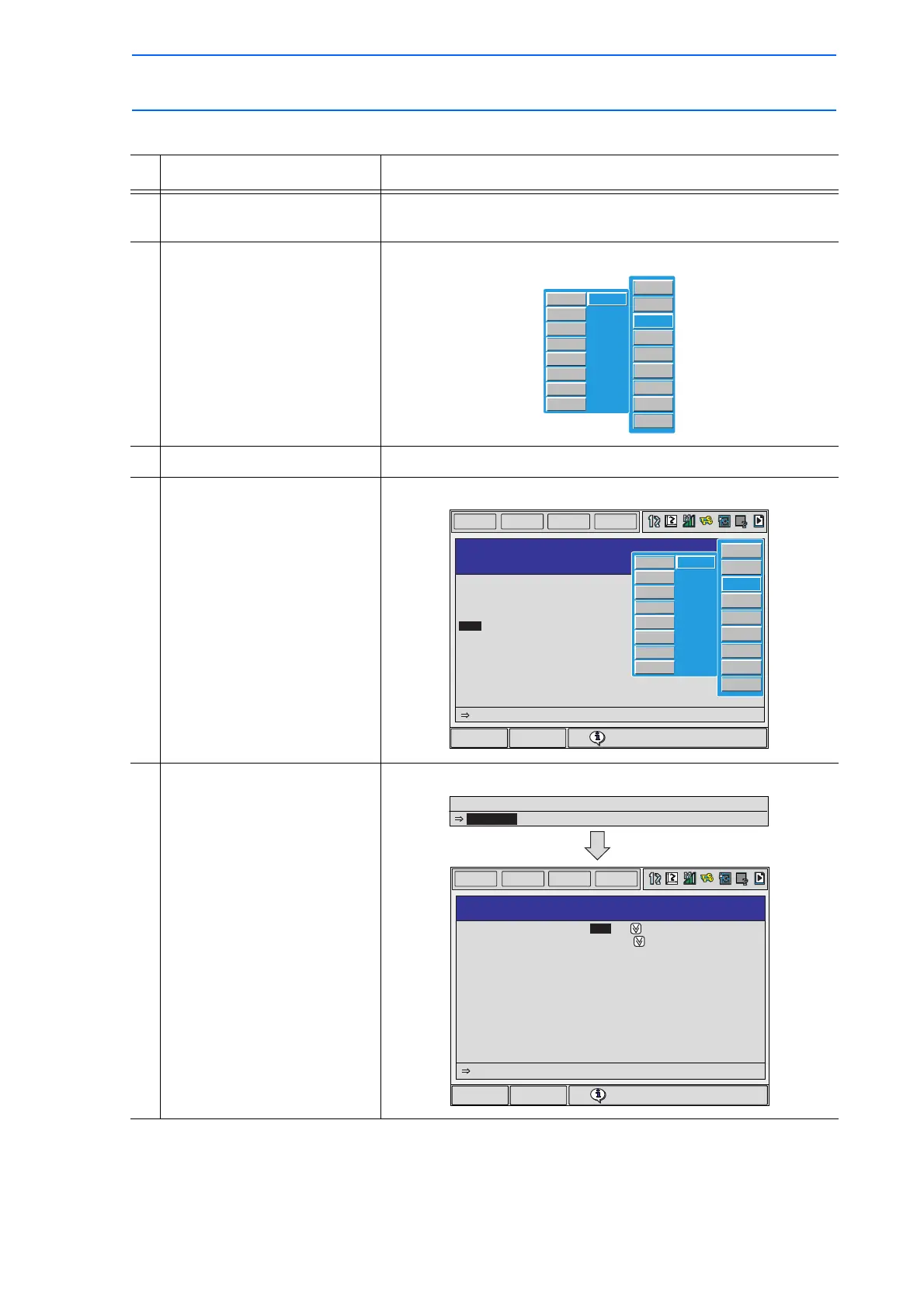

 Registering the ARCCTE Instruction
Operation Explanation
1 Move the cursor to the
address area.
2 Press [INFORM LIST]. The instruction list dialog box appears.
3 Select “DEVICE.”
4 Select the ARCCTE
instruction.
The ARCCTE instruction appears in the input buffer line.
5 Press [SELECT]. The DETAIL EDIT window appears.
OTHER
SAME
PRIOR
ARCON
ARCOF
VWELD
AWELD
ARCSET
WVON
WVOF
ARCCTS
ARCCTE
IN/OUT
CONTROL
DEVICE
MOTION
ARITH
SHIFT
ARCCTE AC=200 AVP=100
0000 NOP
0001 MOVJ VJ=80.00
0002 MOVL V=800
0003 ARCON
0004 MOVL V=50
0005 END
JOB
EDIT
DISPLAY
UTILITY
Main Menu ShortCut
! Turn on servo power
TOOL: 00
JOB CONTENT
STEP NO: 0003
JOB NAME: WORK A
CONTROL GROUP: R1
OTHER
SAME
PRIOR
ARCON
ARCOF
VWELD
AWELD
ARCSET
WVON
WVOF
ARCCTS
ARCCTE
IN/OUT
CONTROL
DEVICE
MOTION
ARITH
SHIFT
DEITAL EDIT
ARCCTE
ARCCTE AC=200 AVP=100
: AC= 200
: AVP= 100
: UNUSED
: UNUSED
: UNUSED
DATA
EDIT
DISPLAY
UTILITY
Main Menu ShortCut
! Turn on servo power
WELDING CURR
WELDING VOLT
SPEED
ANALOG OUTPUT3
ANALOG OUTPUT4
ARCCTE AC=200 AVP=100
383 of 493
