1 Introduction
1.2 Programming Pendant
1-11
149235-1CD
RE-CSO-A031

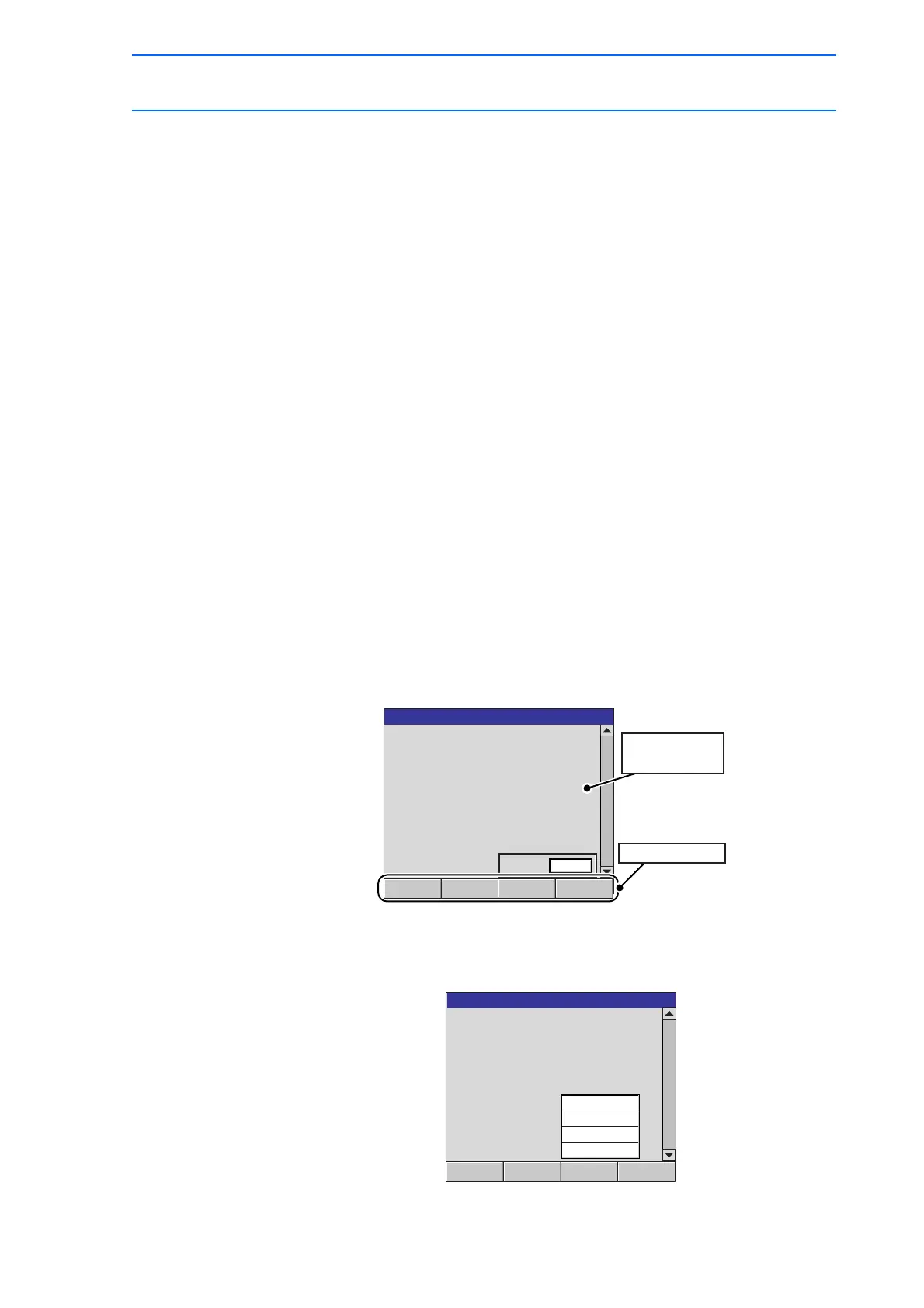

General-purpose Display Area
On the general-purpose display area, various settings and contents such as jobs and characteristics
files can be displayed and edited.
The operation buttons are also displayed at the bottom of the window according to the window
contents.
• To move the cursor to the operation button, press [AREA] + DOWN cursor key.
• To move the cursor to the general-purpose display area, press [AREA] + UP cursor key or
press [CANCEL].
• To move the cursor between the operation buttons, use the RIGHT or LEFT cursor key.
• To execute the operation button, move the cursor to the button and press [SELECT].
EXECUTE:
Continues operation with the displayed contents.
CANCEL:
Cancels the displayed contents and returns to the previous window.
COMPLETE:
Completes the setting operation displayed on the general-purpose display
area.
STOP:
Stops operation when loading, saving, or verifying with an external
memory device.
RELEASE:
Releases the overrun and shock sensor function.
RESET:
Resets an alarm. (Cannot reset major alarms.)
DIRECT PAGE:
Jumps to the appropriate page if the page can be switched.
• When the page can be switched by specifying the page number, the fol-
lowing input box appears when “DIRECT PAGE” is selected. Directly
type the desired page number and press [ENTER].
• When the page can be switched by selecting an item, the following selec-
tion list appears when “DIRECT PAGE” is selected. Select a desired item
using the UP and DOWN cursor key and press [ENTER].
JUMP TO:
PAGE
Operation buttons
