YASKAWA NX100 User Manual

9 Arc Welding Application
9.7 Editing Condition Files During the Play Mode
9-64
149235-1CD
RE-CSO-A031

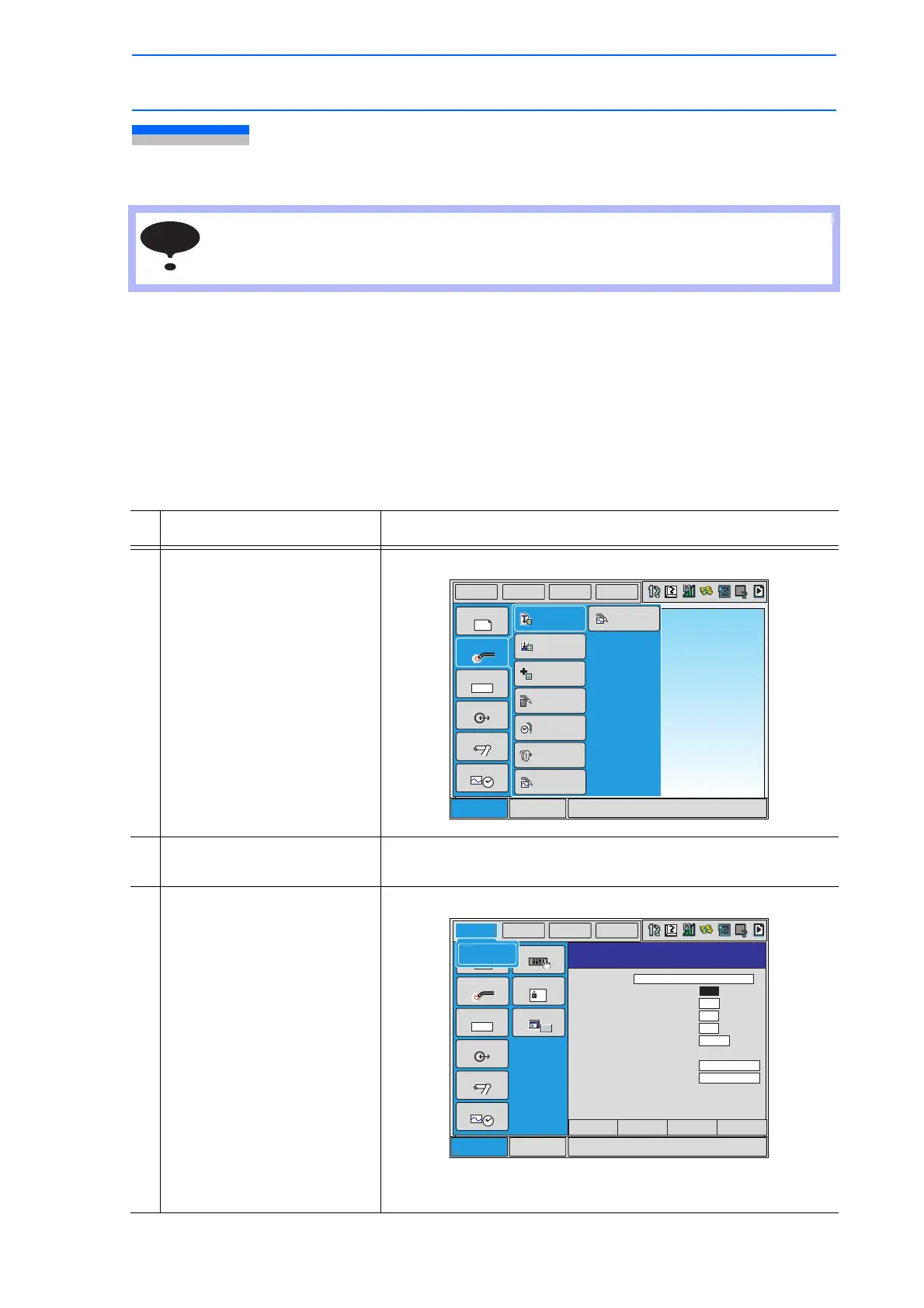

9.7 Editing Condition Files During the Play Mode
9.7.1 Function
The following condition files can be edited during the play mode.
• Arc start condition
• Arc end condition
• Arc auxiliary condition
To utilize the function, set the parameter to A1P20=1.
Operation Explanation
1 Select the condition file
window during the play mode.
Select {ARC WELDING} -->
{ARC START COND.} under
the main menu.
2 Move the cursor to each item
and edit the data.
3 Select {DATA} --> {MODIFY
COMARC COND} under the
pull-down menu.
* {MODIFY COMARC COND} is shown after editing the data.
NOTE
JOB
EDIT
DISPLAY
UTILITY
Main Menu ShortCut
ARC WELD DIAG.
JOB
DOUT
MOVE
END
IN/OUT
In Out
SYSTEM INFO
ARC WELDING
VARIABLE
B001
ROBOT
PARAMETER
WEAVING
ARC END COND.
POWER SOURCE
COND.
ARC WELD DIAG.
ARC START COND.
ARC AUX COND.
ARC MONITOR
ARC MONITOR
(SAMPL)
DATA
EDIT
DIPSLAY
UTILITY
Main Menu ShortCut
JOB
DOUT
MOVE
END
IN/OUT
In Out
SYSTEM INFO
ARC WELDING
VARIABLE
B001
ROBOT
PARAMETER
SETUP
DISPLAY SETUP
A
a
PAGE
MODIFY COMARC
COND
COMMENT
CURRENT
VOLTAGE
ROBOT PAUSE TIME
SPEED
RETRY
MODE
ARC FAILURE RESTART
WELDER CONTROL PRMTR
ARC START CONDITION
COND NO.: 1/396
: CONDITION1DONE
: 199 A
: 99 %
: 0.99 sec
: 99 cm/min
: OFF
: REPLAY
: NO RESTART
: NOT USED
407 of 493
