YASKAWA NX100 User Manual

9 Arc Welding Application
9.11 Weaving Condition File
9-81
149235-1CD
RE-CSO-A031
 Method to Prohibit Weaving by Means of a System Input Signal
The system input signal 40047 is used.
The system input signal can prohibit weaving at any time during a play operation, regardless of whether
or not it is a check operation.

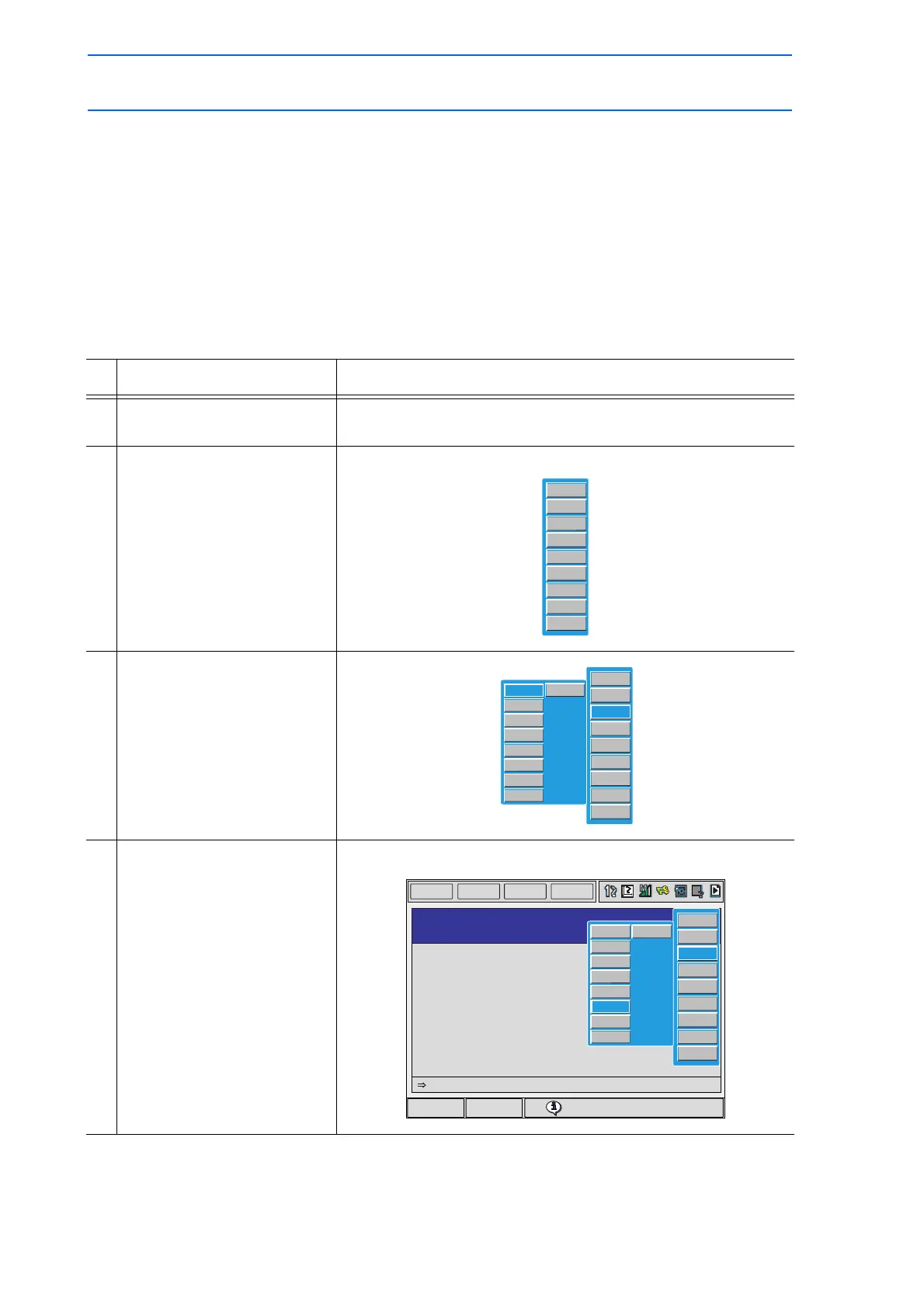

9.11.5 Registering Weaving Instructions
 WVON Instruction
This is the weaving start operation.
Operation Explanation
1 Move the cursor to the
address area.
2 Press [INFORM LIST]. The instruction list dialog box appears.
3 Select “DEVICE.”
4 Select the WVON instruction. The “WVON” instruction appears in the input buffer line.
IN/OUT
CONTROL
DEVICE
MOTION
ARITH
SHIFT
OTHER
SAME
PRIOR
IN/OUT
CONTROL
DEVICE
MOTION
ARITH
SHIFT
OTHER
SAME
PRIOR
ARCON
ARCOF
VWELD
AWELD
ARCSET
WVON
WVOF
ARCCTS
ARCCTE
JOB
EDIT
DISPLAY
UTILITY
Main Menu ShortCut
!Turn on servo power
WVON WEV#(1)
0000 NOP
0001 MOVJ VJ=80.00
0002 MOVL V=800
0003 ARCON
0004 MOVL V=50
0005 MOVL V=50
0006 ARCOF
0007 END
JOB CONTENT
JOB NAME: WORK A
TOOL: 00
CONTROL GROUP: R1
STEP NO: 0003
IN/OUT
CONTROL
DEVICE
MOTION
ARITH
SHIFT
OTHER
SAME
PRIOR
ARCON
ARCOF
VWELD
AWELD
ARCSET
WVON
WVOF
ARCCTS
ARCCTE
424 of 493
