YASKAWA NX100 User Manual

9 Arc Welding Application
9.11 Weaving Condition File
9-82
149235-1CD
RE-CSO-A031

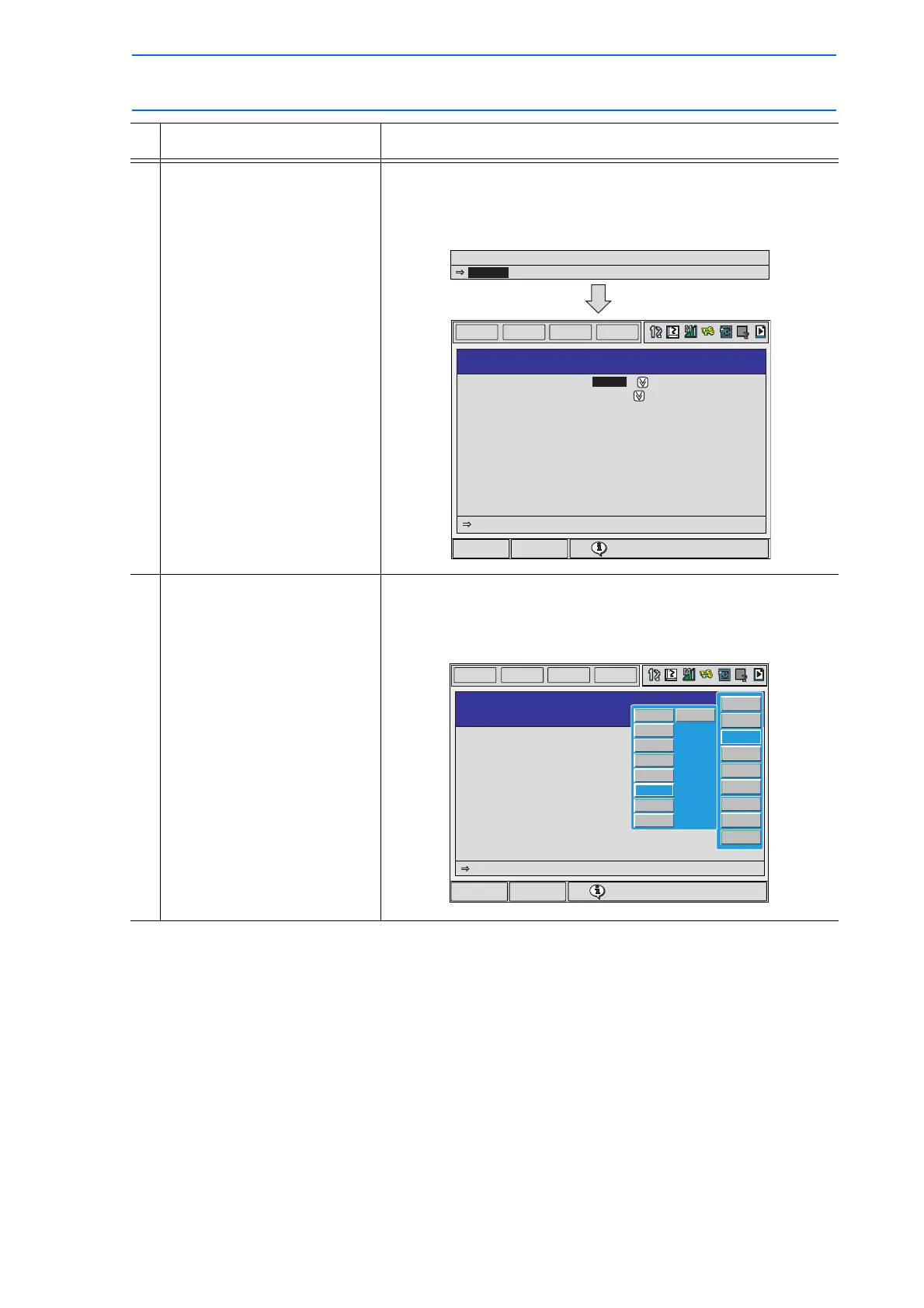

5 Press [SELECT], and set the
file number in the DETAIL
EDIT window.
Select the file number (1 to 16). Move the cursor to the file
number and press [SELECT]. Input the file number using the
Numeric keys and press [ENTER].
6 Press [ENTER]. The set contents are displayed in the input buffer line. Press
[ENTER] again to register the set contents in the job.
When the set contents are not to be registered, press [CANCEL]
to return to the JOB CONTENT window.
Operation Explanation
DATA
EDIT
DISPLAY
UTILITY
Main Menu ShortCut
!Turn on servo power
DETAIL EDIT
WVON
WVON WEV#(1)
: WEV#() 1
: WEV#(1)
: UNUSED
WEAVING FILE
SET METHOD
DIRECTION
WVON WEV#(1)
JOB
EDIT
DISPLAY
UTILITY
Main Menu ShortCut
!Turn on servo power
WVON WEV#(1)
0000 NOP
0001 MOVJ VJ=80.00
0002 MOVL V=800
0003 ARCON
0004 WVON WEV#(1)
0005 MOVL V=50
0006 MOVL V=50
0007 ARCOF
0008 END
IN/OUT
CONTROL
DEVICE
MOTION
ARITH
SHIFT
OTHER
SAME
PRIOR
ARCON
ARCOF
VWELD
AWELD
ARCSET
WVON
WVOF
ARCCTS
ARCCTE
JOB CONTENT
JOB NAME: WORK A
CONTROL GROUP: R1
