9 Arc Welding Application
9.11 Weaving Condition File
9-72
149235-1CD
RE-CSO-A031

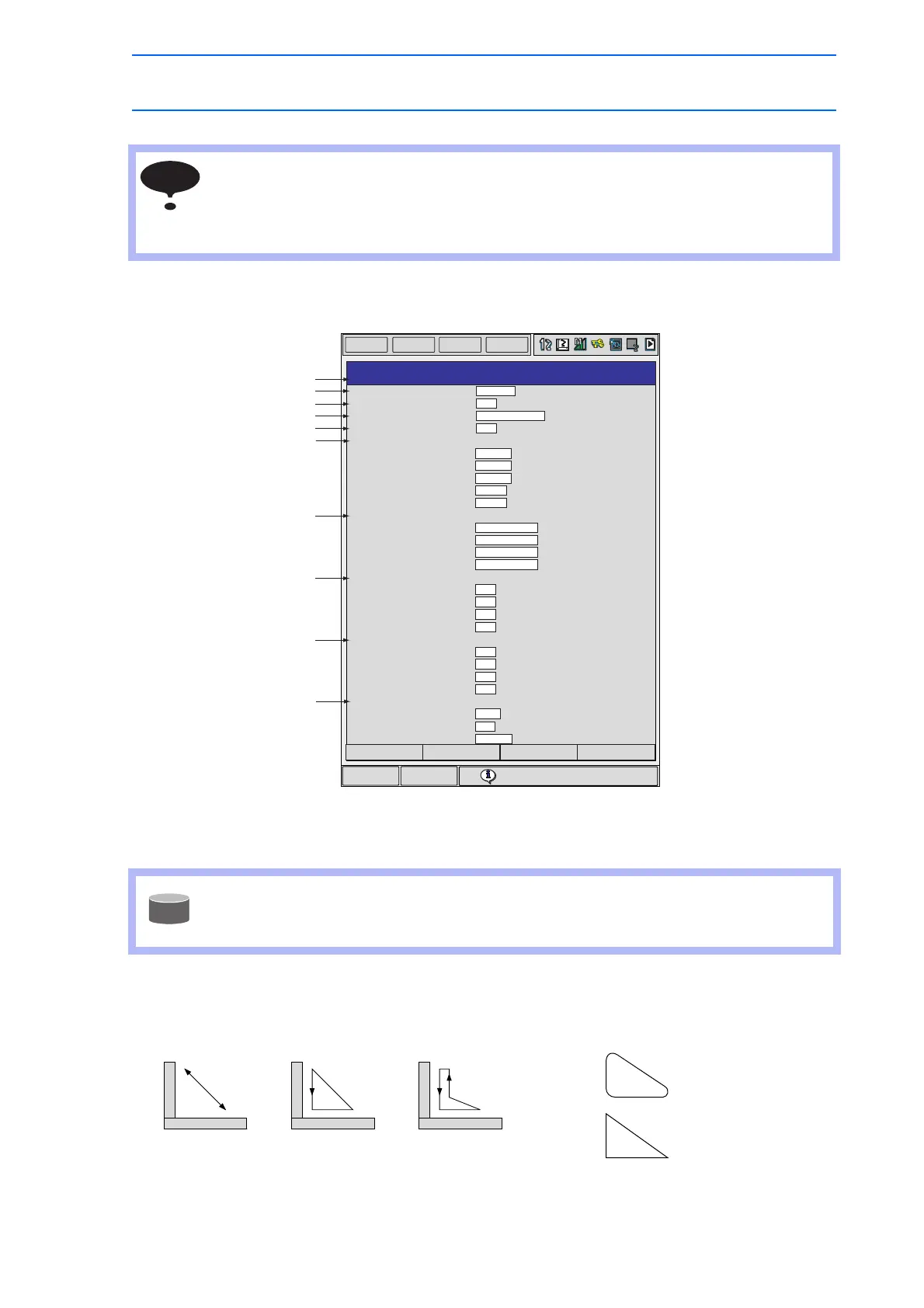

9.11.2 WEAVING CONDITION Window
COND NO. (1 to 255)
Displays a weaving condition file number between 1 and 255.
MODE, SMOOTH
There are three weaving modes: single oscillation, triangle oscillation, and L-type
oscillation. Each mode can be specified with or without smoothing.
Depending on the mounting status and shape of the workpiece, a definition of the above
coordinate system may not be sufficient to generate a weaving pattern. In that case,
register the reference point REFP 1 or REFP 2. For details, refer to " Cases that
Require the Registration of Reference Points " in section 9.11.3 "Editing the Weaving
Condition Files".
The number of weaving condition files
• Standard software version Ver. 4.00.00A (
)-00 or greater: 255
• Version previous to above mentioned Version : 16
NOTE
DATA
EDIT
DISPLAY
UTILITY
Main Menu ShortCut
!Turn on servo power
WEAVING CONDITION
COND NO. 1/255
MODE
SMOOTH
SPEED TYPE
FREQUENCY
<PATTERN>
AMPLITUDE
VERTICAL
HORIZONTAL
ANGLE
TRAVEL ANGLE
<TIMER MODE>
POINT1
POINT2
POINT3
POINT4
<MOTION TIME>
SECTION1
SECTION2
SECTION3
SECTION4
<STOP TIMER>
POINT1
POINT2
POINT3
POINT4
<HOVER WEAVING COND.>
SET
TIMER
INPUT SIGNAL
: SINGLE
: ON
: MOVING TIME
: 3.5 Hz
: 2.000 mm
: 10.000 mm
: 10.000 mm
: 45.00 deg.
: 5.00 deg.
: WEAV STOP
: WEAV STOP
: WEAV STOP
: WEAV STOP
: 0.1 sec
: 0.1 sec
: 0.1 sec
: 0.1 sec
: 0.0 sec
: 0.0 sec
: 0.0 sec
: 0.0 sec
: OFF
: 0.0 sec
: IN#000
DIRECT PAGE
SUPPLE
-MENT
Single
oscillation
Triangle
oscillation
L-type
oscillation
0: With smoothing
1: Without smoothing
Weaving Modes Smoothing
