9 Arc Welding Application
9.5 Welding Condition Files
9-53
149235-1CD
RE-CSO-A031
9.5.7 Enhanced Arc End Condition File
COND.NO.(1 to 396)
Displays a condition file number between 1 and 396.
COMM.
Displays a comment of 32 characters or less.
CRATER CONDITION 1, CRATER CONDITION 2
Crater condition referred to at the end of welding. “CRATER CONDITION 1” is executed
before “CRATER CONDITION 2.”
CURRENT (1 to 999A)
Welding current output value at the end of welding.
VOLTAGE (0 to 50.0V, 50 to 150%)
Welding voltage output value at the end of welding.
ANALOG OUTPUT 3 CMD (-14.0 to 14.0V)
The reference value to the Power Source through the analog output 3.
ANALOG OUTPUT 4 CMD (-14.0 to 14.0V)
The reference value to the Power Source through the analog output 4.
ROBOT PAUSE TIME(0 to 10.00 seconds)
The duration at the end of welding when the specified “CRATER CONDITION” is retained.
ANTI-STICK
Specifies whether the automatic wire anti-stick function is used or not.
MONITORING(0 to 9.9 seconds)
Specifies wire stick monitoring time at the end of welding.
WELDER CONTROL PRMTR (0000 to 9999, 10000: NOT USED)
At the beginning of welding, the value (0 to 9999) specified in the “WELDER CONTROL
PRMTR” is output to the following system register. At the end of welding, the same welder
control parameter can be specified, overwriting the same system register.
System register for each application “WELDER CONTROL PRMTR“
M468: device 1
M478: device 2
M488: device 3
M498: device 4
*Set the value to 10000 when “WELDER CONTROL PRMTR” is not used.

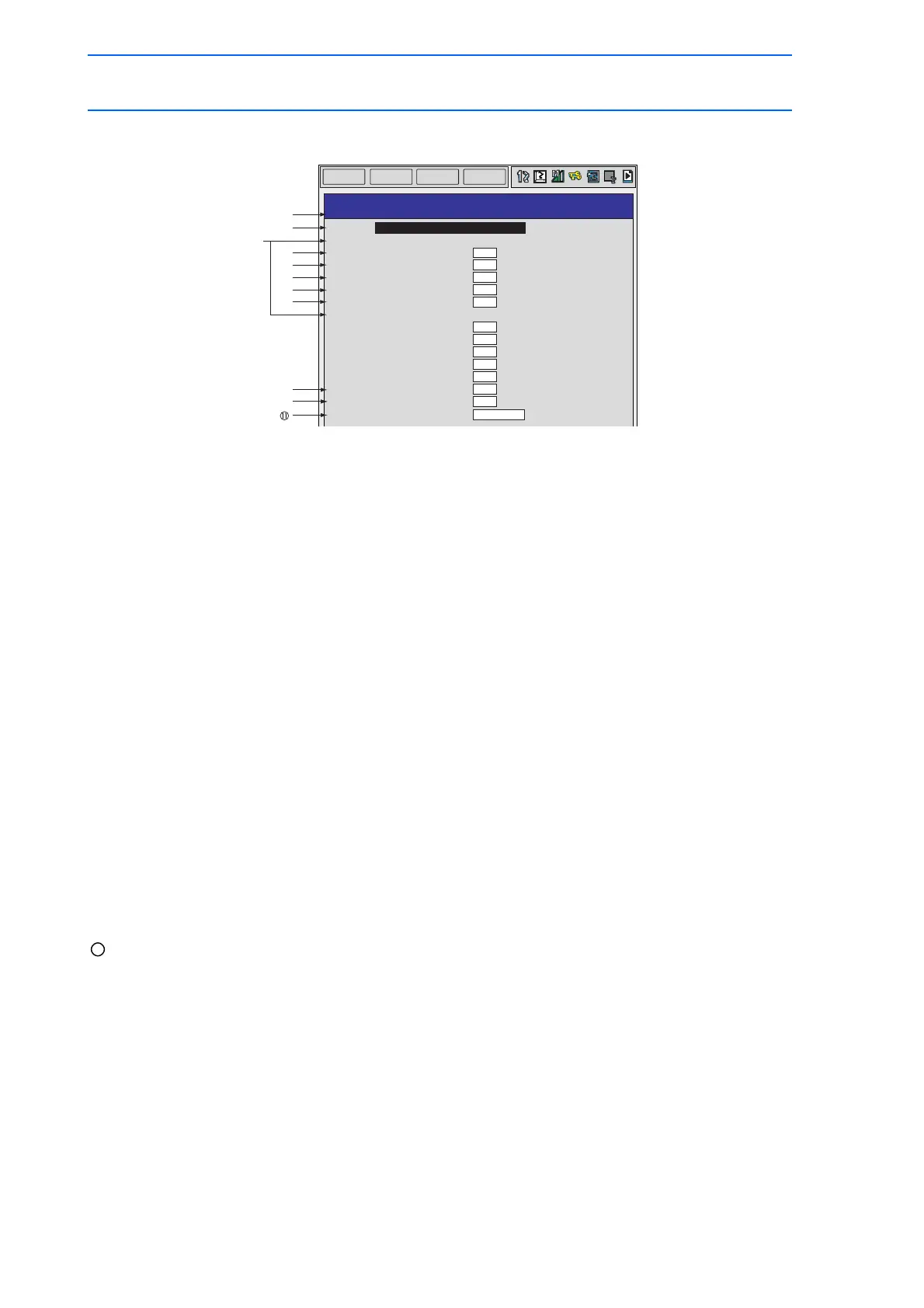

DATA
EDIT
DISPLAY
UTILITY
ARC END CONDITION
COND NO.: 1/396
COMM.: AL Tig Welding
<CRATER CONDITION 1>
CURRENT
VOLTAGE
ANALOG OUTPUT 3 CMD
ANALOG OUTPUT 4 CMD
ROBOT PAUSE TIME
<CRATER CONDITION 2>
CURRENT
VOLTAGE
ANALOG OUTPUT 3 CMD
ANALOG OUTPUT 4 CMD
ROBOT PAUSE TIME
ANTI-STICK
MONITORING
WELDER CONTROL PRMTR
: 200 A
: 100 %
: 0.00 V
: 0.00 V
: 0.00 sec
: 200 A
: 100 %
: 0.00 V
: 0.00 V
: 0.00 sec
: OFF
: 0.2 sec
: NOT USED
To Next Page
