9 Arc Welding Application
9.5 Welding Condition Files
9-54
149235-1CD
RE-CSO-A031

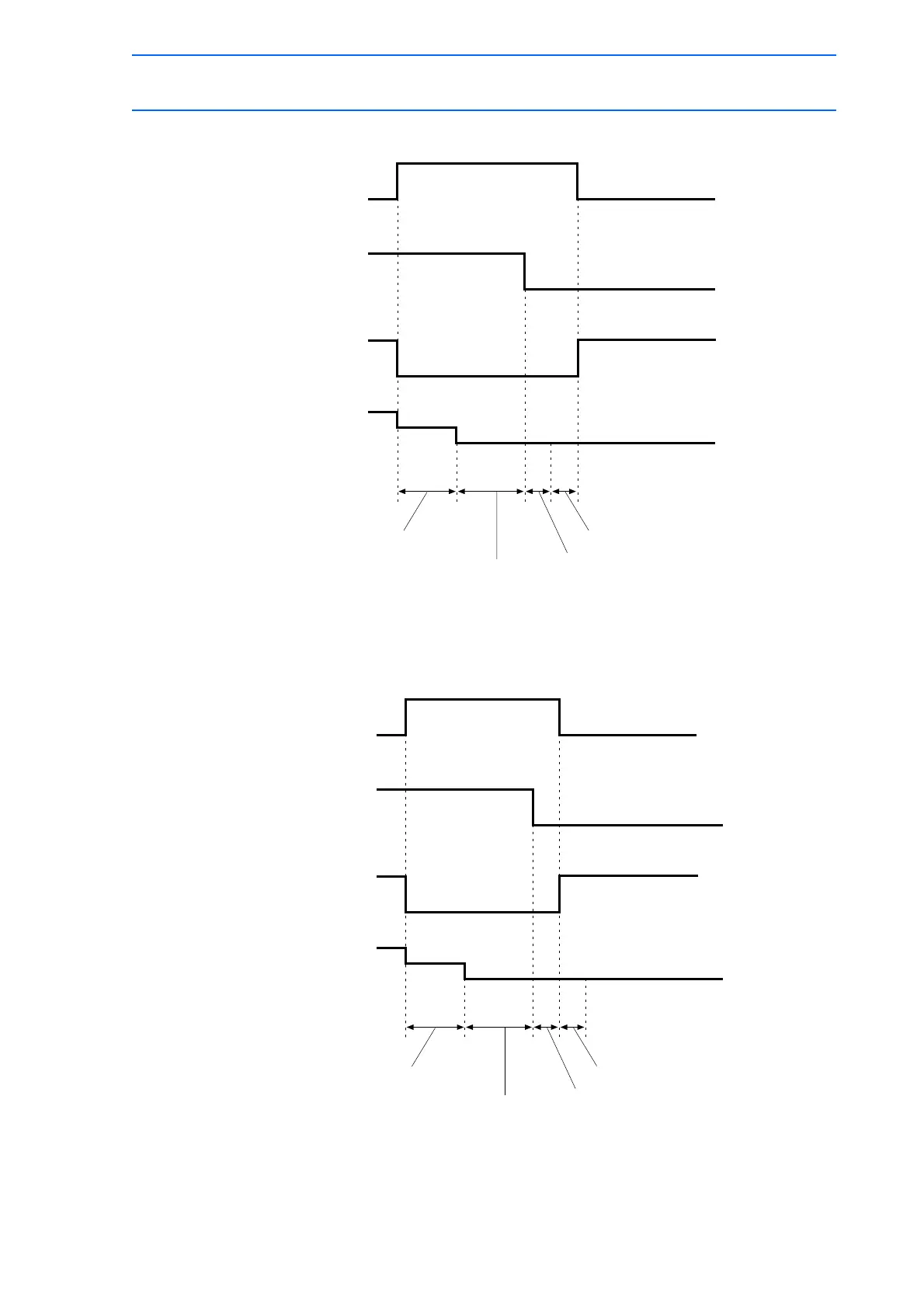

The timing chart at execution of the Enhanced arc end condition file is shown below.
Shown below is the timing chart of when the automatic wire anti-stick function is set to invalid with the
standard software version NS3.97.00A ()-00 or later.
Manipulator pause time of
crater condition 1
Wire stick release time
Crater
condition 1
Arc start
confirmation signal
Manipulator move section
Current, voltage and analog
output specifications
ARCOF executed
Crater
condition 2
Manipulator pause time of
crater condition 2
(Manipulator retreat motion section)
Wire stick monitoring time
Manipulator pause time of
crater condition 1
Wire stick release time
Crater
condition 1
Arc start
confirmation signal
Manipulator move section
Current, voltage and analog
output specifications
ARCOF executed
Crater
condition 2
Manipulator pause time of
crater condition 2
(Manipulator retreat motion section)
Wire stick monitoring time
