YASKAWA NX100 User Manual

9 Arc Welding Application
9.4 Registering Arc Welding Instructions
9-36
149235-1CD
RE-CSO-A031

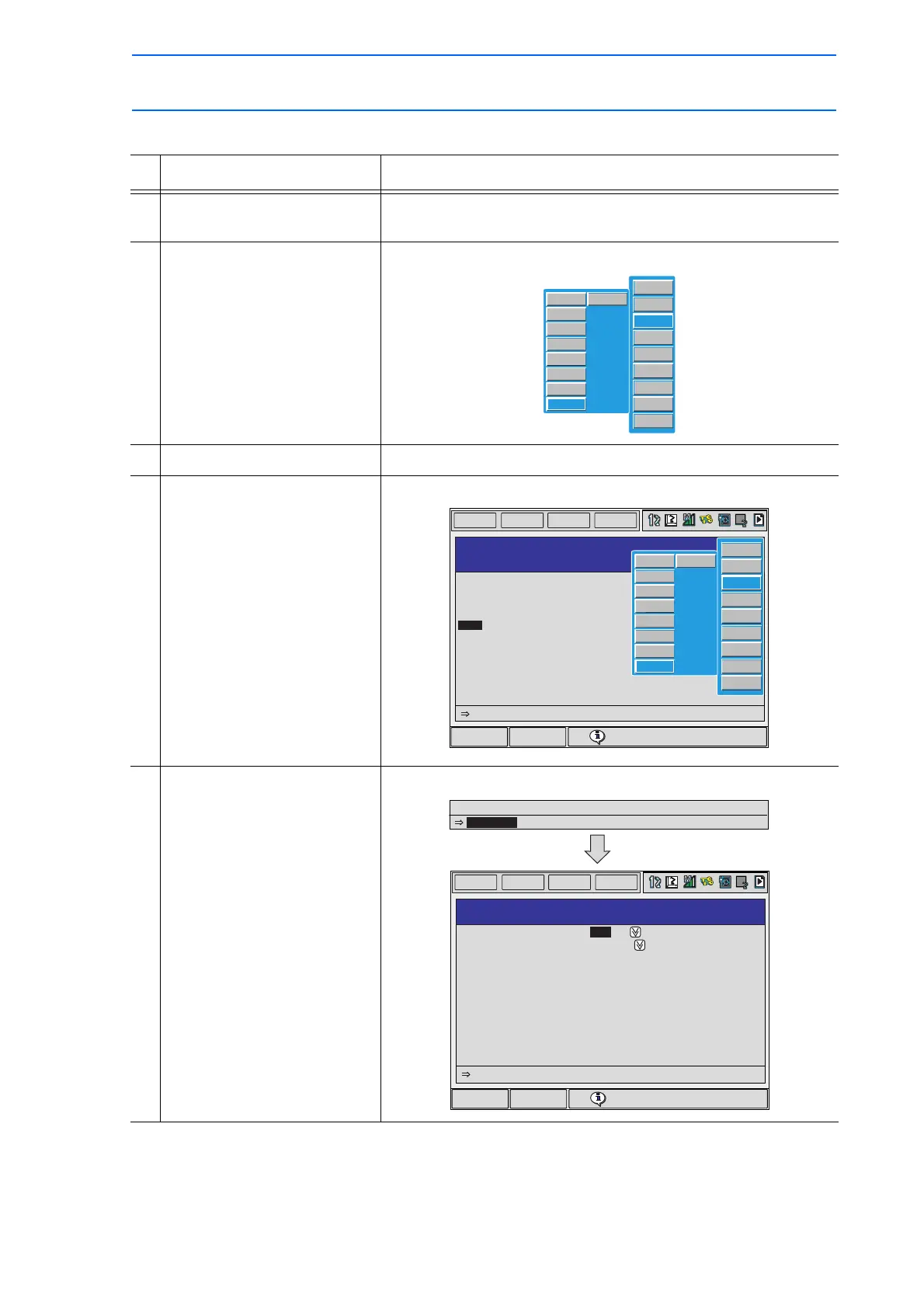

 Registering the ARCCTS Instruction
Operation Explanation
1 Move the cursor to the
address area.
2 Press [INFORM LIST]. The instruction list dialog box appears.
3 Select “DEVICE.”
4 Select the ARCCTS
instruction.
The ARCCTS instruction appears in the input buffer line.
5 Press [SELECT]. The DETAIL EDIT window appears.
OTHER
SAME
PRIOR
ARCON
ARCOF
VWELD
AWELD
ARCSET
WVON
WVOF
ARCCTS
ARCCTE
IN/OUT
CONTROL
DEVICE
MOTION
ARITH
SHIFT
JOB
EDIT
DISPLAY
UTILITY
Main Menu ShortCut
! Turn on servo power
SHIFT
ARCCTS AC=200 AVP=100
0000 NOP
0001 MOVJ VJ=80.00
0002 MOVL V=800
0003 ARCON
0004 MOVL V=50
0005 END
JOB CONTENT
JOB NAME: WORK A
TOOL: 00
CONTROL GROUP: R1
STEP NO: 0003
OTHER
SAME
PRIOR
ARCON
ARCOF
VWELD
AWELD
ARCSET
WVON
WVOF
ARCCTS
ARCCTE
IN/OUT
CONTROL
DEVICE
MOTION
ARITH
SHIFT
DETAIL EDIT
ARCCTS
ARCCTS AC=200 AVP=100
: AC= 200
: AVP= 100
: UNUSED
: UNUSED
: UNUSED
DATA
EDIT
DISPLAY
UTILITY
Main Menu ShortCut
! Turn on servo power
WELDING CURR
WELDING VOLT
SPEED
ANALOG OUTPUT3
ANALOG OUTPUT4
ARCCTS AC=200 AVP=100
