4 Playback
4.5 Playback with Reserved Start
4-25
149235-1CD
RE-CSO-A031

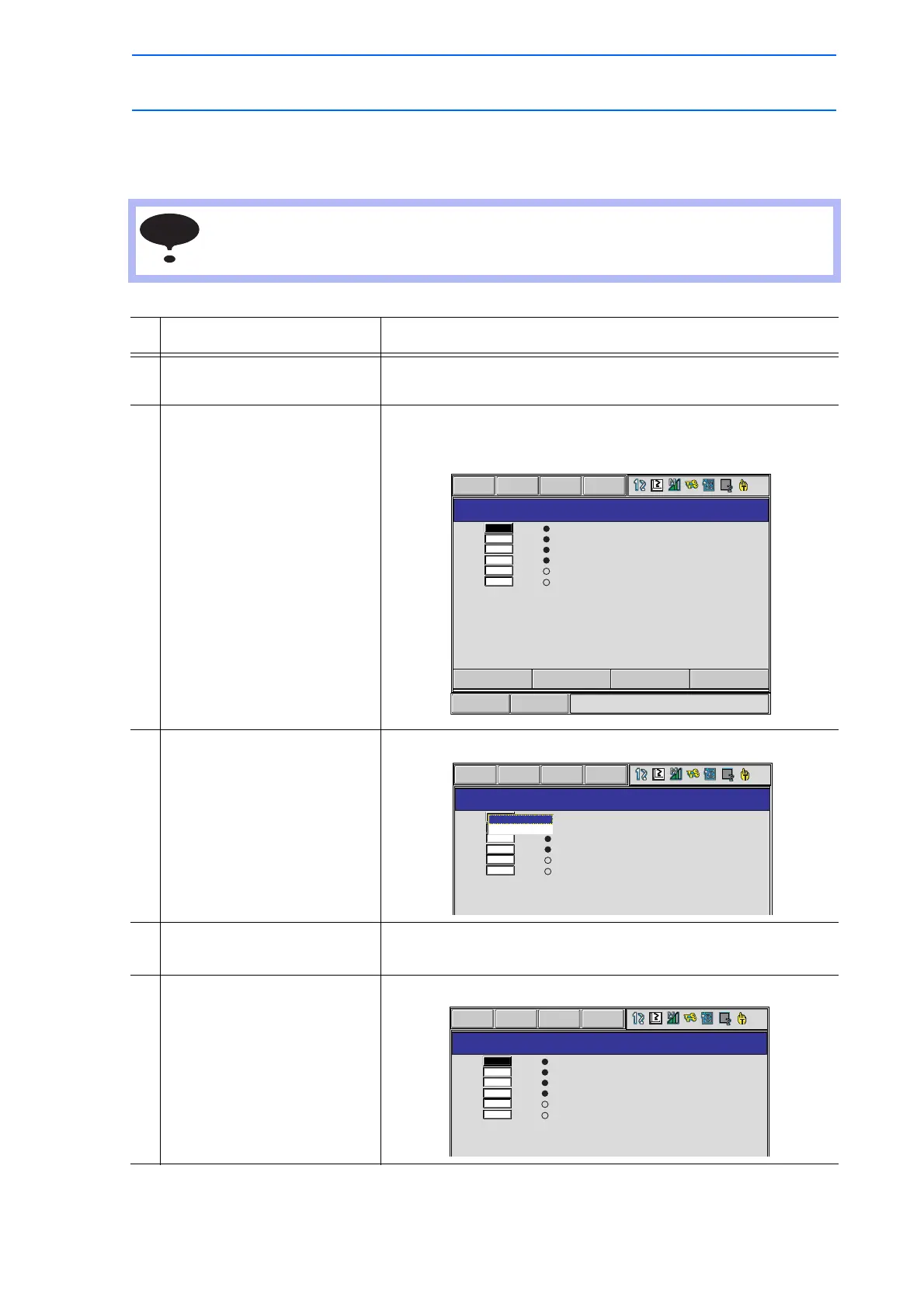

Registering Jobs to Stations
Register the starting job of each station.
This operation can be done only when the operation mode is teach mode and the setting of
“RESERVED START JOB CHANGE” is “PERMIT” in the OPERATING CONDITION
window.
Operation Explanation
1 Select {JOB} under the main
menu.
2 Select {RES. START(JOB)}. The RESERVED START (JOB) window appears.
indicates that the input/output number is registered.
indicates that the input/output number is not registered.
3 Select job name for each
station.
The selection dialog box appears.
4
Select “SETTING START
JOB
.”
The JOB LIST window appears.
5 Select a job. The starting job is registered.
NOTE
Short Cut
Main Menu
RESERVED START (JOB)
NO.
JOB NAME CONNECTION
1
2
3
4
5
6
DATA
EDIT
DISPLAY UTILITY
RESERVED START (JOB)
NO.
JOB NAME CONNECTION
1
2
3
4
5
6
AA
DATA EDIT DISPLAY UTILITY
SETTING START JOB
CANCEL START JOB
RESERVED START (JOB)
NO.
JOB NAME CONNECTION
1
2
3
4
5
6
JOB1
DATA EDIT DISPLAY UTILITY
