3 Teaching
3.2 Teaching Operation
3-18
149235-1CD
RE-CSO-A031

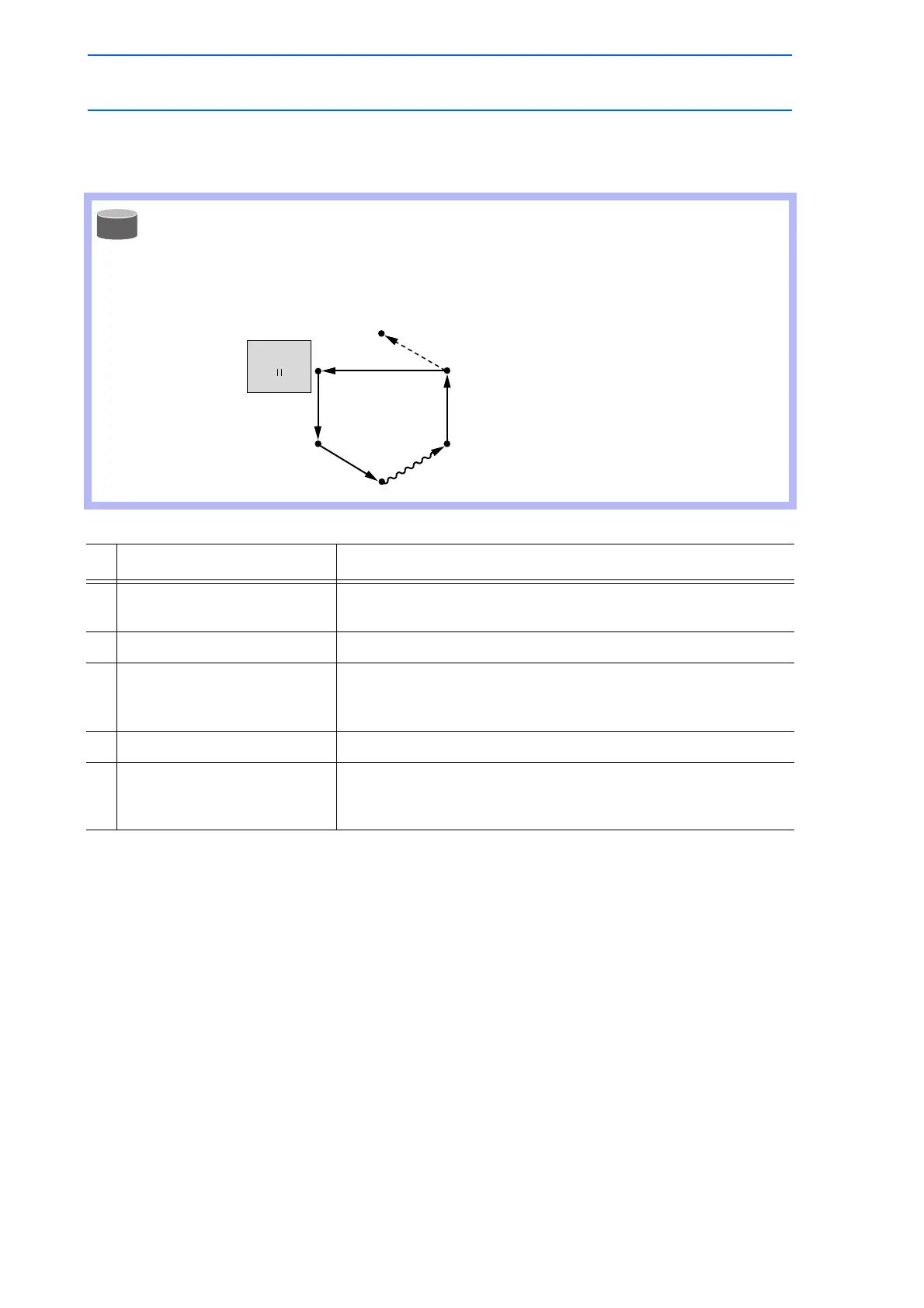

3.2.4 Overlapping the First and Last Steps
Why is overlapping the first and last step necessary?
Assume that the job shown below is to be repeated. The manipulator moves from the last
step (Step 6) to the first step (Step 1). If Step 6 and Step 1 are the same position, the
manipulator moves directly from Step 5 to Step 1, thereby improving work efficiency.
Operation Explanation
1 Move the cursor to the first
step line.
2 Press [FWD]. The manipulator moves to the first step position.
3 Move the cursor to the last
step line.
The cursor starts blinking. When the cursor line position and the
manipulator position are different in the JOB CONTENT window,
the cursor blinks.
4 Press [MODIFY]. The key lamp lights.
5 Press [ENTER]. The position data for the first step is registered on the line of the
last step. At this time, only the position data can be changed in
the last step. Interpolation type and play speed do not change.
SUPPLE
-MENT
Step 2
Step 3
Step 4
Step 5
The position of step 6 is changed
to overlap with step 1.
Step 6
Step 6 after
change
Step 1
