9 Arc Welding Application
9.12 Power Source Condition File
9-88
149235-1CD
RE-CSO-A031
9.12.3 POWER SOURCE CONDITION Window
A Power Source condition data file has the following two windows:
• POWER SOURCE CONDITION Window
• POWER SOURCE CONDITION Window (for current/voltage output)
POWER SOURCE CONDITION Window
POWER SOURCE NO. (1 to 4)
Displays a Power Source number between 1 and 4 (for each welder).
SETTING
If this file is modified, the status automatically changes to “NONE,” indicating that the
modification is not saved yet. To save the modification to the file, move the cursor to
“SETTING” and press [SELECT]. Then the status changes to “DONE.”
POWER SOURCE NAME
Displays a Power Source name of 16 characters or less.
COMMENT
Displays a comment of 32 characters or less.
POWER SUPPLY (A/V, A/%)
When “A/%” is displayed: Measured values of voltage can be input by the unit of “%” for “
MEASURE” in the POWER SOURCE CONDITION window for
current/voltage output shown in the next page.
When “A/V” is displayed: Measured values of voltage can be input by the unit of “V” for “
MEASURE” in the POWER SOURCE CONDITION window for
current/voltage output shown in the next page.
*To switch between “A/%” and “A/V” in the POWER SOURCE CONDITION window, select
[DATA] -> [READING] to read the initial value file (maker offer) or user registered file once
again.
*This function is available for the standard software version NS4.00.00A ()-00 or later.
SHIELDING GAS (CO2,MAG)
Specifies the shielding gas type.
WIRE DIA. (0 to 9.9mm
Φ)
Specifies the wire diameter.
WIRE STICKOUT (0 to 99mm)
Specifies the length of the welding wire protruding from the torch tip.
DATA
EDIT
DISPLAY
UTILITY

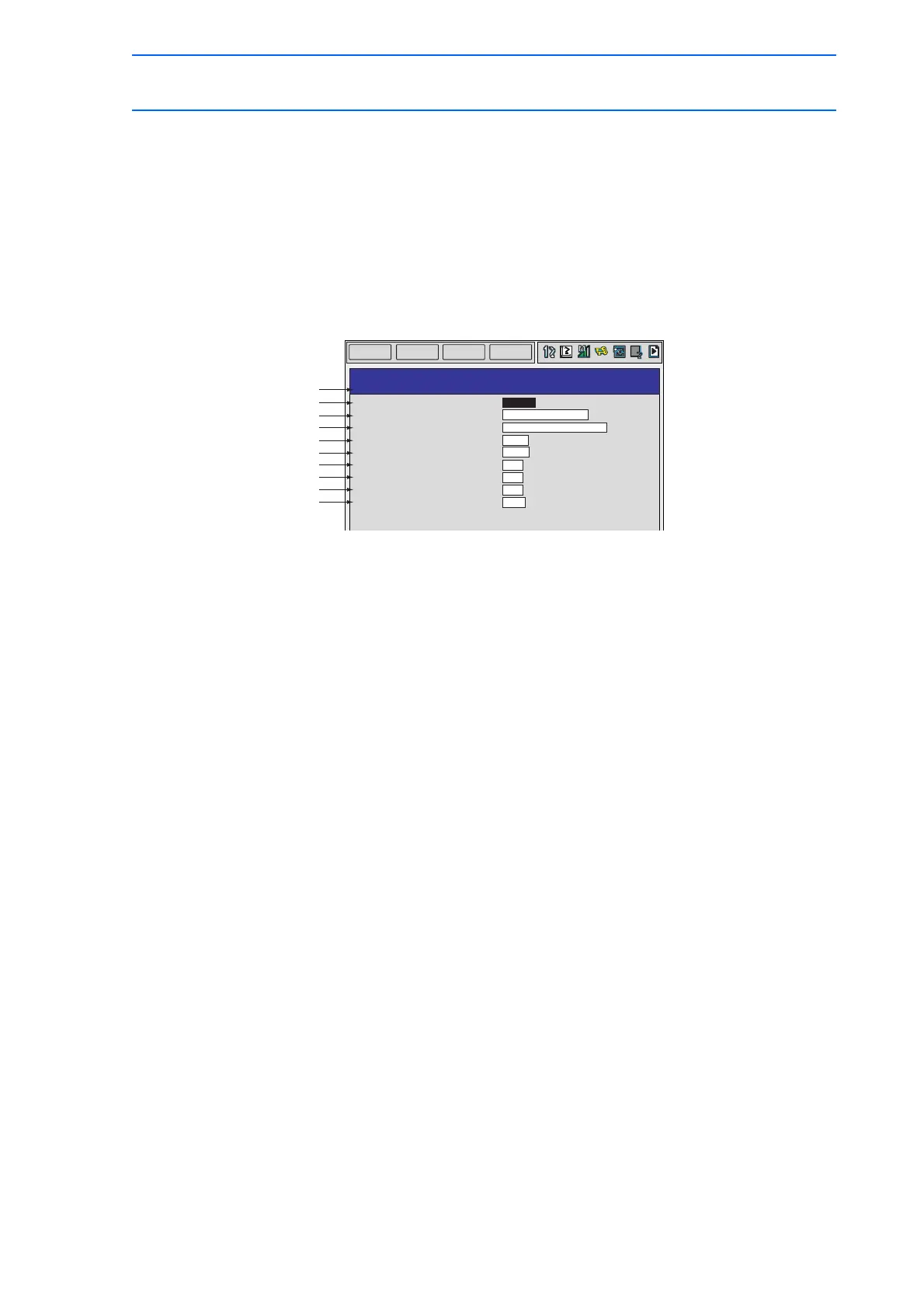

POWER SOURCE CONDITION
POWER SOURCE NO.: 1/1
SETTING
POWER SOURCE NAME
COMM.
POWER SUPPLY
SHIELDING GAS
WIRE DIA.
WIRE STICKOUT
WIRE ANTI-STICKING
ARC FAILURE STOP
: DONE
: MOTOWELD-E350
: STC CONTROL NONE
: A/%
: CO2
: 0.1 mm
: 15 mm
: 0.1 sec
: 1.50 sec
To Next Page
