S2C299: I/O VARIABLE CUSTOMIZE FUNCTION
This function enables registration of any particular input/output signal/variable. Reference and editing of
signals/variables are possible on the same window.
With this function valid, the sub-menu {I/O-VARIABLE CUSTOMIZE} opens under the main menu {ARC
WELDING}, {SPOT WELDING}, {GENERAL}, {HANDLING} (differs by application). Select {I/O-
VARIABLE CUSTOMIZE}, and the I/O-VARIABLE CUSTOMIZE window appears as shown below.

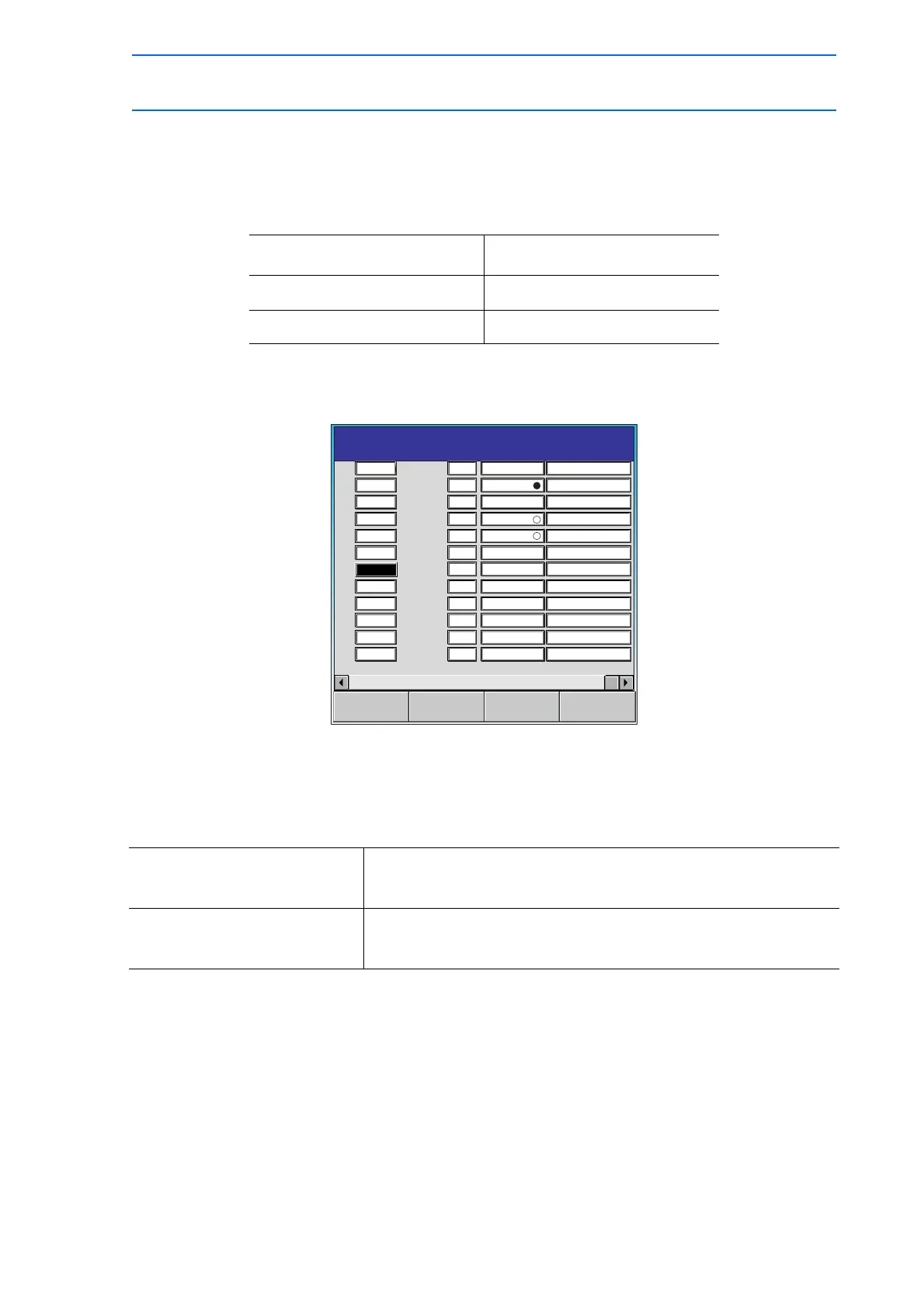

I/O-VARIABLE CUSTOMIZE Window
On the I/O-VARIABLE CUSTOMIZE window, any of the input/output signals/variables can be selected
and registered (up to 32 items). Registrable signals/variables are as follows:
The contents and names of the registered signals/variables can be checked and edited on this window.
In addition, the data list of registered signals/variables can be loaded, saved, verified or deleted with an
external memory unit.
Only when this function is valid, “I/O-VARIABLE CUSTOMIZE (file name: USRIOVAR.DAT)” is
displayed and can be selected. To display the “I/O-VARIABLE CUSTOMIZE (file name:
USRIOVAR.DAT)”, select {FD/CF} {LOAD} {SAVE} {VERIFY} {DELETE} {SYSTEM DATA}
S2C299
Parameter Setting Value Valid/Invalid
0 Function Invalid
1 Function Valid
Registrable Items on the I/O-VARIABLE CUSTOMIZE Window
Input/Output Signals
USER INPUT SIGNAL
USER OUTPUT SIGNAL
PSEUDO INPUT SIGNAL
Variables
BYTE TYPE VARIABLE (B VARIABLE)
INTEGER TYPE VARIABLE (I VARIABLE)
DOUBLE-PRECISION INTEGER TYPE VARIABLE (D VARIABLE)
I/O-VARIABLE CUSTOMIZE
No I/O-VARIABLE CONTENTS NAME
01
02
03
04
05
06
07
08
09
10
11
12
B001
#10011
D002
#82015
#00010
I000
OUT#0002
IN#0001
SIM
250
123456789
500
BYTE001
OUT0002
DOUBLE002
CMD REMOTE SEL
IN0001
INTEGER000
