YASKAWA NX100 User Manual

6 Convenient Functions
6.4 PAM Function
6-38
149235-1CD
RE-CSO-A031

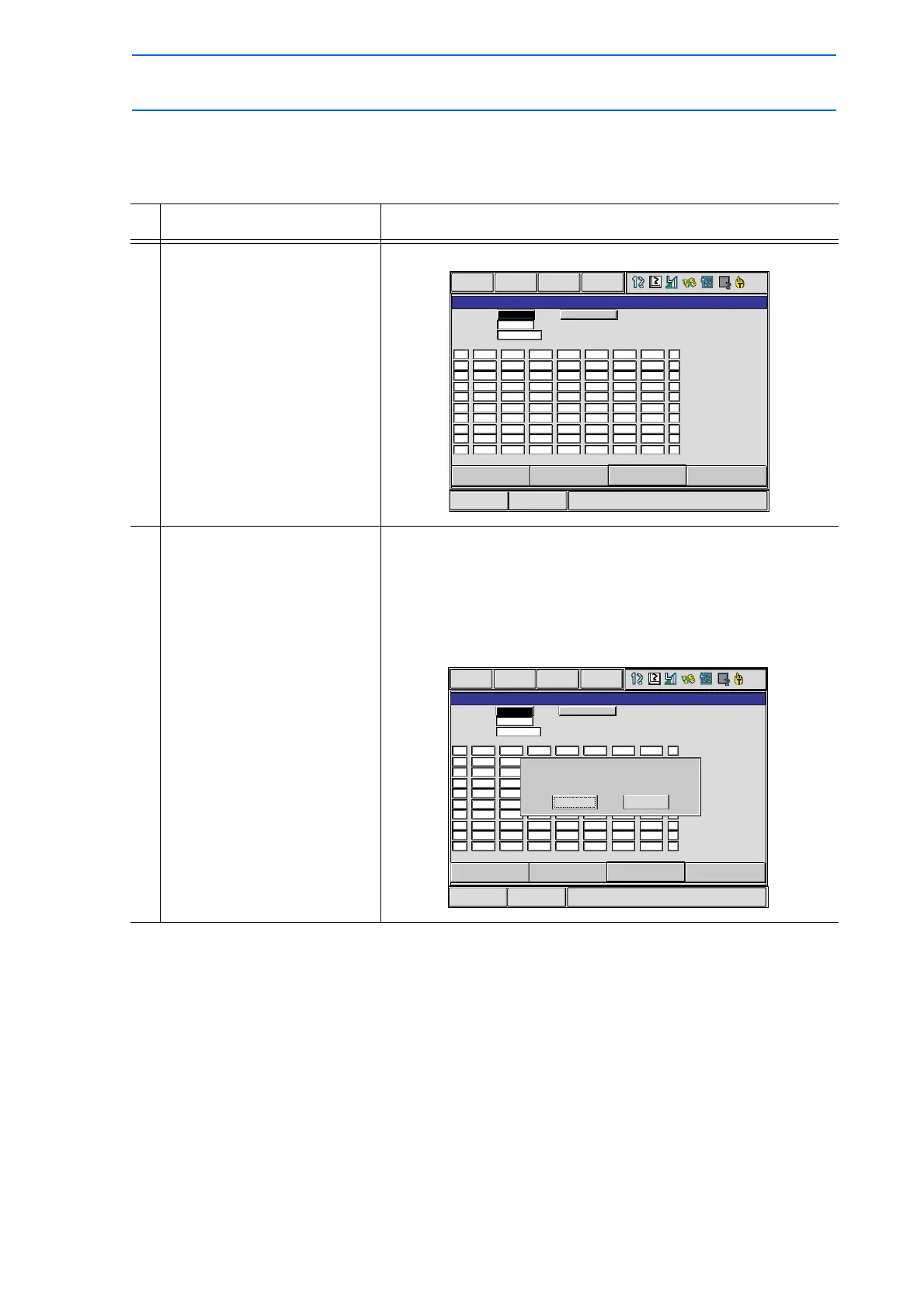

 Executing the Adjustment
Executing the Adjustment
Operation Explanation
1 Touch “COMPLETE” on the
screen.
The confirmation dialog box appears.
2 Select “YES.” In the teach mode, the job adjustment can be immediately
executed. In the play mode, the job can be adjusted just before
execution (move operation).
When the job adjustment is completed, the set data shown in the
PAM window is cleared. However, if the step’s adjusted position
exceeds the software limit, an error occurs, and the data in only
that step cannot be cleared on the window.
