YASKAWA NX100 User Manual

3 Teaching
3.7 Editing Jobs
3-54
149235-1CD
RE-CSO-A031

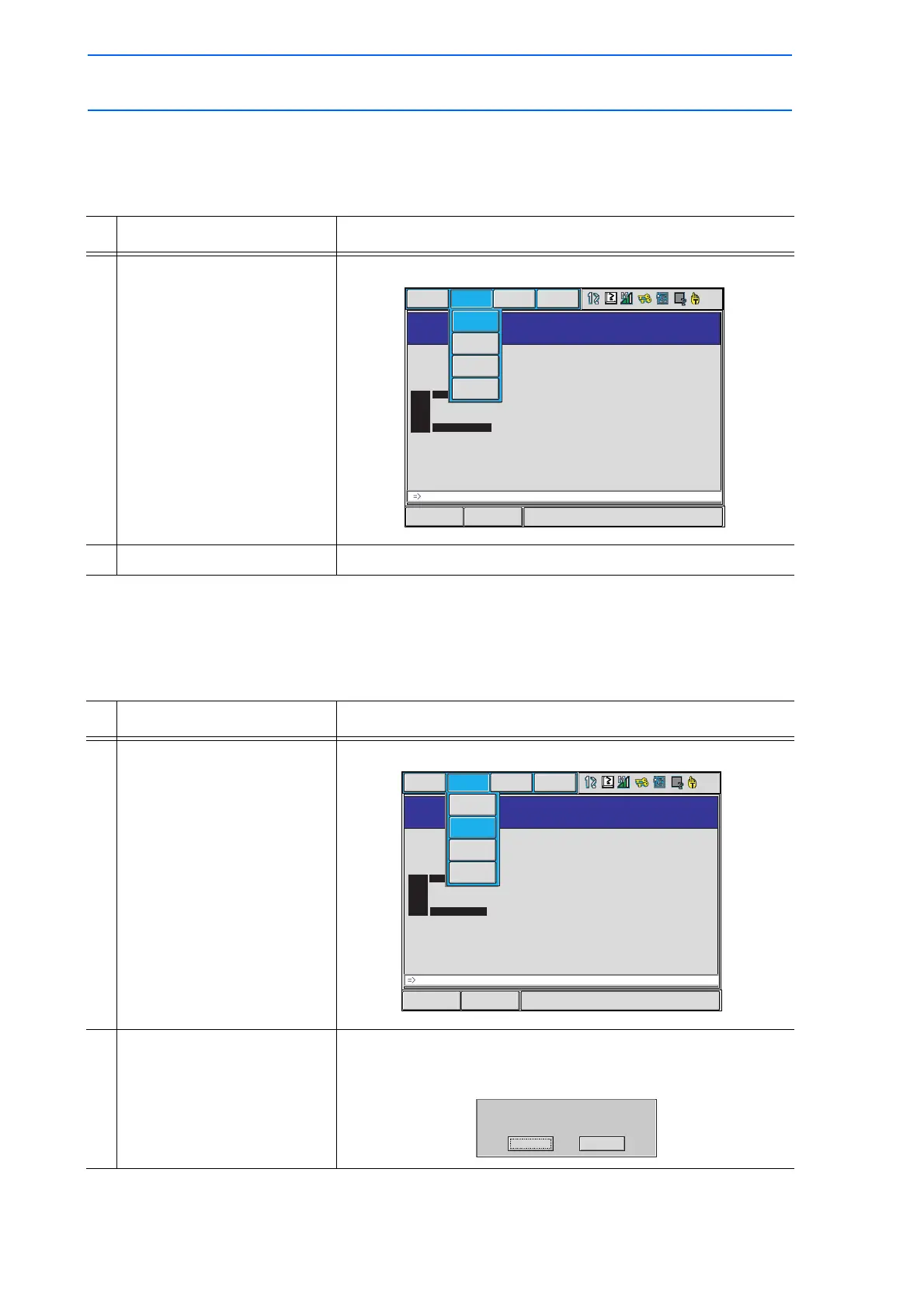

3.7.2 Copying
Before copying, the range to be copied has to be specified.
3.7.3 Cutting
Before cutting, the range to be cut has to be specified.
Operation Explanation
1 Select {EDIT} under the menu. The pull-down menu appears.
2 Select {COPY}. The specified range is copied to the buffer.
Operation Explanation
1 Select {EDIT} under the menu. The pull-down menu appears.
2 Select {CUT}. The confirmation dialog box appears. When “YES” is selected,
the specified range is deleted and copied to the buffer.
When “NO” is selected, the cutting operation is cancelled.
Short Cut
Main Menu
JOB CONENT
JOB NAMETEST01
CONTROL GROUPR1
0000
0001
0002
0003
0004
0005
0006
0007
0008
0009
0010
0011
0012
NOP
SET B000 0
SET B001 1
MOVJ VJ=80.00
MOVJ VJ=80.00
DOUT OGH#(13) B002
WAIT IF IN#(5)=ON
MOVL V=880.0
DOUT OT#(44) ON
TIMER T=3.0
MOVL V=880.0
MOVL V=880.0
MOVL V=880.00
MOVJ VJ=50.00 PL=1
TOOL : 00
STEP NO. : 0003
JOB
EDIT
DISPLAY
UTILITY
COPY
CUT
PASTE
REVERSE PASTE
Short Cut
Main Menu
JOB CONTENT
JOB NAMETEST01
CONTROL GROUPR1
0000
0001
0002
0003
0004
0005
0006
0007
0008
0009
0010
0011
0012
NOP
SET B000 0
SET B001 1
MOVJ VJ=80.00
MOVJ VJ=80.00
DOUT OGH#(13) B002
WAIT IF IN#(5)=ON
MOVL V=880.0
DOUT OT#(44) ON
TIMER T=3.0
MOVL V=880.0
MOVL V=880.0
MOVL V=880.00
MOVJ VJ=50.00 PL=1
TOOL : 00
STEP NO. : 0003
JOB EDIT DISPLAY UTILITY
COPY
CUT
PASTE
REVERSE PASTE
Delete?
NO
YES
118 of 493
