1 Introduction
1.2 Programming Pendant
1-4
149235-1CD
RE-CSO-A031

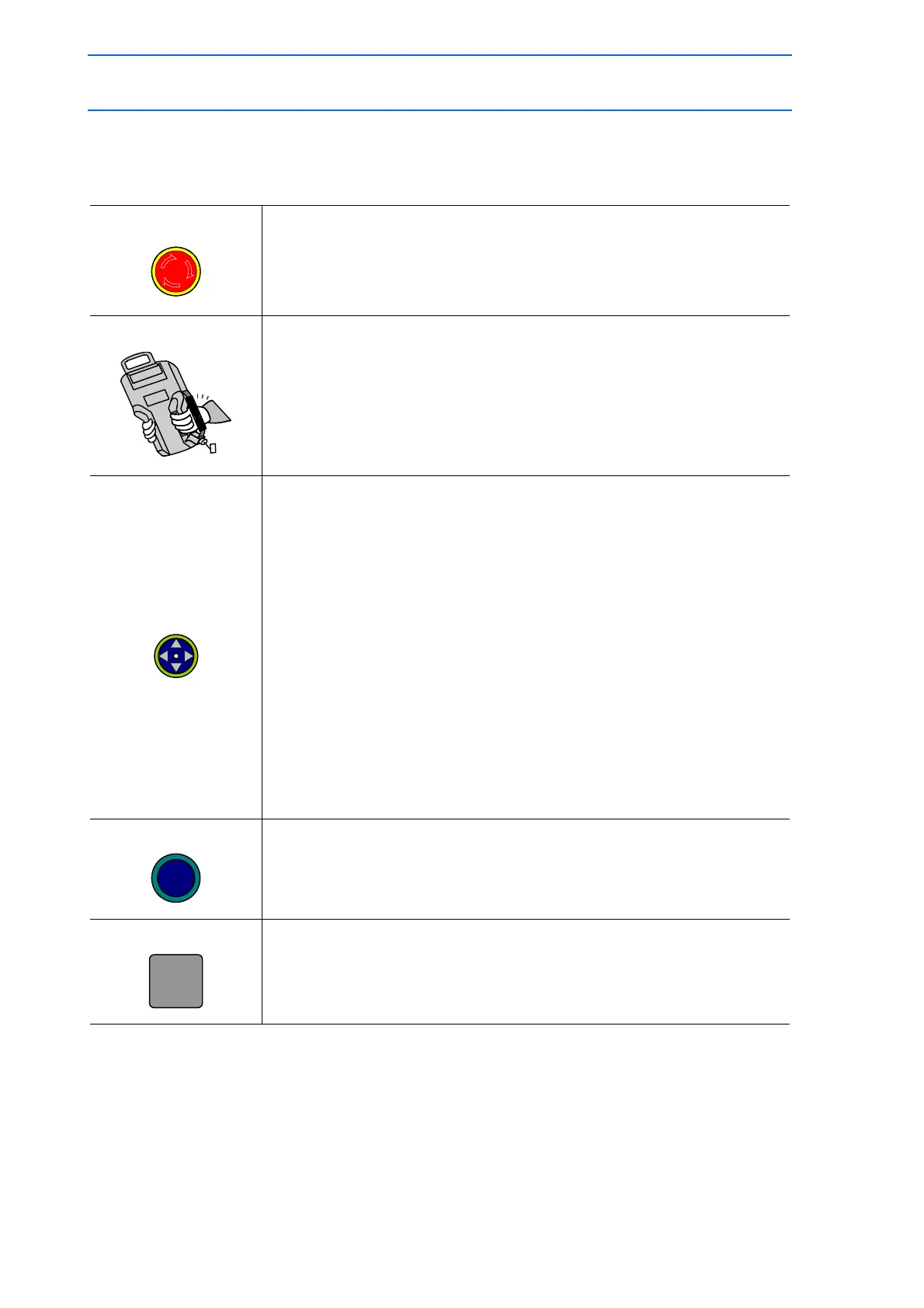

1.2.3 Programming Pendant Keys
E.STOP Button
Turns OFF the servo power.
When the servo power is turned OFF, the SERVO ON LED on the
programing pendant will extinguish.
An emergency stop message is displayed on the screen.
Enable Switch
Turns ON the servo power.
When the Enable switch is lightly squeezed while the SERVO ON LED is
blinking and the Mode Switch is set to “TEACH”, the power is turned ON.
And when this switch is released or firmly squeezed while the power is
turned ON, the power turns OFF.
Cursor
Moves the cursor in the direction of the arrow.
The size of the cursor and the range/place where the cursor can move will
vary depending on the window.
If the UP cursor button is pressed when the cursor is on the first line, the
cursor will move to the last line of the job. Conversely, if the cursor is on
the last line of the job and the DOWN cursor button is pressed, the cursor
will jump to the first line of the job.
• [SHIFT] + UP
Scrolls the screen upward.
• [SHIFT] + DOWN
Scrolls the screen downward.
• [SHIFT] + RIGHT
Scrolls the screen to the right.
• [SHIFT] + LEFT
Scrolls the screen to the left.
[SELECT]
Selects menu items such as main menu, pull-down menu,
etc.
[MAIN MENU]
Displays the main menu.
When pressed while the main menu is displayed, the main menu
disappears.
SELECT
MAIN
MENU
