YASKAWA NX100 User Manual

9 Arc Welding Application
9.5 Welding Condition Files
9-43
149235-1CD
RE-CSO-A031
9.5 Welding Condition Files
9.5.1 Welding Condition Files
A welding condition file stores welding conditions. Welding instructions can be easily programmed
using these files. There are the following three types of welding condition files.
• Arc start condition file (max. 396 files)
This file stores arc start conditions. Up to 396 arc start condition files can be registered.
• Arc end condition file (max. 396 files)
This file stores arc end conditions. Up to 396 arc end condition files can be registered.
• Arc auxiliary condition file (max. 4 files for each Power Source)
This file stores other conditions (Retry Func., Restart Func. and Wire Anti-stick Func.) for
each Power Source (up to 4 Power Sources can be connected).
The arc start condition file is set using the ARCON instruction and the arc end condition file is set using
the ARCOF instruction. Various function defined in the arc auxiliary condition file are referred to by
ARCON/ARCOF instructions or in arc start/end condition files. Also, the arc auxiliary files are shown in
three separate displays.

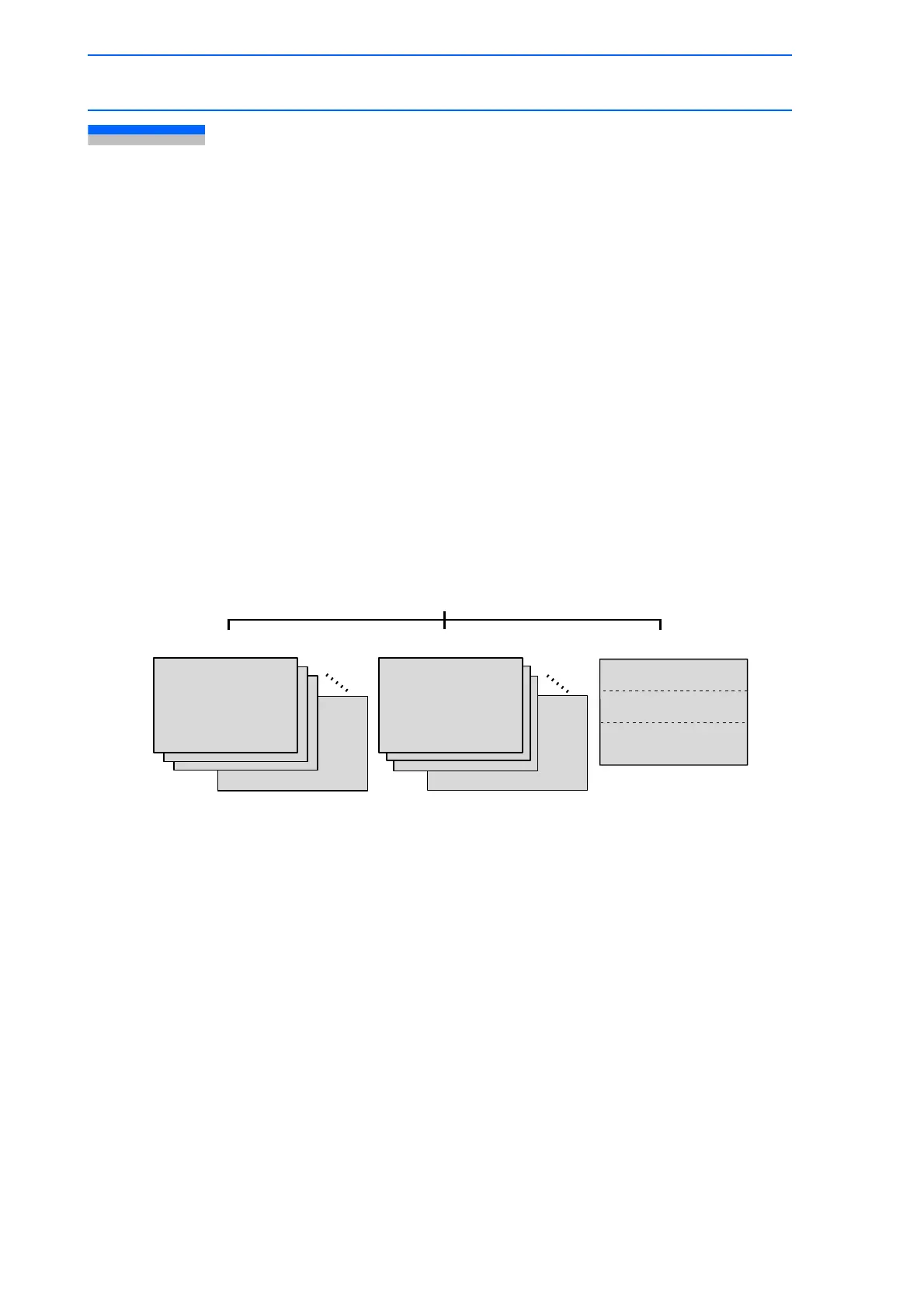

Welding Condition File
Condition No.396
Condition No.1
Condition No.396
Welding condition files
Condition No.1
Arc auxiliary condition file
Arc retry function setting
Arc restart function setting
Automatic wire anti-stick
function setting
Arc end condition fileArc start condition file
386 of 493
