YASKAWA NX100 User Manual

8 Parameter
8.4 Parameters according to Interference Area
8-30
149235-1CD
RE-CSO-A031
 S2C051 to S2C114: CUBE USING METHOD
These parameters specify the coordinates for defining the cube. If the user coordinates are selected,
also specify the user coordinate system numbers. Set cubic area referring to the cubic interference
areas shown below.
Coordinate No.: Specify the user coordinate number when selecting “3: User Coordinates.”
Units: 1μm
Coordinate specification
0 : Pulse (axis interference)
1 : Base coordinates
2 : Robot coordinates
3 : User coordinates

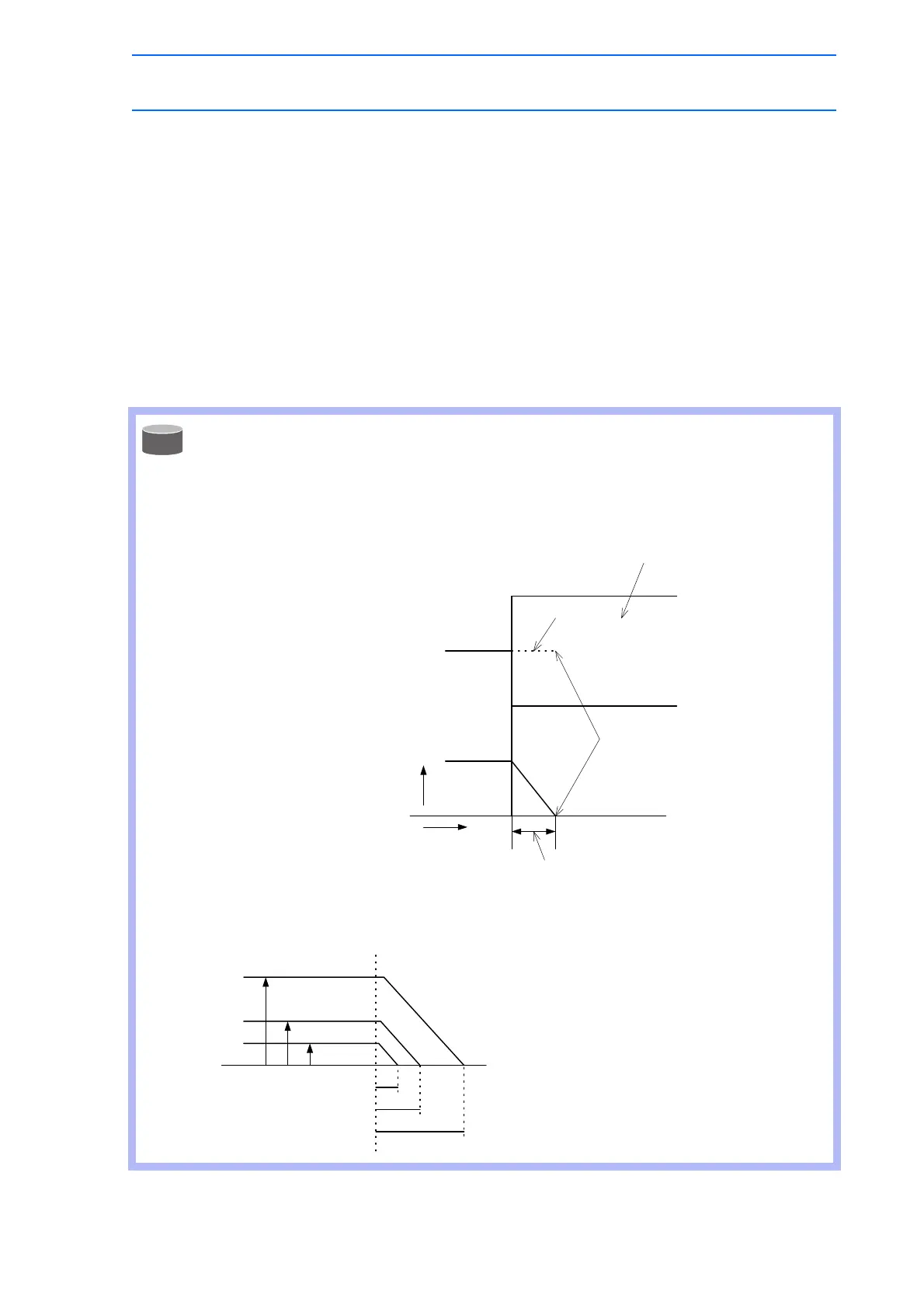

Precaution When Setting the Interference Area
It will be necessary to consider the following when setting the cubic interference and S-axis
interference areas. The manipulator is processed to decelerate to stop from the point
where it enters in the area. Therefore, set the areas in consideration of the amount of the
manipulator movement in the deceleration section shown in the figure below.
The move amount in the speed reduction section is dependent on the moving speed of the
manipulator at that time:
V = 1500mm/s  approx. 300mm (Max.)
V = 1000mm/s  approx. 160mm
V = 30mm/s  approx. 3 to 4 mm
V = 20mm/s  approx. 2mm
SUPPLE
-MENT
Stop
Deceleration
Interference area
Speed
Movement
Speed reduction section
319 of 493
