YASKAWA NX100 User Manual

1 Introduction
1.2 Programming Pendant
1-14
149235-1CD
RE-CSO-A031

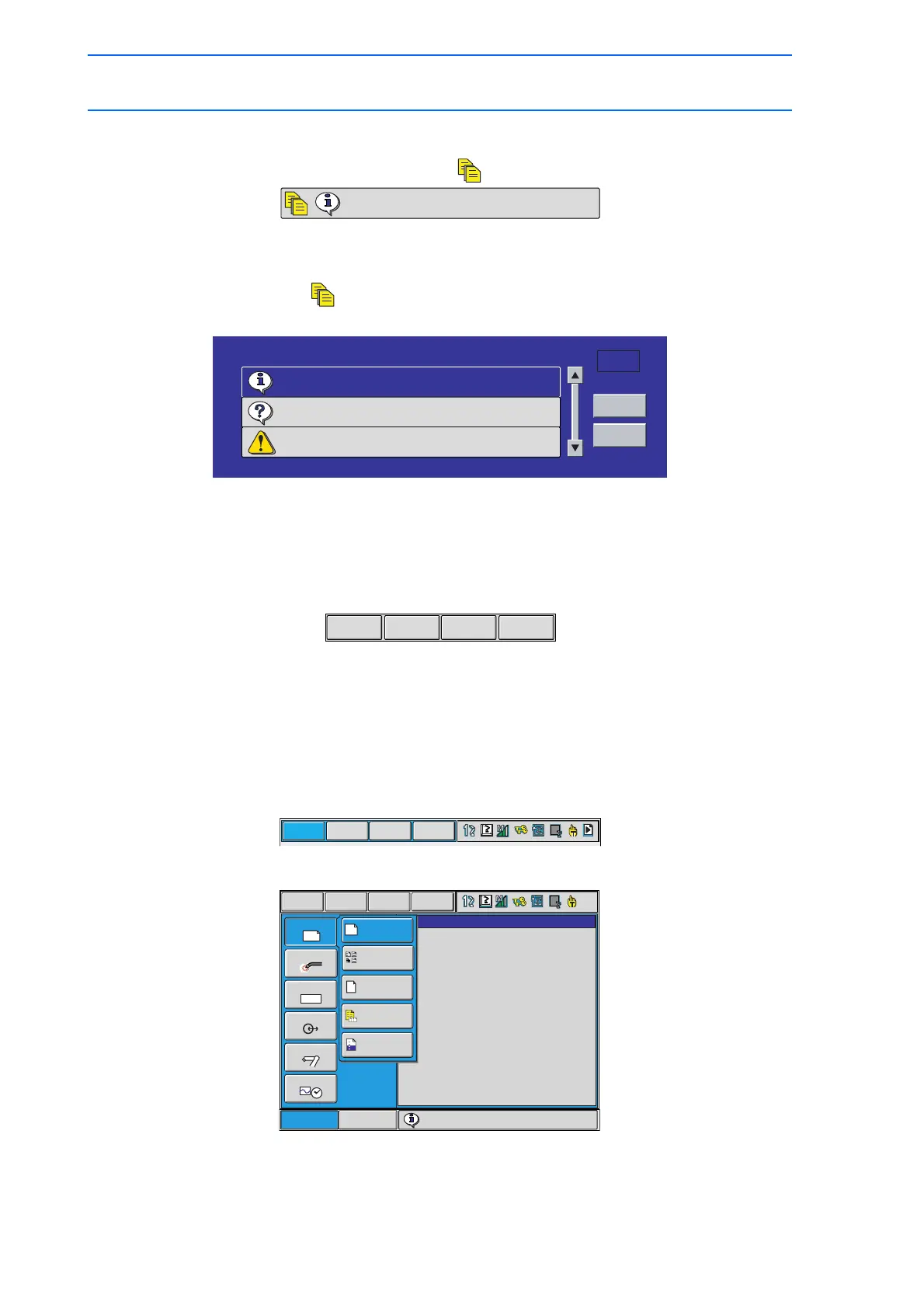

 Human Interface Display Area
When two or more errors or messages are displayed, appears in the human interface display area.
To view the list of current errors or messages, activate the human interface display area and press
[SELECT]. To close the error list, press [CANCEL].
When two or more errors occur, appears in the message display area. Activate the message
display area and press [SELECT] to view the list of current errors.
To close the error list, select “CLOSE” or press [CANCEL].
 Menu Area
The menu area is used to edit a job, manage jobs, and execute various utilities.
1.2.5 Screen Descriptions
 Denotation
The menu displayed in the programming pendant is denoted with { }.
The above menu items are denoted with {DATA}, {EDIT}, {DISPLAY}, AND {UTILITY}.
The pull-down menu commands are denoted in the same manner.
Turn on servo power
HELP
CLOSE
5 / 9
Cannot load macro job at current security mode
Cannot insert/modify/delete for group axis detachment
Cannot insert/modify/delete for axis detachment
DATA
EDIT DISPLAY
UTILITY
DATA EDIT DISPLAY
UTILITY
Short CutMain Menu
Turn on servo power
JOB
DOUT
MOVE
END
VARIABLE
B001
IN/OUT
In Out
ROBOT
SYSTEM INFO
CF
ARC WELDING
A
a
DATA EDIT
DISPLAY UTILITY
JOB
SELECT JOB
CREATE NEW JOB
MASTER JOB
JOB CAPACITY
DOUT
MOVE
END
38 of 493

YASKAWA NX100 Specifications

General

Manufacturer	YASKAWA
Model	NX100
Operating Temperature	0 to 45°C
Humidity	20 to 80% RH (non-condensing)
Communication Interfaces	Ethernet
Safety Standards	ISO 10218-1
Power Supply	200-230V AC, 50/60Hz
Storage Temperature	60°C
