YASKAWA NX100 - Registering Reserved Start I;O Signal

4 Playback
4.5 Playback with Reserved Start
4-24
149235-1CD
RE-CSO-A031

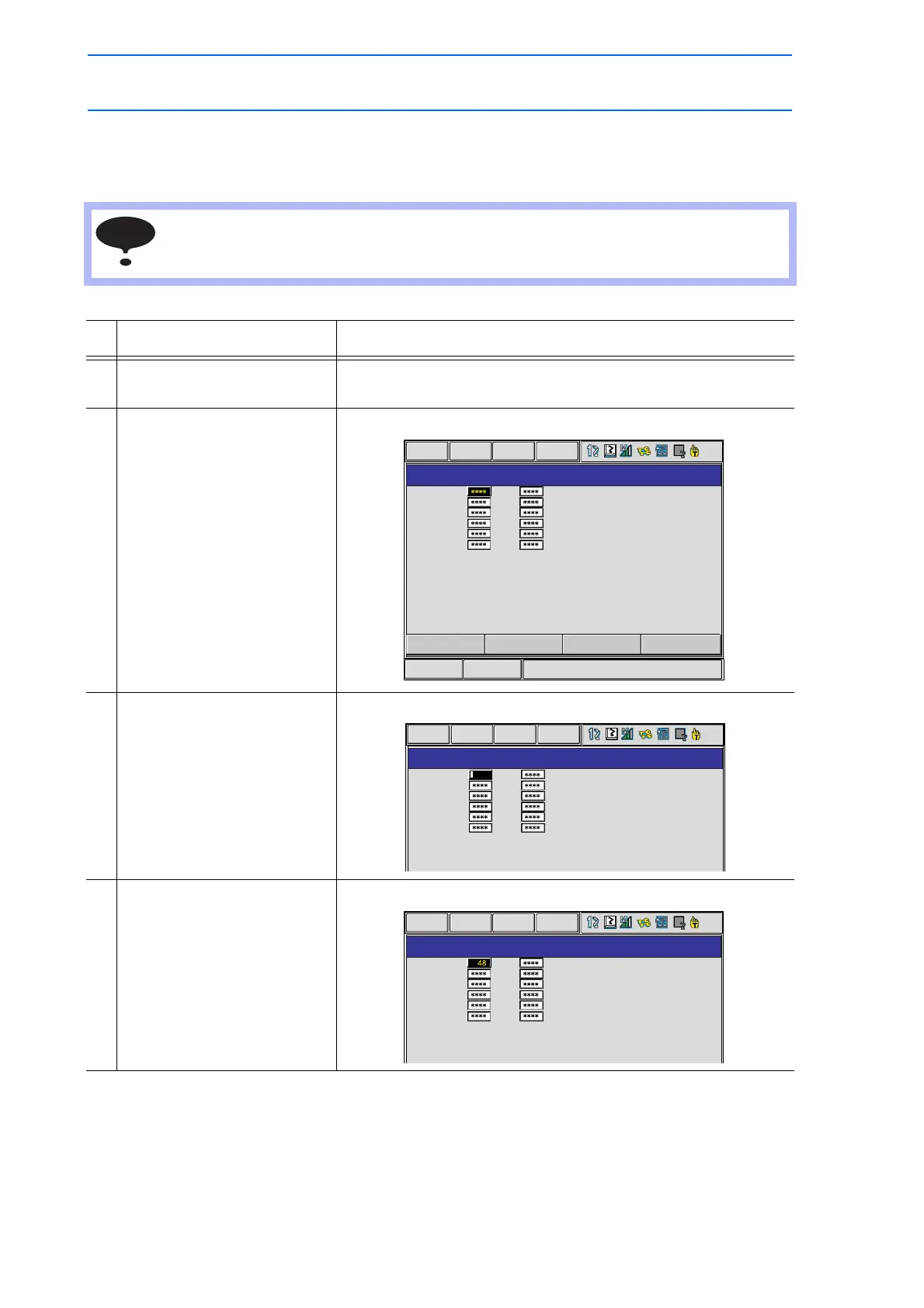

 Registering Reserved Start I/O Signal
Register the start I/O signal as a preparation to perform start operation from the station.
This operation can be done only when the operation mode is teach mode and the security
mode is management mode.
Operation Explanation
1 Select {SETUP} under the
main menu.
2 Select {RES. START(CNCT)}. The RESERVED START (CNCT) window appears.
3 Select “START IN” or “START
OUT” for each station.
The number can now be entered.
4 Input signal number and press
[ENTER].
The input/output signal number is registered.
NOTE
Short Cut
Main Menu
RESERVED START (CNCT)
1
2
3
4
5
6
START IN
START OUT
NO.
DATA EDIT
DISPLAY UTILITY
RESERVED START (CNCT)
1
2
3
4
5
6
START IN START OUTNO.
DATA
EDIT
DISPLAY UTILITY
RESERVED START (CNCT)
1
2
3
4
5
6
START IN START OUT NO.
DATA EDIT DISPLAY
UTILITY
