9 Arc Welding Application
9.1 Function Keys
9-1
149235-1CD
RE-CSO-A031
9 Arc Welding Application
9.1 Function Keys

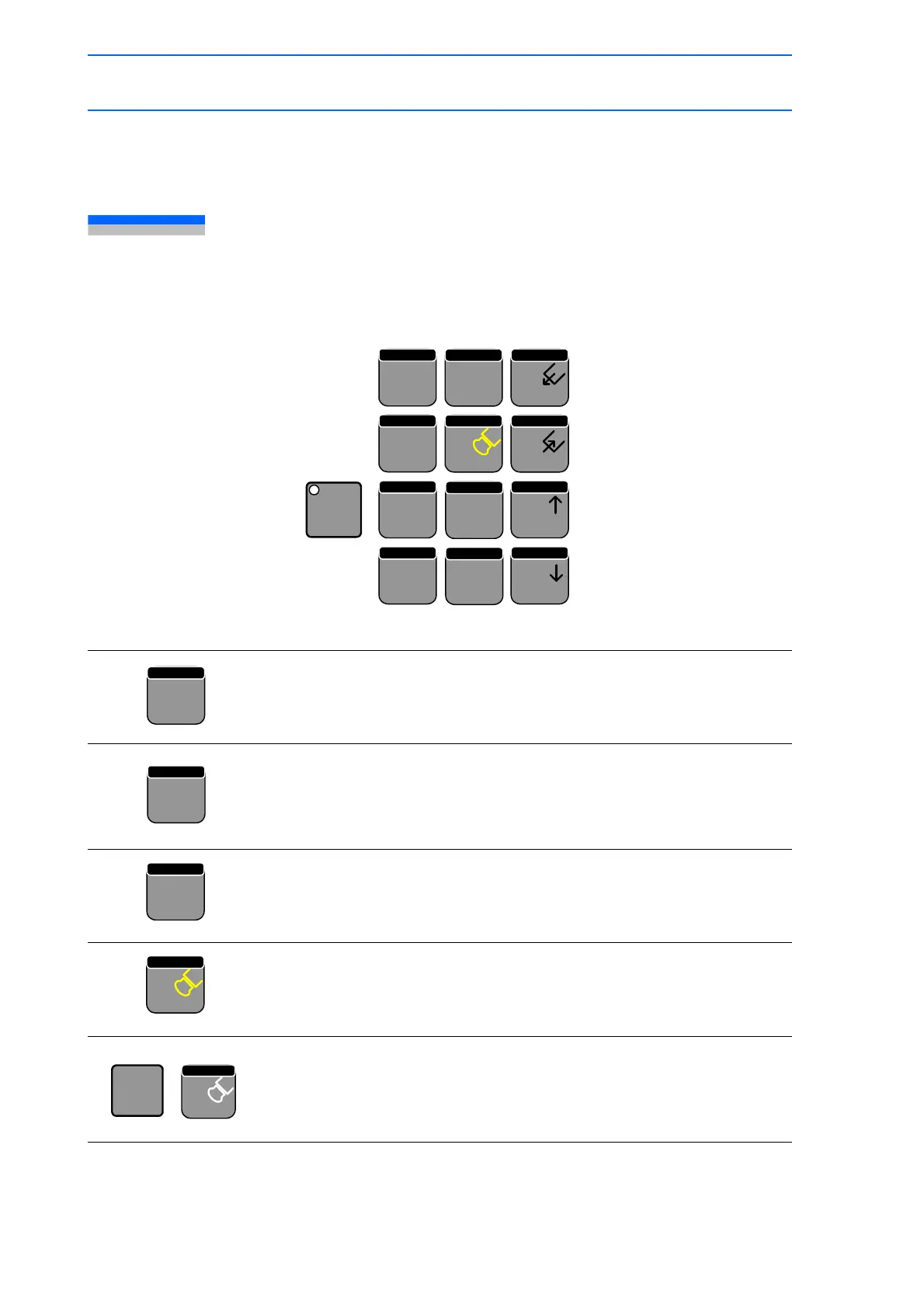

Each function used for arc welding is allocated on the Numeric keys of the programming pendant.
Registers a timer instruction “TIMER” in a job.
Registers a reference point “REFP” in a job, or modifies the registered
reference point.
[REFP] + [FWD]
Moves the manipulator to the registered reference point.
Registers a welding start instruction “ARCON.”
Registers a welding end instruction “ARCOFF.”
[INTERLOCK] + [5/GAS ARCOFF]
Used to turn ON/OFF the user available signal for the gas flow control.
(Refert to section 9.3.2 "Gas Flow Control Function".)
*This function is available for the standard software version NS3.97.00A
()-00 or later.
89
56
23
. -
CUR/VOL
RETRACT
FEED
CUR/VOL
ARCON
ARCOFF
GAS
1
0
REFP
TIMER
7
4
2
.
WELD
ON/OFF
1
TIMER
0
REFP
8
ARCON
5
ARCOFF
GAS
INTER
LOCK
5
ARCOFF
GAS
+
