9 Arc Welding Application
9.1 Function Keys
9-2
149235-1CD
RE-CSO-A031

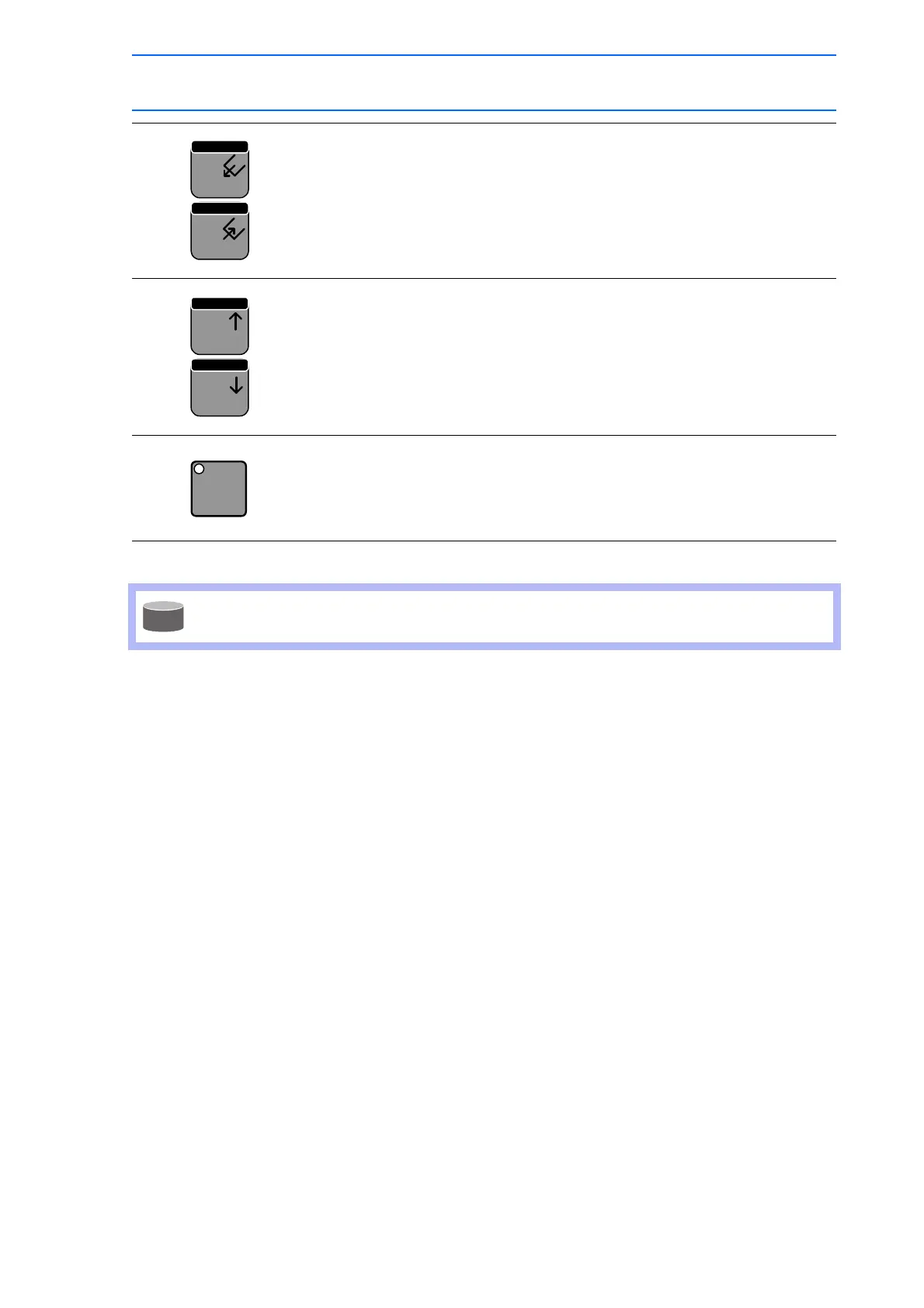

Used for wire inching. Press [FEED] to feed the wire, and press
[RETRACT] to retract the wire.
While these keys are pressed, the wire feed motor operates.
When the following are pressed simultaneously, wire inching is performed
in the high speed mode.
[HIGH SPEED] + [FEED]
[HIGH SPEED] + [RETRACT]
Modifies the welding current/voltage while welding during the play mode.
Press [3/CUR/VOL] to increase the current/voltage value, and press
[−/CUR/VOL] to decrease the current/voltage value.
(Refer to section 9.6 "Changing Welding Conditions During Playback" in
this manual.)
When [WELD ON/OFF] is pressed during teach mode, the LED is lit with a
beep sound, turning ON the system output signal “#50065: PERMISSIBLE
WORK IN TEST RUN“.
Welding can be executed during teach mode by the system output signal.
(Refer to section 9.3.3 "Welding Execution Function During Teach Mode".)
Wire retraction, high-speed inching, or high-speed retraction cannot be performed
depending on the Power Source.
