YASKAWA NX100 User Manual

7 External Memory Devices
7.3 Operation Flow
7-21
149235-1CD
RE-CSO-A031

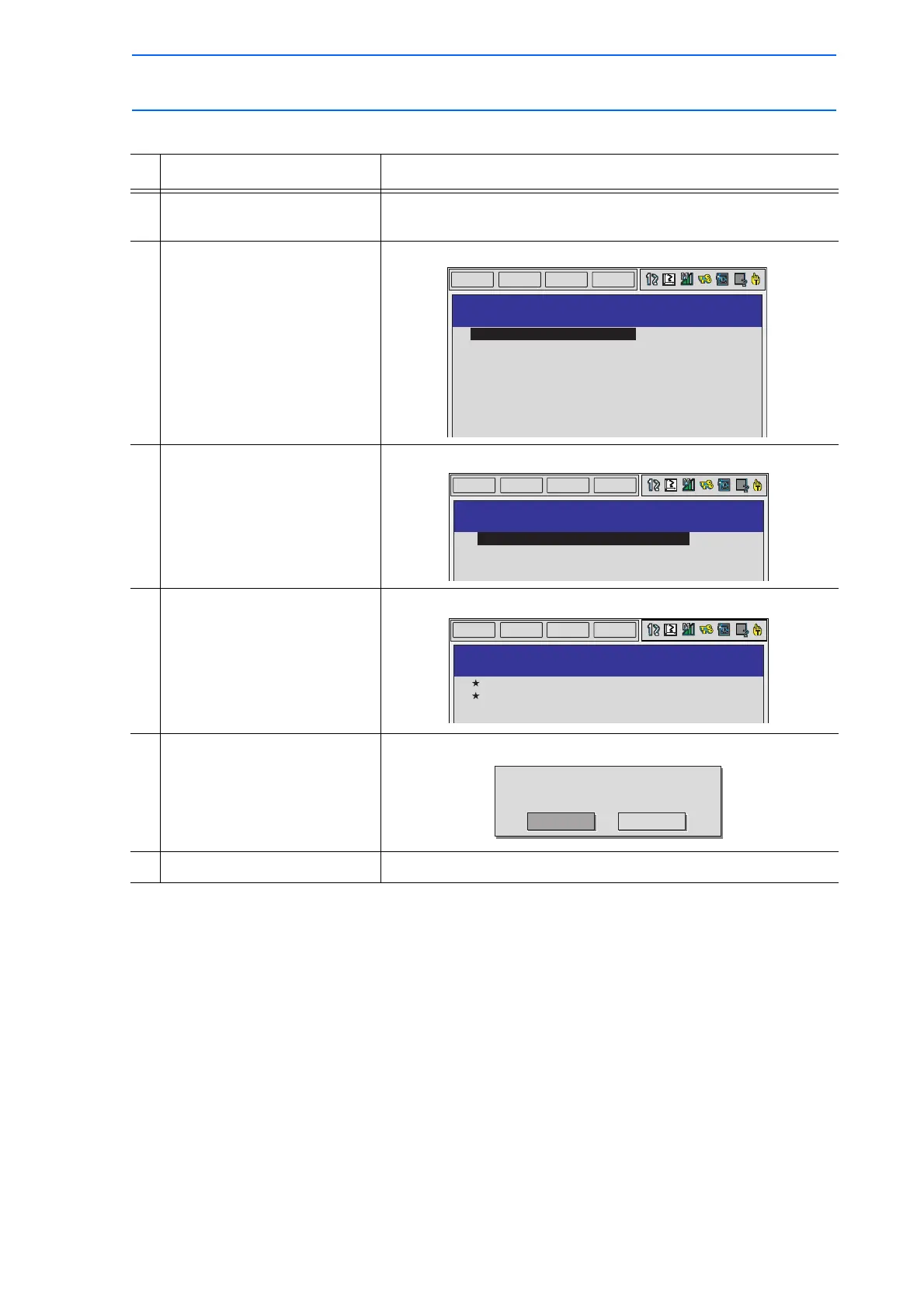

Saving I/O Data
Operation Explanation
1 Select {FD/PC CARD} under
the main menu.
2 Select {SAVE}. The following window appears.
3 Move the cursor to {I/O DATA}
and select.
The selection window for I/O data appears.
4 Select I/O data to be saved. The selected I/O data are marked with “.”
5 Press [ENTER]. The confirmation dialog box appears.
6 Select “YES.” The selected I/O data are saved.
DATA UTILITY
EDIT
DISPLAY
FLOPPY DISK/Compact Flash
CF (SAVE) UN-USED MEMORY 55.91 MB
FOLDER
 JOB
 FILE/GENERAL DATA
 BATCH USER MEMORY
 PARAMETER
 SYSTEM DATA
 I/O DATA
 BATCH CMOS
 ALL CMOS AREA
57
0
0
0
0
0
0
0
DATA
UTILITY
EDIT
DISPLAY
FLOPPY DISK/Compact Flash
CF(SAVE)
FOLDER
 C.IO PRGM
 IO NAME DATA
 SIMULATED IN DATA
CIOPRG
IONAME
PSEUDOIN
.LIST
.DAT
.DAT
DATA UTILITY
EDIT
DISPLAY
 C.IO PRGM
 IO NAME DATA
 SIMULATED IN DATA
CIOPRG
IONAME
PSEUDOIN
.LIST
.DAT
.DAT
FLOPPY DISK/Compact Flash
CF(SAVE)
FOLDER
YES
Save?
NO
265 of 493
