YASKAWA NX100 User Manual

7 External Memory Devices
7.3 Operation Flow
7-22
149235-1CD
RE-CSO-A031
Saving System Data

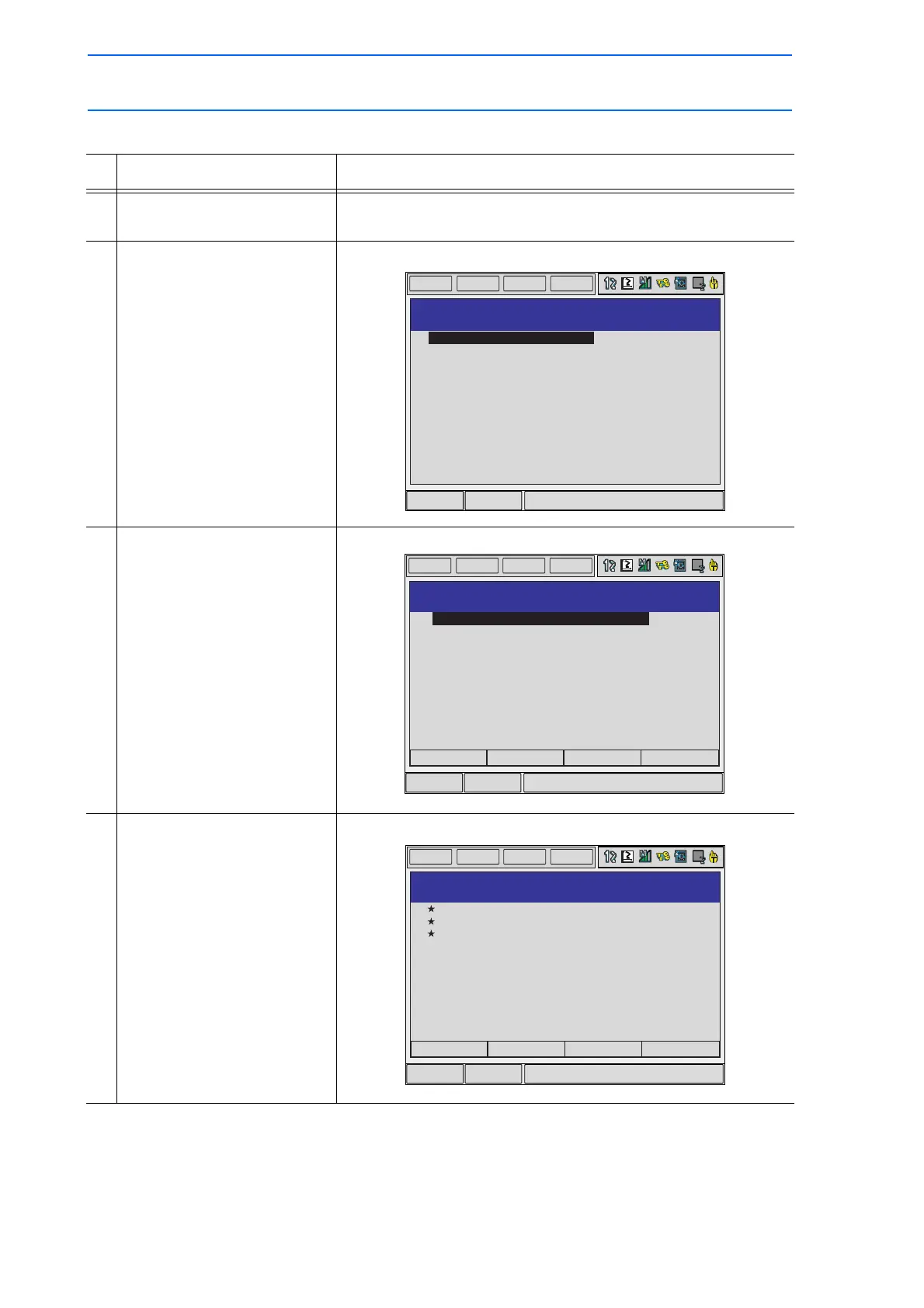

Operation Explanation
1 Select {FD/PC CARD} under
the main menu.
2 Select {SAVE}. The following window appears.
3 Move the cursor to {SYSTEM
DATA} and select.
The selection window for system data appears.
4 Select system data to be
saved.
The selected system data are marked with “.”
DATA UTILITY
EDIT
DISPLAY
Main Menu ShortCut
FLOPPY DISK/Compact Flash
CF (SAVE) UN-USED MEMORY 55.91 MB
FOLDER
 JOB
 FILE/GENERAL DATA
 BATCH USER MEMORY
 PARAMETER
 SYSTEM DATA
 I/O DATA
 BATCH CMOS
 ALL CMOS AREA
57
0
0
0
0
0
0
0
DATA UTILITY
EDIT
DISPLAY
Main Menu ShortCut
FLOPPY DISK/Compact Flash
CF(SAVE)
FOLDER
 USER WORD
 SV MONITOR SIGNAL
 SECOND HOME POSITION
 ALARM HISTORY DATA
 HOME POS CALIB DATA
 SYSTEM INFORMATION
 OPERATION ORG POS DATA
 I/O MESSAGE HISTORY DATA
 KEY ALLOCATION DATA
UWORD
SVMON
HOME2
ALMHIST
ABSO
SYSTEM
OPEORG
IOMSGHST
KEYALLOC
.DAT
.DAT
.DAT
.DAT
.DAT
.SYS
.DAT
.DAT
.DAT
DATA UTILITY
EDIT
DISPLAY
Main Menu ShortCut
 USER WORD
 SV MONITOR SIGNAL
 SECOND HOME POSITION
 ALARM HISTORY DATA
 HOME POS CALIB DATA
 SYSTEM INFORMATION
 OPERATION ORG POS DATA
 I/O MESSAGE HISTORY DATA
 KEY ALLOCATION DATA
UWORD
SVMON
HOME2
ALMHIST
ABSO
SYSTEM
OPEORG
IOMSGHST
KEYALLOC
.DAT
.DAT
.DAT
.DAT
.DAT
.SYS
.DAT
.DAT
.DAT
FLOPPY DISK/Compact Flash
CF(SAVE)
FOLDER
266 of 493
